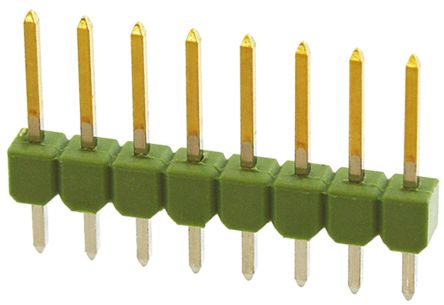

826629-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAWAY 8POS AU TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 1X08 POS VERT AU Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway8 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, 1ROW, 8WAY 8wSinglerowstraightheadergold Pin header; pin strips; AMPMODU MOD II; male; PIN:8; straight Pin header 1 x 8P, 826629-8, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (1排) 直 引脚管座, 焊接端接, 3A , 通孔 AMPMODU II HEADER |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 最大额定电流 | 3A |
机械参数
| 颜色 | Green | 深度 | 2.5 mm |
| 间距 | 2.54 mm | 高度 | 9.5 mm |
| 重量 | 0.053 | 包装方式 | Bulk |
| 方向 | straight | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 外壳颜色 | Green | 安装类型 | Vertical |
| 连接器类型 | Breakaway | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 1 |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Polyester | 总长度 | 20.32 mm |
| 安装特性 | Without | 包装数量 | 500 |
| 面板安装类型 | Without | 连接器 - 电缆 | pin header |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 柱体长度（配合） | 6.7 mm |
| 接触长度 - 配合 | 6.70 [0.264] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | 31.5µin (0.80µm) |
| 外部壳体材料 | :Green, glass filled polyester | 触点材料 - 镀层 | gold plated |
| 第一连接器安装特征 | 1x8 | ||
产品信息
| SPG | 1 | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU |
| 制造商全称 | AMP | 产品子类型 | Header |
| 适配器系列 | AMPMODU MOD II | 单元数量 | 1 |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 温度 | No | 工作温度 | -65C to 105C |
文档与媒体
