280359
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS SINGLE ROW 4 way 1 row MODU crimp socket shell Headers & Wire Housings SINGLE ROW 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 4WAY 4way1rowMODUcrimpsocketshell Plug; wire-board; female; PIN:4; w/o terminals; 2.54mm; for cable Crimp housing 1 x 4P, 280359, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm 节距 4 路 直 母 PCB 壳体 AMP MODU, SINGLE ROW CONT 4 P |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-1 | ||
电气参数
| 开关功能 | Detent Latching | 最大额定电流 | 3/Contact A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Black | 深度 | 13.7mm |
| 间距 | 2.54 mm | 宽度 | 4.8mm |
| 高度 | 4.8 mm | 长度 | 12.2mm |
| 重量 | 0.001001 | 材料（通用） | :Thermoplastic (PPO) |
| 包装方式 | Bulk | 导线线规 | 22-30 AWG |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 柱间距 | 2.54 [.100] | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 锁定特性 | Detent Latching | 壳体材料 | Thermoplastic |
| 总长度 | 12.2 mm | 包装数量 | 1,000 |
| 主要材料 | Connector | 连接器 - 电缆 | plug |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 配接方向 | With |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 1000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Mod II (Italian Range) | 预加载 | No |
| 编码、键控 | No | 制造商全称 | AMPMODU |
| 产品子类型 | Housing | 适配器系列 | AMPMODU MOD II |
| 单元数量 | 1 | 适用产品/相关产品 | Centerline Mod II Connector |
环境参数
| 工作温度 | -65C to 105C | ||
文档与媒体
相关型号
182206-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT SOCKET FOR 280358 MODU tin shrouded crimp 26-22 Headers & Wire Housings MOD 2 TERMINAL Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .89 - 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, 26-22AWG, CRIMP MODUtinshroudedcrimp26-22 Contact; female; 22÷26AWG; AMPMODU MOD II; tinned; 2.54mm TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀锡触点 MOD 2 TERMINAL
181270-2
te connectivity / amp
Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece .100 AMPMODU Headers, Housings & Contacts CONTACT RCPT CRIMP 26-22AWG GOLD Mod II Crimp Terminal, Gold, 26-22 AWG Headers & Wire Housings MOD II CONTACT LP RCPT 26-22 AWG 15 AU Crimp Terminal 22-26AWG F 12.65mm 2.2mm Gold Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.65 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, SOCKET, AWG26-22 Crimpterminal,26-22awg Contact; female; 22÷26AWG; AMPMODU MOD II; gold plated; crimped Crimp socket 3 A Female 26...22 AWG, 181270-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 母 压接接线端子, 压接, 镀金镀镍触点 MOD II CONTACT L.P.
280378-2
te connectivity / amp

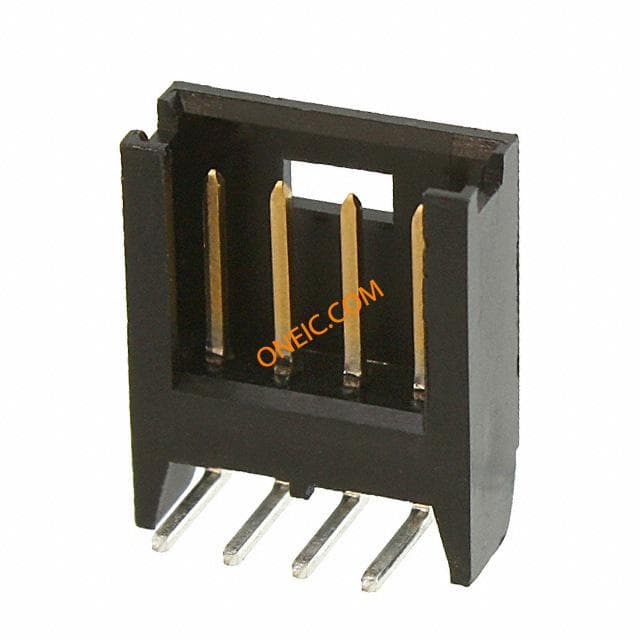

Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings 4P HDR SHROUDED 15AU Conn Wire to Board HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = Single4 PositionsMating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 4WAYSINGLEROWR/A Socket; wire-board; male; PIN:4; 2.54mm; THT; AMPMODU MOD II PCB header 1 x 4P, 280378-2, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接 , 通孔 4P MODU II SHRD HDR, RT ANG, 0.38AU
280371-1
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Carton .100 inch AMPMODU Headers CONN HEADER 4POS TIN .100 TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings 4P HDR SHROUDED TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Carton Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, CONNECTOR, HEADER, THT, 2.54MM, 4WAY 4waysinglerowtin Socket; wire-board; male; PIN:4; 2.54mm; THT; AMPMODU MOD II TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 4P AMPMODU II SHRD HDR, ST, TIN
1241150-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack .100 inch AMPMODU Headers CONN HEADER 4POS .100 SMT GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4P SINGLE ROW Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.80 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SMT, 4WAY MODUSMTheadersinglerow,4W Pin header 1 x 4P, 1241150-4, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 引脚管座, 焊接端接, 3A , 表面安装 4P MOD II BREAK AWAY HDR , SMD, BLISTER
826629-4
te connectivity / amp

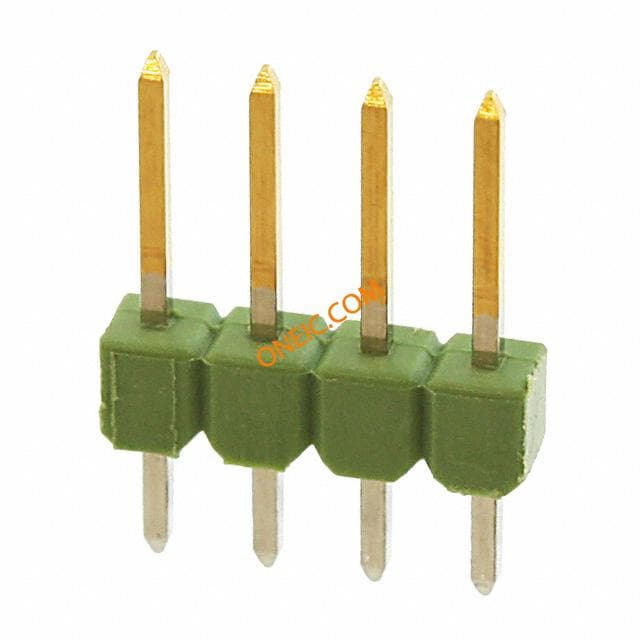

Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAWAY 4POS AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4P SINGLE ROW Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Breakaway4 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, 1ROW, 4WAY 4wSinglerowstraightheadergold Pin header 1 x 4P, 826629-4, TE Connectivity TE Connectivity AMPMODU Mod II 系列 4路 2.54mm节距 (1排) 直 引脚管座 , 焊接端接, 3A, 通孔 4P AMPMODU II PIN HSG
