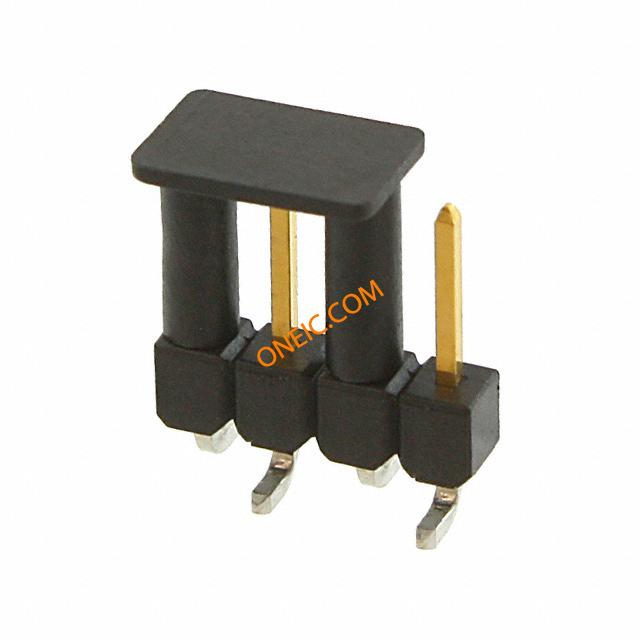

1241150-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack .100 inch AMPMODU Headers CONN HEADER 4POS .100 SMT GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 4P SINGLE ROW Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Blister Pack Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.80 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SMT, 4WAY MODUSMTheadersinglerow,4W Pin header 1 x 4P, 1241150-4, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 引脚管座, 焊接端接, 3A , 表面安装 4P MOD II BREAK AWAY HDR , SMD, BLISTER |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A106627TR |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 375 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C | 认证机构 | :UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | :250V | 极数 | :4 |
| 工作电压 | :250V | 最大额定电流 | 3A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0.001 | 包装方式 | Tape & Reel (TR) |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 连接器类型 | Breakaway |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | PCT Polyester |
| 安装特性 | Without | 包装数量 | Blister Pack |
| 面板安装类型 | Without | 主要材料 | BoardtoBoardorWiretoBoard |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | SMD |
| 第一触头极性 | Pin (Male) | 触点数 | 4 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 4 |
| 柱体长度（配合） | 5.8 mm | 接触长度 - 配合 | 5.80 [0.228] |
| 表面贴装焊盘尺寸 | Yes | 接触镀层厚度 | 31.5µin (0.80µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 温度 | No | 工作温度 | :105°C |
文档与媒体
相关型号
141603-3
te connectivity / amp
