1658612-1

点击放大查看

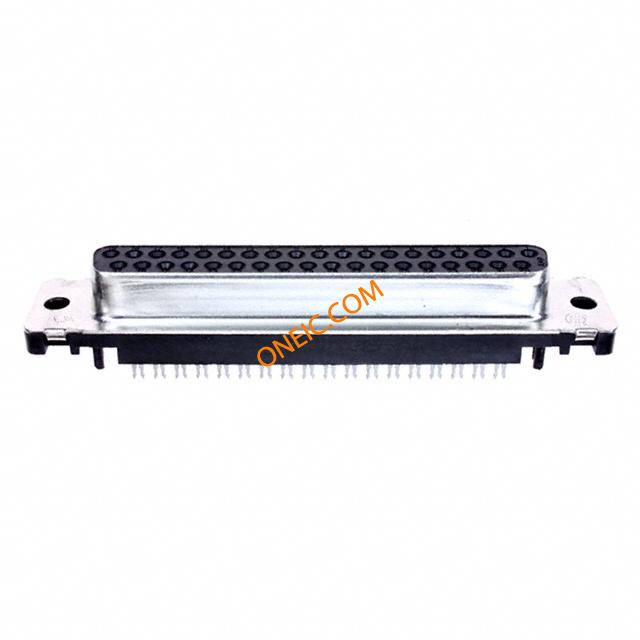

1658612-1

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 37 POS 2.77mm IDT RA Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors LPM RECEPTACLE 37P Standard Cable Connectors CONN D-SUB RECEPT 37POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,37 way Conn D-Subminiature SKT 37 POS 2.77mm IDT RA Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 37ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, METAL, 37WAY Conn;D-Ribbon;CableSocket;37Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell TE Connectivity AMPLIMITE HDF-20 系列 2.77mm 节距 37 路 IDC D-Sub 带状电缆连接器, 插座, 钢外壳 37 POS HDF RCPT, MS, LEAD FREE
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Not relevant for lead free process
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDF-20 Series额定电压250 V ac
接触电阻:25mohm最大额定电流1.25A
最小供电电压250VAC触点额定电流:1.25A

机械参数

颜色Black深度12.59mm
间距2.77 mm宽度18.61mm
高度18.61 mm长度69.39mm
重量0.0014材料（通用）:Black Thermoplastic
包装方式Tube电缆类型Ribbon Cable
外壳尺寸4端接方式IDT
触点尺寸20触头类型Signal
第二连接器With电缆开口747275-1
安装类型Cable Mount外壳镀层Bright Tin
连接器类型Insulation Displacement Crimp (IDC)接触镀层Gold
法兰特征Housing/Shell (Unthreaded)安装样式Wire
排数2外壳材料（壳体）Steel
连接器样式D-Sub锁定特性Mounting Holes
本体材料:Metal外形（宽 x 高）Low
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度69.39 mm尺寸/外形69.39 x 18.61 x 12.59mm
接地凹痕Without端接样式IDC
触点数37接触件端接:IDC / IDT
绝缘直径0.81 – 0.97 [0.032 – 0.038]位数37
外壳尺寸-插件Front Metal Shell外壳材料及表面处理Steel, Tin Plated
接触镀层厚度30µin (0.76µm)外部壳体材料Thermoplastic
线规或范围 - AWG0.08 - 0.15 [28-26]第一连接器安装类型:Cable
外壳尺寸，连接器布局4 (DC, C)

产品信息

备注All plug assemblies are supplied with housing and cover preassembled类型D-Subminiature
等级Standard连接器性别SKT
系列HDF-20 (Ribbon Cable)产品特性Feed Through
CAD图纸3D CAD Model对数747275-1
产品子类型Connector端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

PDF 文档
1639165.pdf
