点击放大查看

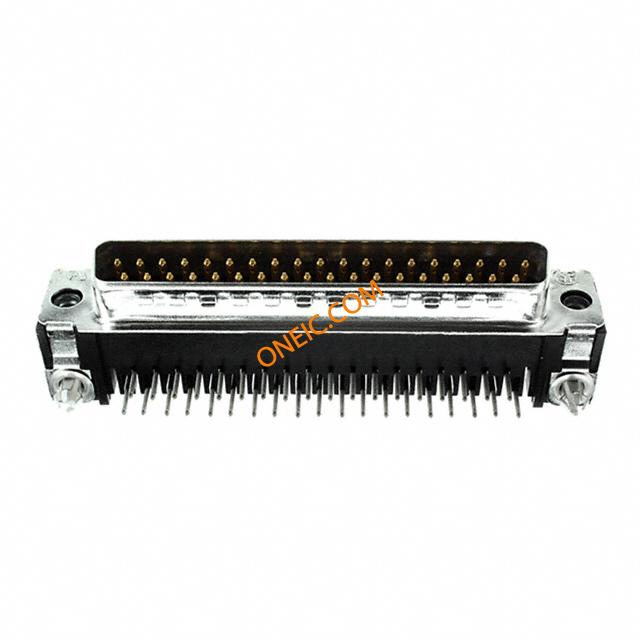

5747843-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.77mm Solder RA Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors PLUG FRNT MTL SHL 37 Standard Board Mount Connectors CONN D-SUB PLUG R/A 37POS GOLD Conn D-Subminiature PIN 37 POS 2.77mm Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37PlugPCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn;D-Sub;PCBPlug;37Pos;RTAng;HD-20Series;20AWG;FrontMetalShell D-Sub male 37P, 5747843-4, TE Connectivity 37 MSFL PLUG RA 318 (IN,FM,BL) |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 52 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 18.8 mm |
| 间距 | 2.77 mm | 高度 | 12.55 mm |
| 密封型 | No | 重量 | 0.009 |
| 镀层 | Tin over Nickel | 包装方式 | Tray |
| 外壳尺寸 | 4 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 触点形状 | Round | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 接地类型 | With | 尖端材料（笔尖） | Tin over Copper Flash |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 [1.57] |
| 连接器样式 | D-Sub | 插入件材料 | Zinc |
| 锁定特性 | Threaded Insert, 4-40 UNC | 本体材料 | :Metal |
| 材料表面处理 | Clear Chromate | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Nylon|Polyester |
| 总长度 | 69.32 mm | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | With |
| 外形尺寸 长x宽x高 | 8.08 [.318] | 端接样式 | Solder |
| 第一触头极性 | PIN | 连接器颜色 | None |
| 触点数 | 37 | 接触件端接 | :Through Hole Vertical |
| 位数 | 37 | 外壳尺寸-插件 | Front Metal Shell |
| 安装孔直径 | 3.18 [.125] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Board Lock, Grounding Indents | 制造商全称 | AMP |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
