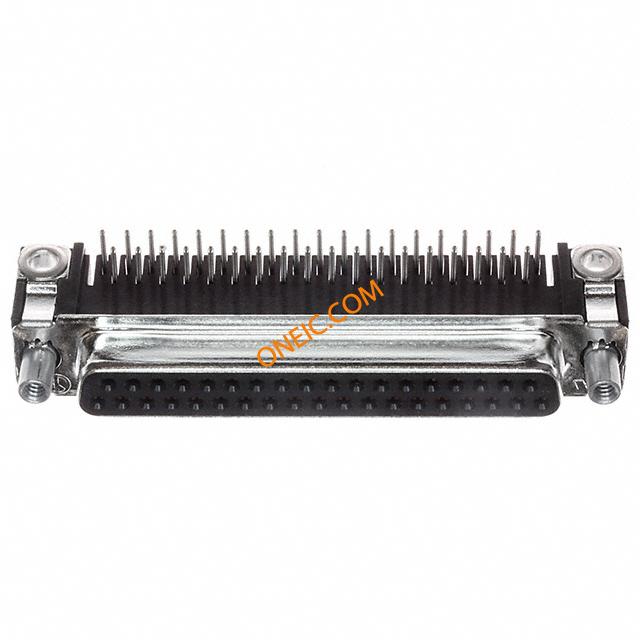

5745784-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.76mm Solder RA Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37 MSFL RCPT RA 318 (SL FM) Standard Board Mount Connectors CONN D-SUB RCPT R/A 37POS 30GOLD 37 MSFL RCPT RA 318 (SL,FM) 37 MSFL RCPT RA 318 (SL,FM) Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 37POS, RCPT TE Connectivity Amplimite HD-20 系列 2.844mm 节距 37 路 直角 通孔安装 PCB D-sub 连接器 插座 |
| 分类 |
商业参数
| 标准包装规格 | 52 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 52 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HD-20 Series |
| 额定电压 | 125V | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 高度 | 0.494 in |
| 密封型 | No | 重量 | 0.014 |
| 包装方式 | Tray | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 触点形状 | Round |
| 安装类型 | Right Angle | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | With |
| 尖端材料（笔尖） | Tin | 安装样式 | SMD/SMT |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 锁定特性 | Female Screwlocks, Fixed | 本体材料 | :Metal |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 面板安装类型 | Without |
| 尺寸/外形 | 0.66 [.026] | 接地凹痕 | Without |
| 外形尺寸 长x宽x高 | 8.08 [.318] | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 37 |
| 接触件端接 | :Through Hole Vertical | 位数 | 37 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | 30µin (0.76µm) | 螺钉材料 - 镀层 | Clear Chromate |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 连接器性别 | Female |
| 系列 | HD-20 | 产品特性 | Ground Strap |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
