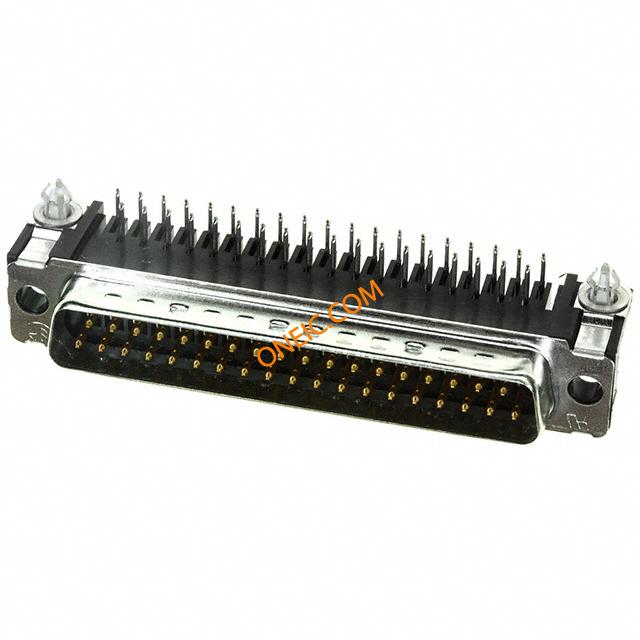

6-747843-7

点击放大查看

6-747843-7

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 37 POS 2.75mm Solder RA Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37P RA MSFL 318 PLUG Standard Board Mount Connectors CONN D-SUB PLUG R/A 37POS AU PCB Conn D-Subminiature PIN 37 POS 2.75mm Solder RA Thru-Hole 37 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 37P RA MSFL 318 PLUG
分类
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Trays
工厂包装数量52

合规参数

RoHSRoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
标准编号UL E28476RoHS/ELV合规状态ELV compliant, 5 of 6 Compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without额定电压125V
最大额定电流6A

机械参数

颜色Black间距2.75 mm
密封型No外形尺寸(长x宽)4
镀层Tin over Nickel锁定类型不带
包装方式Tray屏蔽是
壳体颜色黑色引脚样式圆形, 圆形
外壳尺寸4端接方式Solder
触头类型Signal外壳表面处理锡
第二连接器Without触点形状Round
安装类型Through Hole外壳镀层Tin
连接器类型Plug, Male Pins接触镀层Gold
法兰特征Housing/Shell (Unthreaded)接地类型With
尖端材料（笔尖）Tin over Copper Flash安装样式Through Hole
排数2壳体镀层镀锡铜薄层
外壳材料（壳体）Steel电路板厚度0.062 [1.57]
连接器样式D-Sub插入件材料黄铜
磁芯材质黄铜外形（宽 x 高）Standard
触头材料Brass壳体材料Thermoplastic
安装特性板锁包装数量52
面板安装类型Without尺寸/外形0.66 [.026]
接地凹痕With外形尺寸 长x宽x高8.08 [.318]
端接样式Through Hole连接器颜色None
外径.66 mm [ .026 in ]触点数37
位数37外壳尺寸-插件Front Metal Shell
安装孔直径3.18 [.125]外壳材料及表面处理Steel, Tin Plated
端子柱长度3.18 [0.125]接触镀层厚度Flash
外壳与棱镜材料否后壳材料及镀层镍打底镀锡
外壳尺寸，连接器布局4 (DC, C)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
料盒尺寸8.08 mm [ .318 in ]产品特性Board Lock, Grounding Indents
可密封否制造商全称AMP
预装是产品子类型连接器
其他规格是

环境参数

工作温度-55°C ~ 105°C封装热阻1.57 mm [ .062 in ]
