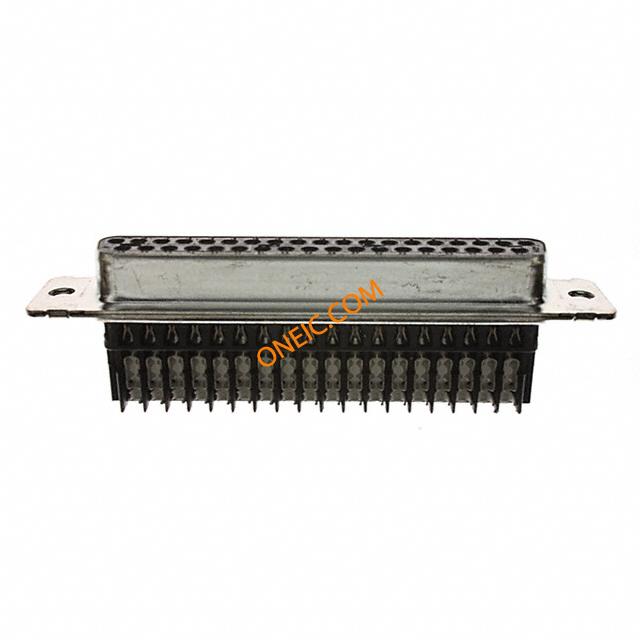

1-745497-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.76mm Crimp ST Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors DSUB C37S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RCPT 37P 22-26AWG AU Conn D-Subminiature SKT 37 POS 2.76mm Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 37ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, DSUB, 37WAY Conn;D-Sub;CableSocket;37Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell D-Sub female 37P, 1-745497-5, TE Connectivity 37 HDE MS RCPT,22-26,LEAD FREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 56 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDF-20 Series | 额定电压 | 250V |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 21.71 mm |
| 间距 | 2.76 mm | 高度 | 12.92 mm |
| 重量 | 0.004 | 包装方式 | Tray |
| 电缆类型 | Discrete Wire, Round Jacketed Cable | 绝缘类型 | Insulated |
| 外壳尺寸 | 4 | 导线线规 | 26-22 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 锁定特性 | Mounting Holes | 本体材料 | :Metal |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic, Glass Filled |
| 总长度 | 69.69 mm | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | Crimp |
| 触点数 | 37 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 1.52 [0.060] | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - mm² | 0.15 - 0.40 [26-22] |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDE-20 | 制造商全称 | HDE-20 |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
