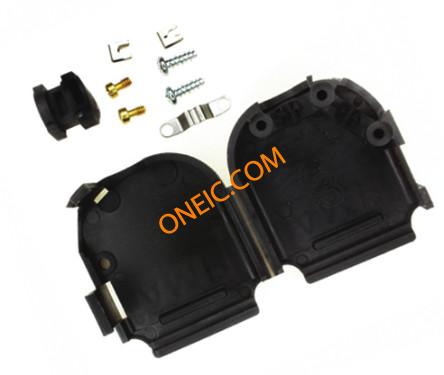

点击放大查看
5749916-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell/Cable Clamp Polypropylene Individual Kit D-Sub Backshells C CABLE CLAMP Cable Clamps CONN BACKSHELL DB37 PLASTIC Hood,D-Sub,37Pos,Straight/120Deg,AMP Backshell/Cable Clamp 120�/180� 4 Shell Size Polypropylene Individual Backshell/Cable Clamp 120°/180° 4 Shell Size Polypropylene Individual Backshell/Cable Clamp 120°/180° 4 Shell Size Polypropylene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = One-Piece Quick SnapStraight(180°)/120° Cable Exit AngleCable Insulation Diameter = 6.35 - 13.97 mmShell Size = 4Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub Hood;D-Sub;37Pos;Straight/120Deg;AMP;Polypropylene;0.255-0.550In.CblDia AMPLI CABLE CLAMP KIT,SZ 4 |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 120, 180 | ||
机械参数
| 颜色 | Black | 外形尺寸(长x宽) | 4 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/120° |
| 电缆类型 | Round | 外壳尺寸 | 4 |
| 导线线规 | 聚丙烯 | 屏蔽类型 | No |
| 螺纹尺寸 | None | 安装类型 | 120 °, Straight |
| 外壳镀层 | None | 线径 | 6.35 – 13.97 mm [ .25 – .55 in ] |
| 电缆直径 | 0.250-0.550In. | 电缆端类型 | Variable Entries |
| 电缆材料 | Polypropylene | 外壳材料（壳体） | Polypropylene |
| 屏蔽材料 | 无 | 壳体材料 | PP |
| 包装数量 | Individual Kit | 电缆端接方式 | One-Piece Quick Snap |
| 端接样式 | 单件式快拍相机 | 触点数 | 37 |
| 绝缘直径 | 6.35 â 13.97 [0.250 â 0.550] | 位数 | 37 |
| 衬套/护套类型 | Without | 电缆对数 | 2 |
| 后壳材料及镀层 | Polypropylene | 控制侧电缆固定器 | With |
产品信息
| 备注 | Kit Contains: 1 Hinged Cable Clamp, 2 Self-tapping Screws, 1 Strain Relief Clip | 类型 | Backshell/Cable Clamp |
| 产品特性 | Assembly Kit | 硬件配件 | Assembly Hardware, Strain Relief |
| 制造商全称 | AMP | 产品子类型 | Backshell/Cable Clamp |
| 附件类型 | Hinged Backshell | 射频系列/标准 | 5749916 |
| 适用产品/相关产品 | 749916-1749916-2 | ||
