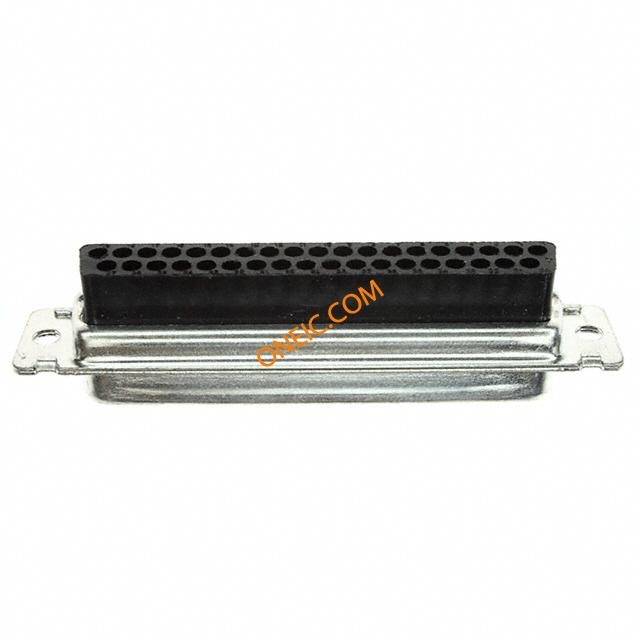

点击放大查看
205210-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PL 37 POS Crimp ST Cable Mount 37Terminal 1Port D-Sub High Density Connectors C37P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 37POS Conn Housing PL 37 POS Crimp ST Conn Housing PL 37 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 37PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;37Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell HDP-20,PLUG,SIZE 4, 37 POSN |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250VAC | 连接器阻抗 | 安装孔 |
| 最大额定电流 | 1 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 12.54 mm |
| 高度 | 10.82 mm | 外形尺寸(长x宽) | 4 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 外壳尺寸 | 4 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Signal | 外壳表面处理 | 锡 |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | Crimp Snap | 接触镀层 | Tin |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Tin |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 屏蔽材料 | 钢 | 壳体材料 | Nylon |
| 总长度 | 69.31 mm | 包装数量 | 300 |
| 主要材料 | D-Subminiature | 接地凹痕 | Without |
| 端接样式 | Crimp | 触点数 | 37 POS |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal Shell | 兼容外壳尺寸（如TM-700等） | 压接扣入式 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | Plugs accept size 20 DF pin contacts. | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | PL |
| 系列 | HDP-20 (Crimp Snap) | 制造商全称 | HDP-20 |
| 产品子类型 | Connector | 应用细节 | Commercial |
环境参数
| 工作温度 | -55C to 105C | ||
