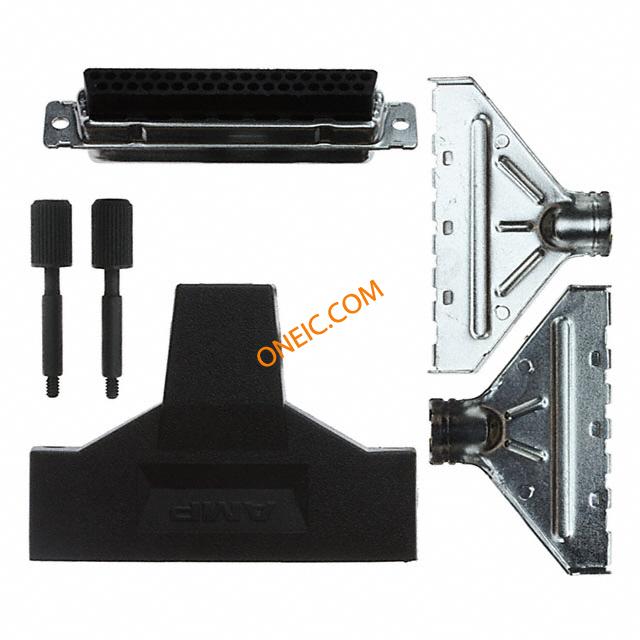

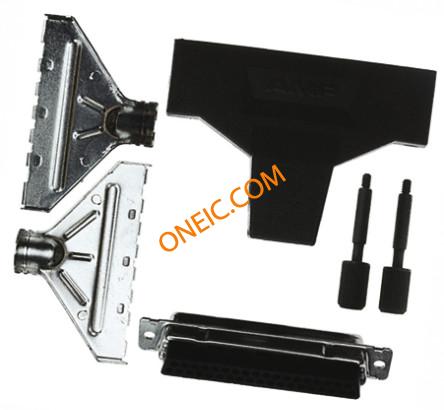

1658660-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 37 POS Crimp ST Bulk D-Sub Standard Connectors DSUB C37S CRIMP KIT Standard Cable Connectors CONN D-SUB RECEPT 37POS W/O CONT AMPLIMITE HDP-20 Socket+Enclosure 37P Conn Housing RCP 37 POS Crimp ST Bulk Product Highlights:Connector KitProduct Series = HDP-20 (Crimp Snap)Number of Positions = 37ShieldedReceptacleSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;37Pos;STR;HDP-20Series;CrimpSnap;20AWG;ShieldingEncl.Kit KIT,HDP-20,ENCLSUR,RCPT,SIZE 4 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | UL94V-0 | 防护类型 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250VAC | 连接器阻抗 | 锁紧螺钉, 锁紧螺钉 |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 高度 | 18.54 mm |
| 外形尺寸(长x宽) | 4 | 锁定类型 | 带有 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 壳体颜色 | 黑色 | 外壳尺寸 | 4 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点形式 | Signal | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 线径 | 8.59 – 14.28 mm [ .338 – .562 in ] |
| 行程角度 | Straight | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Cable Side (4-40) | 安装样式 | Wire |
| 排数 | 2 | 螺丝材料 | 锌合金 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 屏蔽材料 | Steel |
| 壳体材料 | Nylon|Polyester | 总长度 | 72.77 mm |
| 包装数量 | 1 | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 触点数 | 37 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 37 |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 等级 | 标准 | 连接器性别 | RCP |
| 系列 | HDP-20 | 产品特性 | Backshell, Shielded |
| 主要用途 | Backshell, Shielded | 制造商全称 | HDP-20 |
| 产品子类型 | 连接器 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -55C to 105C | ||
