点击放大查看

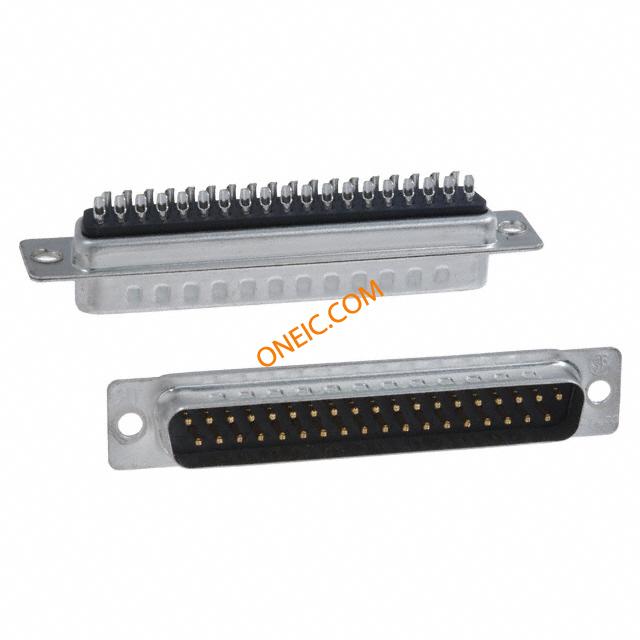

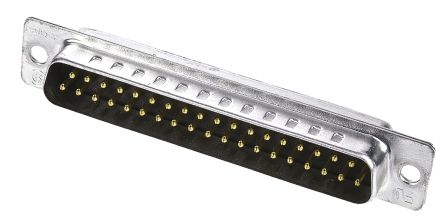

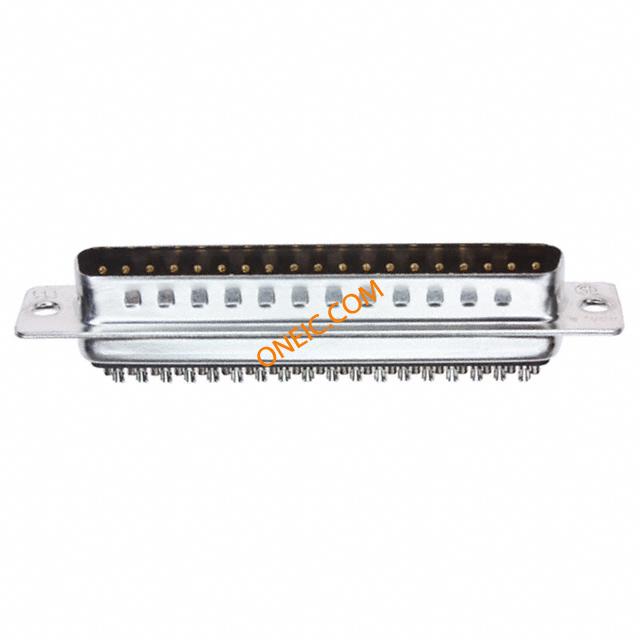

5-747916-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS Solder Cup ST Cable Mount 37 Terminal 1 Port D-Sub Standard Connectors 37P PLUG TIN Standard Cable Connectors CONN DSUB PLUG 37POS SLD CUP AMPLIMITE HD-20 d-sub cable socket,37way Conn D-Subminiature PIN 37 POS Solder Cup ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 37PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, T&D, SOLDER, 37WAY Conn;D-Sub;CablePlug;37Pos;STR;HD-20Series;20AWG;FullMetalShell D-Sub plug 37P, 5-747916-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB37 37 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 37 Plug Solder Cup, Gold Flash |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 40 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | Insert,UL94V-0 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | ULRecognized,ULListedandCSACertified |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite HDE-20 Series | 额定电压 | 250V |
| 工作电压 | :250V | 最大额定电流 | 3A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.4mm |
| 宽度 | 12.5mm | 高度 | 12.5 mm |
| 长度 | 69.4mm | 重量 | 0.52 |
| 材料（通用） | :Steel | 包装方式 | Tray |
| 外壳尺寸 | 4 | 导线线规 | 20 |
| 端接方式 | Solder Cup | 触点尺寸 | 20 |
| 触头类型 | Solder Cup | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Solder |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Wire |
| 排数 | 2 | 壳体镀层 | :Tin |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | Thermoplastic | 锁定特性 | Mounting Holes |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 总长度 | 69.4 mm |
| 主要材料 | D-Subminiature | 尺寸/外形 | 69.4 x 12.5 x 15.4mm |
| 接地凹痕 | Without | 端接样式 | Solder |
| 触点数 | 37 | 接触件端接 | :Solder |
| 位数 | 37 | 外壳尺寸-插件 | Steel |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 线规或范围 - mm² | 0.5 - 0.6 [20] | 外壳与棱镜材料 | :Tin Plated |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 类型 | D-Subminiature | 等级 | Standard |
| 连接器性别 | PIN | 系列 | HD-20 |
| 产品特性 | Grounding Indents | 制造商全称 | HD-20 |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
