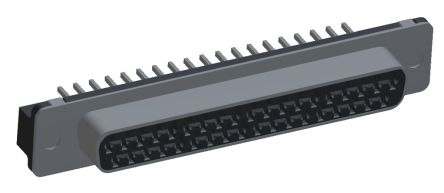

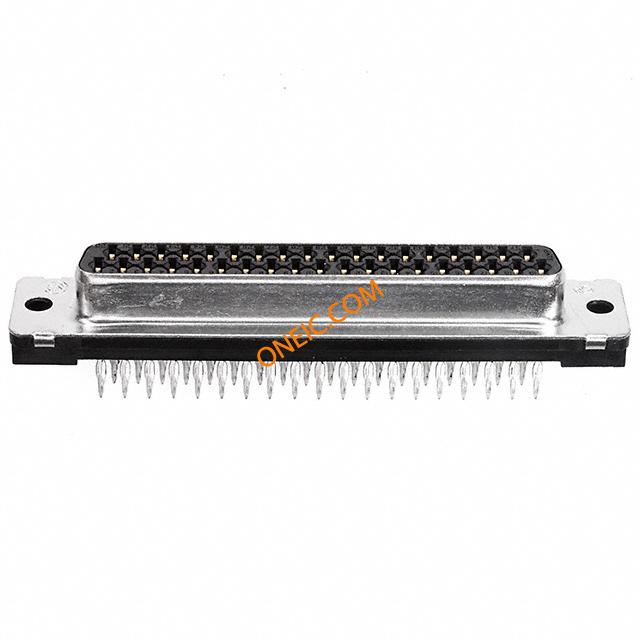

5747713-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.76mm Press Fit ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37P RCPT ACT PIN/MS MED STD CONN D-SUB RCPT STR 37POS AU 37 RCPT ACT PIN/MS MED STD 37 RCPT ACT PIN/MS MED STD Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub TE Connectivity Amplimite HD-20 系列 2.768mm 节距 37 路 直向 通孔安装 PCB D-sub 连接器 插座 |
| 分类 |
商业参数
| 标准包装规格 | 52 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 52 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL E81956 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接地方式 | Without | ||
机械参数
| 颜色 | Black | 深度 | 0.509in |
| 间距 | 2.76 mm | 宽度 | 0.479in |
| 长度 | 2.729in | 外形尺寸(长x宽) | 4 |
| 包装方式 | Tray | 壳体颜色 | 黑色 |
| 外壳尺寸 | 4 | 方向 | 直 |
| 端接方式 | Press Fit | 触头类型 | Signal |
| 柱间距 | .108 | 外壳表面处理 | 锡 |
| 第二连接器 | Without | 安装类型 | Through Hole |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 接地类型 | 不带 | 安装样式 | Through Hole |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 安装特性 | 作用/符合标准的尾, 安装孔 | 包装数量 | 52 |
| 面板安装类型 | 不带 | 尺寸/外形 | 2.729 x 0.479 x 0.509in |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 触点数 | 37 | 位数 | 37 |
| 外壳尺寸-插件 | Front Metal Shell | 安装孔直径 | 3.05 mm [ .12 in ] |
| 外壳材料及表面处理 | Steel, Tin Plated | 端子柱长度 | 5.8 mm [ .228 in ] |
| 接触镀层厚度 | Flash | 外壳与棱镜材料 | 否 |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | HD-20 | 可密封 | 否 |
| 预装 | 是 | 产品子类型 | 连接器 |
| 基础产品编号 | 5747713 | 其他规格 | 否 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
文档与媒体
相关型号
