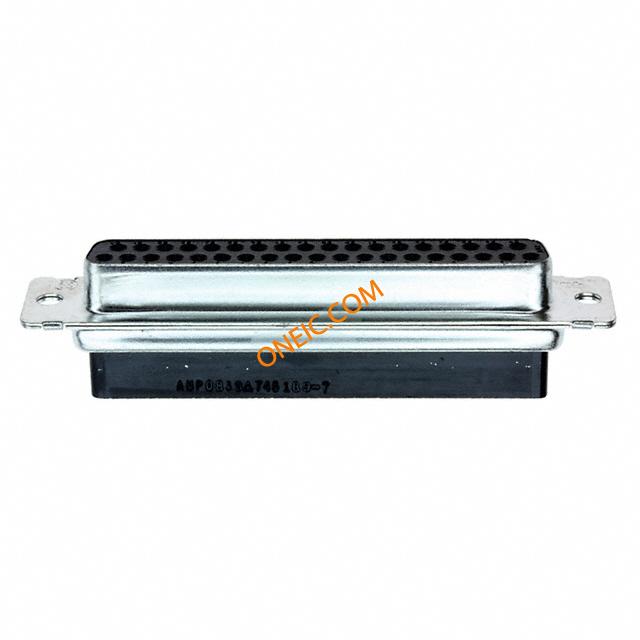

点击放大查看
745189-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS 2.77mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors RECEPTACLE 37 POS 189 Standard Board Mount Connectors CONN D-SUB RCPT STR 37POS PCB AU 37 RCPT SP/MS STD 37 RCPT SP/MS STD Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub |
| 分类 |
商业参数
| 标准包装规格 | 7 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 7 |
合规参数
| RoHS | No | 防护类型 | UL 94V-0 |
| 无铅定义 | Not suitable for lead free processing | 标准编号 | UL E28476 |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 4 | 锁定类型 | 不带 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 外壳尺寸 | 4 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .109 | 外壳表面处理 | 锡 |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.093 â 0.125 [2.36 â 3.18] |
| 连接器样式 | D-Sub | 插入件材料 | Thermoplastic |
| 外形（宽 x 高） | High | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 安装孔 |
| 包装数量 | 7 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 接地凹痕 | Without |
| 端接样式 | Through Hole | 连接器颜色 | None |
| 外径 | .64 mm [ .025 in ] | 触点数 | 37 |
| 位数 | 37 | 外壳尺寸-插件 | Full Metal |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 4.78 [0.188] | 接触镀层厚度 | Flash |
| 外壳与棱镜材料 | 否 | 外壳尺寸，连接器布局 | 4 (DC, C) |
产品信息
| 备注 | All receptacles are preloaded with size 20 DF posted socket contacts | 连接器性别 | Receptacle |
| 系列 | HD-20 | 可密封 | 否 |
| 制造商全称 | AMP | 预装 | 是 |
| 产品子类型 | 连接器 | ||
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 – 3.18 mm [ .093 – .125 in ] |
