点击放大查看

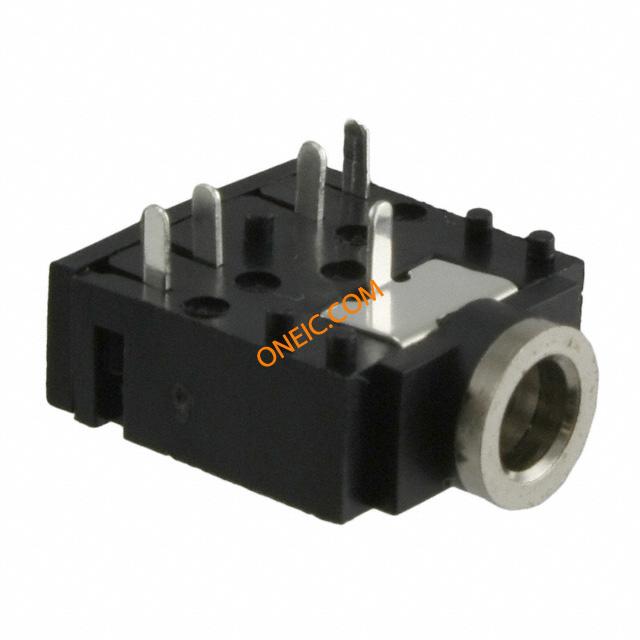

35RAPC4BHN2
| 制造商 | |
| 描述 | Phone Connectors 3C 3.5mm JACKET Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON STEREO JACK; HORIZONTAL CONNECTOR, RCA, JACK, 3.5MM, THT, 5WAY STEREOJACK,HORIZONTAL |
| 分类 |
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 840 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94V-0,UL94V-1 | ||
电气参数
| 信号线数 | Stereo | 额定电压 | 500 V |
| 供电电压 | 3.5 mm, 1/8 in | 开关功能/额定值 | Switched |
机械参数
| 尺寸 | 3.5mm | 颜色 | Black |
| 深度 | 15 | 高度 | 6 |
| 重量 | 0.001 | 屏蔽 | Unshielded |
| 绝缘类型 | Insulated | 方向 | Horizontal |
| 端接方式 | Solder | 重量（g） | 1.58000 |
| 引脚直径 | :3.5mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Phone Jack | 接触镀层 | Silver |
| 本体材料 | :Plastic | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 总长度 | 12 |
| 主要材料 | Phone | 端接样式 | Through Hole |
| 连接器颜色 | :Black | 触点数 | 5 |
| 接触件端接 | :Solder | 按钮/帽颜色 | Silver |
| 法兰下方引脚尺寸 | :3.5mm | 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| 触点材料 - 镀层 | Silver | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Audio | 连接器性别 | F |
| 系列 | 35RAPC | 制造商全称 | 35Series |
| 端口数 | 1 | 内部开关 | Two Switches |
| 位置/触点数量 | 3 Conductors, 5 Contacts | ||
文档与媒体
相关型号
35HDBAUS
Switchcraft
Phone Connectors 3.5mm PLUG SML HANDL Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD 3.5MMPLUG,SMALLHA
35HDRABAU
Switchcraft
Phone Connectors 3.5MM PLUG R/A Conn 3.5MM Stereo PL 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD R/A 3.5MMRAPLUGBLACK/
35RAPC4BHN2
Switchcraft
Phone Connectors 3C 3.5mm JACKET Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON STEREO JACK; HORIZONTAL CONNECTOR, RCA, JACK, 3.5MM, THT, 5WAY STEREOJACK,HORIZONTAL
35HDRANN
Switchcraft
Phone Connectors 3.5mm R/A STER PLUG Conn 3.5MM Stereo PL 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD R/A Heavy Duty 3.5mm Right Angle Stereo Plug 3.5MMRIGHTANGLEST Switchcraft 3.5mm 公 直角 电缆安装 插孔连接器, 4A, 140 V 直流, 250 V 直流
35HDNN
Switchcraft
Phone Connectors 3.5MM STEREO Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD Plug; Solder; 0.250 in. (Max.); Copper Alloy (Sleeve) CONNECTOR, PHONE AUD, PLUG, 3POS Plug;Solder;0.250in.(Max.);CopperAlloy(Sleeve)
35HDBAU
Switchcraft
Phone Connectors 3.5MM PLUG Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD CONNECTOR, RCA/PHONO, PLUG, 3POS 3.5MMSTEREOPLUGG
35HDBN
Switchcraft
Phone Connectors 3.5mm STEREO PLUG Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD CONNECTOR, RCA/PHONO, PLUG, 3POS 3.5MMSTEREOPLUG,NI

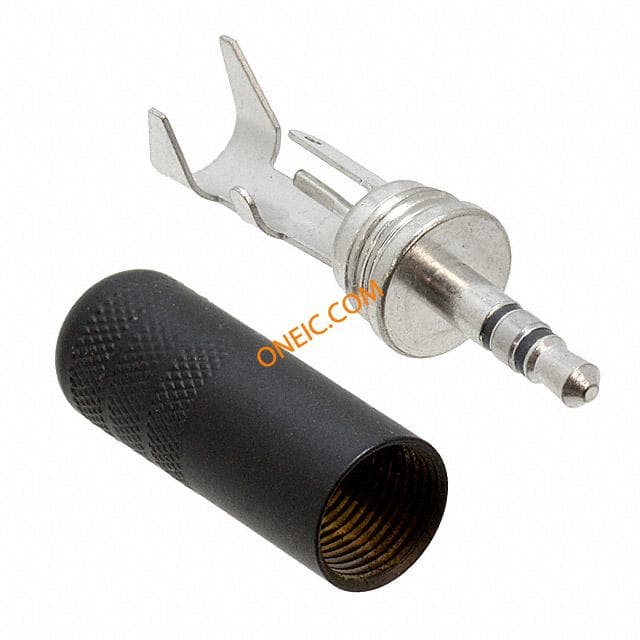

35HDBNS
Switchcraft
Phone Connectors 3.5MM PLUG SMALL HA Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD 3.5MMPLUG,SMALLHA
35HDNAU
Switchcraft
Phone Connectors 3.5MM STEREO PLUG Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD CONNECTOR, RCA/PHONO, PLUG, 3POS 3.5MMSTEREOPLUG,GO Switchcraft 3.5mm 公 电缆安装 插孔连接器, 4A, 140 V 直流, 250 V 直流
35HDNAUS
Switchcraft
Phone Connectors 3.5MM PLUG SMALL HA CONN PLUG STEREO 3.5MM HD 3.5MMPLUG,SMALLHA
35HDRANAU
Switchcraft
Phone Connectors 3.5MM R/A PLUG NICK Conn 3.5MM Stereo PL 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD R/A 3.5MMR/APLUG,NICK

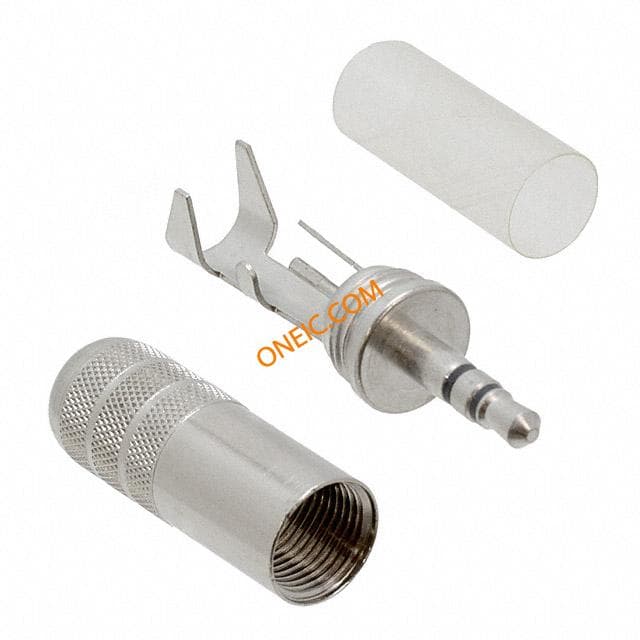

35HDNNS
