点击放大查看

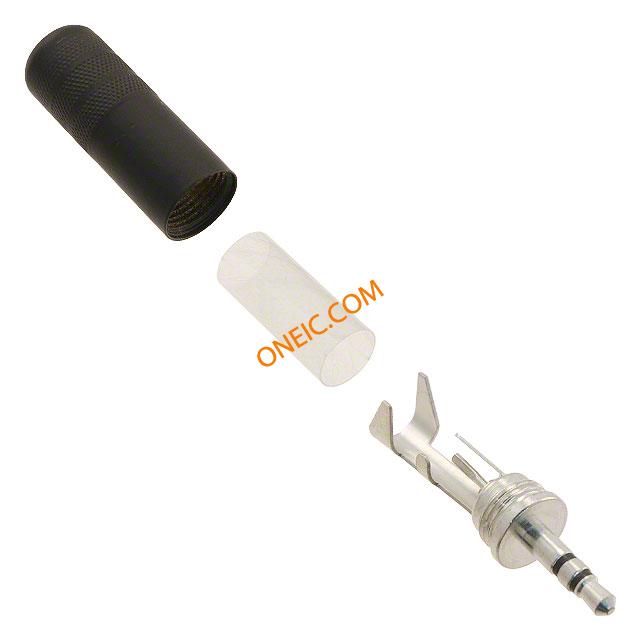

35HDBN
| 制造商 | |
| 描述 | Phone Connectors 3.5mm STEREO PLUG Conn Audio PL 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD CONNECTOR, RCA/PHONO, PLUG, 3POS 3.5MMSTEREOPLUG,NI |
| 分类 |
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | ||
电气参数
| 信号线数 | Stereo | 额定电压 | 250VAC, 140VDC |
| 供电电压 | 3.5 mm, 1/8 in | 最大额定电流 | 4A |
| 最小输入电压 | 140VDC|250VAC | 开关功能/额定值 | Not Switched |
| 触点额定值 @ 电压 | 4 A | ||
机械参数
| 颜色 | Black | 重量 | 0.009 |
| 直径 | 10.31 | 屏蔽 | Unshielded |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 连接器类型 | Phone Plug |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 本体材料 | :Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Copper Alloy | 总长度 | 43.18 |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 外径 | :3.5mm | 触点数 | 3 |
| 接触件端接 | :Solder | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 触点材料 - 镀层 | Tin |
产品信息
| 类型 | Audio | 连接器性别 | PL |
| 系列 | 35HD | 产品特性 | Cable Clamp |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 3 Conductors, 3 Contacts | ||
环境参数
| 工作温度 | 0°C ~ 66°C | ||
