点击放大查看

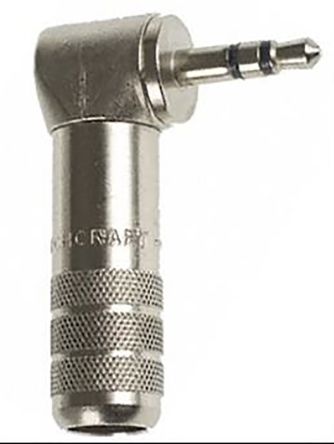

35HDRANN
| 制造商 | |
| 描述 | Phone Connectors 3.5mm R/A STER PLUG Conn 3.5MM Stereo PL 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD R/A Heavy Duty 3.5mm Right Angle Stereo Plug 3.5MMRIGHTANGLEST Switchcraft 3.5mm 公 直角 电缆安装 插孔连接器, 4A, 140 V 直流, 250 V 直流 |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Stereo | 额定电压 | 250VAC, 140VDC |
| 供电电压 | 3.5 mm, 1/8 in | 最大额定电流 | 4A |
| 开关功能/额定值 | Not Switched | ||
机械参数
| 尺寸 | 3.5 mm | 颜色 | Nickel |
| 屏蔽 | Shielded | 方向 | Right Angle |
| 端接方式 | Solder | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 连接器类型 | Phone Plug |
| 接触镀层 | Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 壳体材料 | Brass |
| 尺寸/外形 | 3.5 mm | 端接排数 | 焊接 |
| 端接样式 | Solder | 连接器颜色 | Natural |
| 触点数 | 3 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 触点材料 - 镀层 | Nickel |
产品信息
| 类型 | 3.5MM Stereo | 连接器性别 | PL |
| 系列 | 35HD | 产品特性 | Cable Clamp |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 3 Conductors, 3 Contacts | ||
环境参数
| 工作温度 | +66°C | ||
