点击放大查看

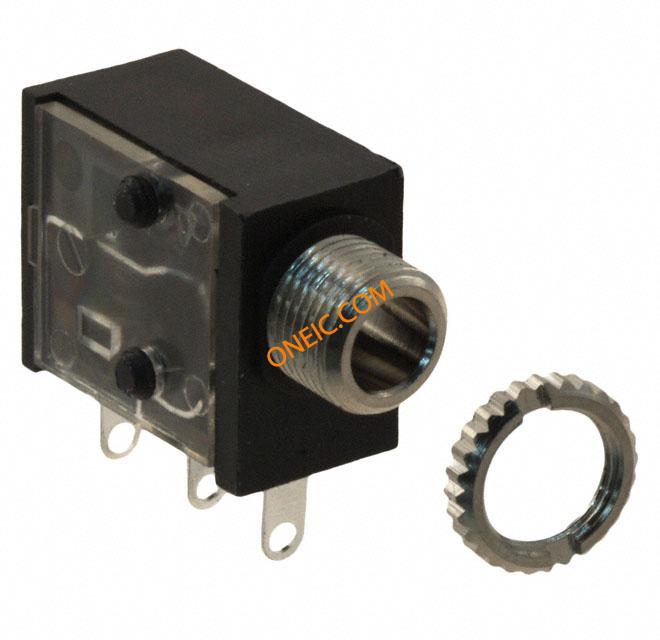

35RAPC2AV
| 制造商 | |
| 描述 | Phone Connectors 3.5MM MONO JACK Conn Audio F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN JACK 3.5MM MONO VERTICAL CONNECTOR, PHONE AUD, JACK, 2POS 3.5mmSINGLEMONOJACK,VERTICAL,THREADED Socket; Jack 3.5 mm; female; mono, with on/off switch; angled 90° |
| 分类 |
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 560 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 材料阻燃等级 | UL94V-1,UL94V-2 |
电气参数
| 信号线数 | Mono | 额定电压 | 250 V |
| 供电电压 | 3.5 mm, 1/8 in | 开关功能/额定值 | Switched |
机械参数
| 尺寸 | 3.5mm | 颜色 | Black |
| 深度 | 18.5 | 高度 | 11.4 |
| 重量 | 0.00204 | 屏蔽 | Unshielded |
| 绝缘类型 | Insulated | 方向 | Vertical |
| 端接方式 | Solder | 外壳颜色 | Black |
| 安装类型 | Through Hole | 行程角度 | RightAngle |
| 连接器类型 | Phone Jack | 接触镀层 | Silver |
| 安装样式 | Through Hole | 本体材料 | :Plastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 7.5 mm | 包装数量 | 100 |
| 主要材料 | Phone | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 触点数 | 3 |
| 接触件端接 | :Solder | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 触点材料 - 镀层 | Silver |
| 第一连接器安装类型 | :PCB | ||
产品信息
| SPG | 100 | 类型 | Audio |
| 连接器性别 | F | 系列 | 35RAPC |
| 产品特性 | Thread Lock | 制造商全称 | 35Series |
| 端口数 | 1 | 单元数量 | 1 |
| 内部开关 | Single Switch | 有铅工艺兼容 | :Yes |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
