点击放大查看

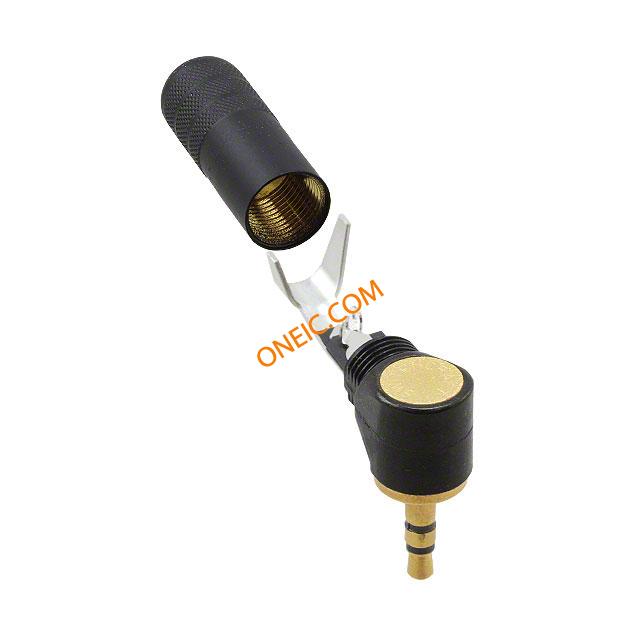

35HDRABAU
| 制造商 | |
| 描述 | Phone Connectors 3.5MM PLUG R/A Conn 3.5MM Stereo PL 3 POS Solder RA Cable Mount 3 Terminal 1 Port CONN PLUG STEREO 3.5MM HD R/A 3.5MMRAPLUGBLACK/ |
| 分类 |
商业参数
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Stereo | 额定电压 | 250VAC, 140VDC |
| 供电电压 | 3.5 mm, 1/8 in | 最大额定电流 | 4A |
| 开关功能/额定值 | Not Switched | ||
机械参数
| 颜色 | Black | 屏蔽 | Shielded |
| 方向 | Right Angle | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Phone Plug | 接触镀层 | Gold |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Brass | 端接样式 | Solder |
| 触点数 | 3 | 按钮/帽颜色 | Gold |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 触点材料 - 镀层 | Gold |
产品信息
| 类型 | 3.5MM Stereo | 连接器性别 | PL |
| 系列 | 35HD | 产品特性 | Cable Clamp |
| 端口数 | 1 | 内部开关 | Does Not Contain Switch |
| 位置/触点数量 | 3 Conductors, 3 Contacts | ||
环境参数
| 工作温度 | 0°C ~ 66°C | ||
文档与媒体
相关型号
35RAPC2BHN2
Switchcraft
Phone Connectors STEREO SWITCH Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON Conn Audio F 5 POS Solder RA Thru-Hole 5Terminal 1Port 3.5MMSTEREOJACK-HO
35RAPC4BHN2
Switchcraft
Phone Connectors 3C 3.5mm JACKET Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON STEREO JACK; HORIZONTAL CONNECTOR, RCA, JACK, 3.5MM, THT, 5WAY STEREOJACK,HORIZONTAL
35RAPC2BH3
Switchcraft
Phone Connectors 3.5mm STEREO PCB Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK STEREO 3.5MM HORIZON 3.5MMSTEREOJAX,HOR
35RAPC4BVN4
Switchcraft
Phone Connectors 3.5MM VERT STEREO JK Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK 3.5MM STERO VERT NON 3.5MMSTEREO,VERT;W/
35RAPC2AV
Switchcraft
Phone Connectors 3.5MM MONO JACK Conn Audio F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN JACK 3.5MM MONO VERTICAL CONNECTOR, PHONE AUD, JACK, 2POS 3.5mmSINGLEMONOJACK,VERTICAL,THREADED Socket; Jack 3.5 mm; female; mono, with on/off switch; angled 90°

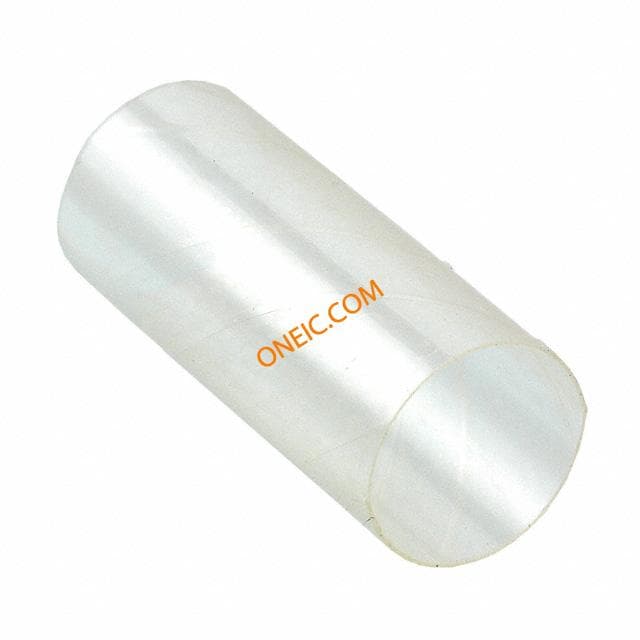

P3661
