点击放大查看

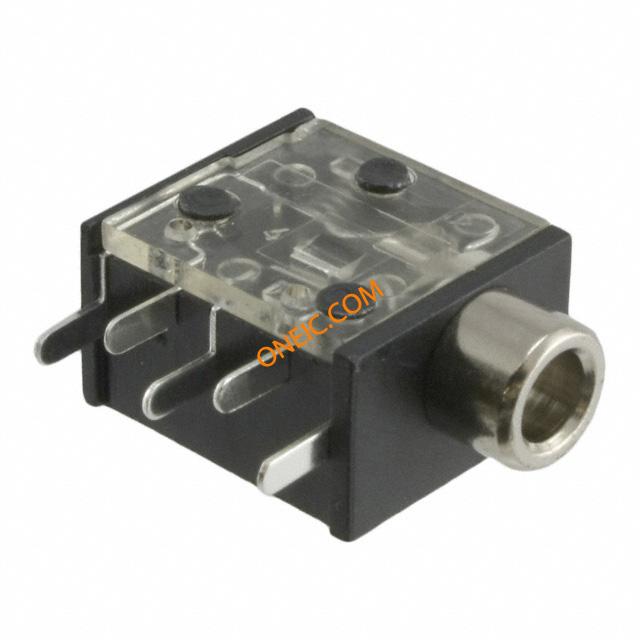

35RAPC4BVN4
| 制造商 | |
| 描述 | Phone Connectors 3.5MM VERT STEREO JK Conn Audio F 5 POS Solder RA Thru-Hole 5 Terminal 1 Port CONN JACK 3.5MM STERO VERT NON 3.5MMSTEREO,VERT;W/ |
| 分类 |
商业参数
| 交货时间 | 44 Days | 子类别 | Connector Audio and Video |
| 产品类别 | Phone Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 560 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 信号线数 | Stereo | 额定电压 | 500 V |
| 供电电压 | 3.5 mm, 1/8 in | 开关功能/额定值 | Switched |
机械参数
| 颜色 | Black | 屏蔽 | Unshielded |
| 方向 | Vertical | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Phone Jack | 接触镀层 | Tin Alloy |
| 安装样式 | Through Hole | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 端接样式 | Through Hole |
| 触点数 | 5 | 按钮/帽颜色 | Silver |
| 插头/配合插头直径（类型） | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | 触点材料 - 镀层 | Silver |
产品信息
| 类型 | Audio | 连接器性别 | F |
| 系列 | 35RAPC | 端口数 | 1 |
| 内部开关 | Two Switches | 位置/触点数量 | 3 Conductors, 5 Contacts |
