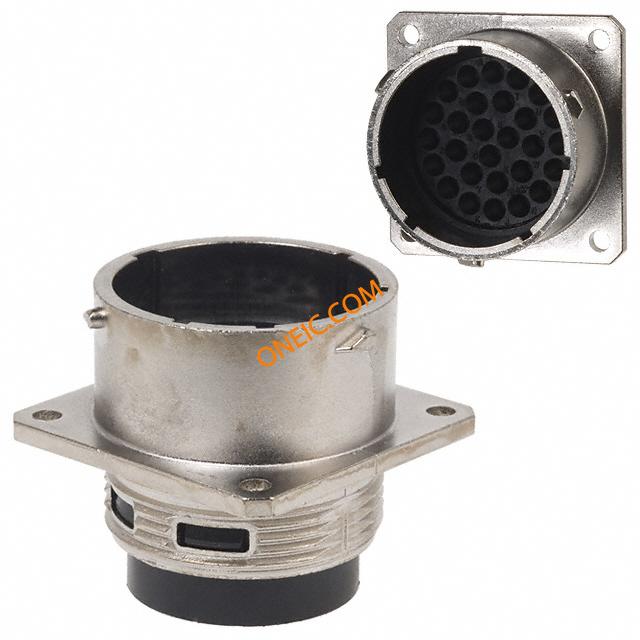

UT002028PH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Pin Receptacle Wall Mount Size 20 CONN RCPT MALE 28POS WALL MNT Conn Metal Circular PIN 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1011 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 250 V | ||
机械参数
| 深度 | 36.5 mm | 高度 | 36.5 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 20 | 方向 | N (Normal) |
| 外壳样式 | Square Flange | 端接方式 | Crimp |
| 触点形式 | 28Signal | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Panel Mount, Flange |
| 外壳镀层 | Nickel | 连接器类型 | Receptacle for Male Contacts |
| 紧固类型 | Bayonet Lock | 安装样式 | Wall |
| 外壳材料（壳体） | Zinc Alloy | 插入角度 | 20-28 |
| 总长度 | 33.3 mm | 第一触头极性 | Without Pin Contacts |
| 触点数 | 28 | 位数 | 28 |
| 外壳尺寸-插件 | 20-28 | 外壳材料及表面处理 | Zinc, Nickel Plated |
| 外壳尺寸-插入件（转换至） | 20-28 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | RCP | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Receptacles |
| 射频系列/标准 | UT0 | ||
环境参数
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
