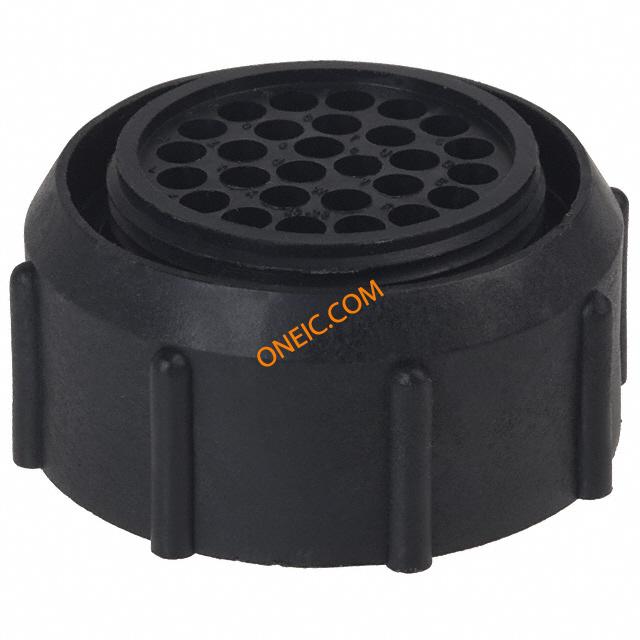

UTP62028S
| 制造商 | SOURIAU SAS |
| 描述 | CONN PLUG CABLE FEMALE 28POS SOCKET, FREE, 28WAY connector,circularplastic,strcableplug,size20,for28size16socketcontact |
| 分类 |
商业参数
| 其他名称 | SOU1165 | 标准包装数量 | 100 |
合规参数
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | :750V | 工作电压 | :750V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 重量 | 0.03011 | 包装方式 | Bulk |
| 方向 | Keyed | 触点尺寸 | 16 |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 插入角度 | :20-28 | 本体材料 | :Glass Filled Thermoplastic |
| 第一触头极性 | :Socket | 连接器颜色 | :Black |
| 位数 | 28 | 外壳尺寸-插件 | 20-28 |
| 外壳材料及表面处理 | Thermoplastic, Glass Filled | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | :Plug |
| 系列 | :UTP | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | :125°C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT072028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Jam Nut Size 20 CONN RCPT MALE 28POS JAM NUT
UT002028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Wall Mount Size 20 CONN RCPT MALE 28POS WALL MNT Conn Metal Circular PIN 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

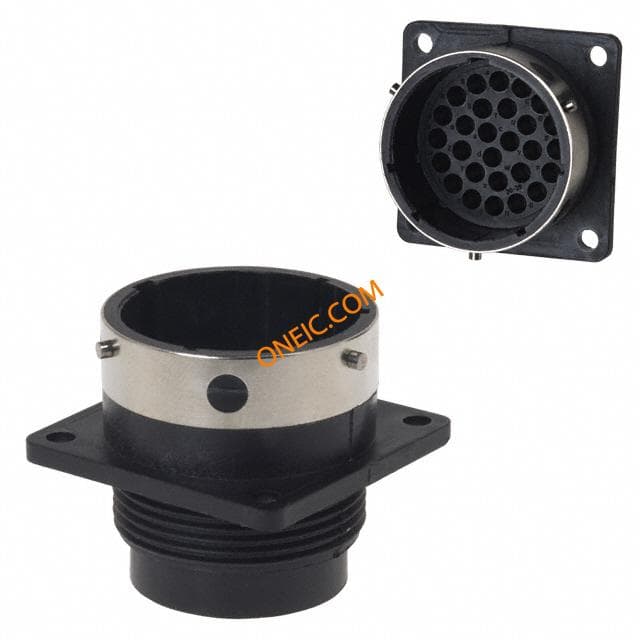

UTG020-28P
