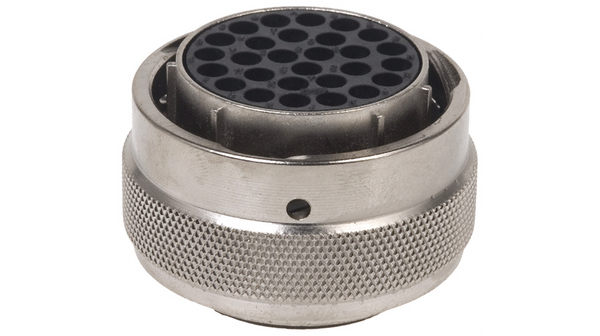

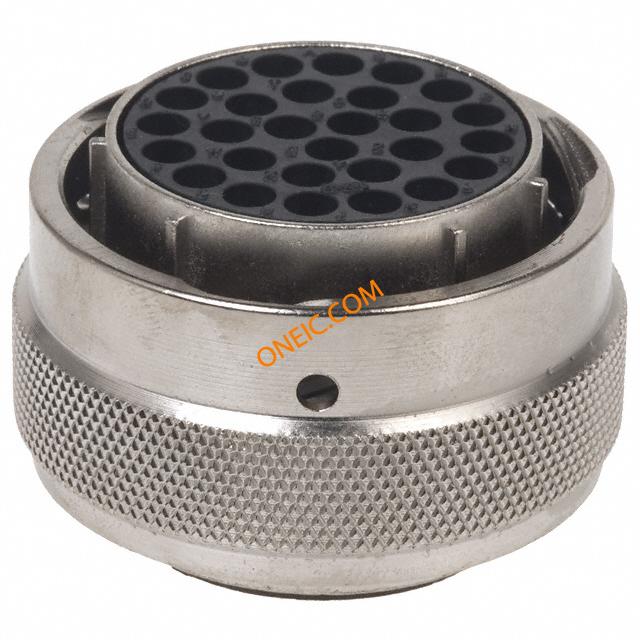

UT062028SH
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Strt Socket Plug Size 20 Conn Metal Circular SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS FEMALE SOCKET HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE SKT Cable socket UT0 28-pin Trim Trio UT0 28P Female 20, UT062028SH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合 |
| 分类 |
商业参数
| 商标名 | Trim Trio | 其他名称 | SOU1042 |
| 产品类别 | Standard Circular Connector | 标准包装数量 | 25 |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 测试电压 | :2000V | 额定电压 | 250 V |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 深度 | 3.2 mm | 高度 | 2.5 mm |
| 重量 | 0.0386 | 直径 | 37.5 mm |
| 包装方式 | Bag | 出线方向 | No |
| 外壳尺寸 | 20 | 方向 | N (Normal) |
| 端接方式 | Crimp | 触点形式 | 28Signal |
| 触点尺寸 | 16 | 触头类型 | 28Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Nickel |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | - | 外壳材料（壳体） | Zinc Alloy |
| 插入角度 | 20-28 | 本体材料 | :Zinc Alloy |
| 总长度 | 24.9 mm | 端接样式 | SMT |
| 第一触头极性 | Without Socket Contacts | 触点数 | 28 |
| 位数 | 28 | 外壳尺寸-插件 | 20-28 |
| 外壳材料及表面处理 | Zinc, Nickel Plated | 第一连接器安装类型 | :Cable |
| 外壳尺寸-插入件（转换至） | 20-28 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Circular |
| 连接器性别 | PL | 系列 | UT0 |
| 产品特性 | Shielded | 产品子类型 | Cable Plugs |
| 射频系列/标准 | UT0 | ||
环境参数
| 插拔次数 | :500 | NEMA 机架尺寸 | :IP67, IP68, IP69K |
| 防护等级 | IP 67 | 工作温度 | -40C to 105C |
文档与媒体
相关型号
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT020AC
Souriau
Standard Circular Connector Cable Clamp Size 20 With Strain Relief CONN CABLE CLAMP METAL #20 HOOD, METAL, STRAIN RELIEF, SIZE 20 Souriau UT0 系列 尺寸20 电缆夹, 带应力消除, 使用于UT0-UT0W 系列圆形连接器
UT072028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Jam Nut Size 20 CONN RCPT MALE 28POS JAM NUT
UT002028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Wall Mount Size 20 CONN RCPT MALE 28POS WALL MNT Conn Metal Circular PIN 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

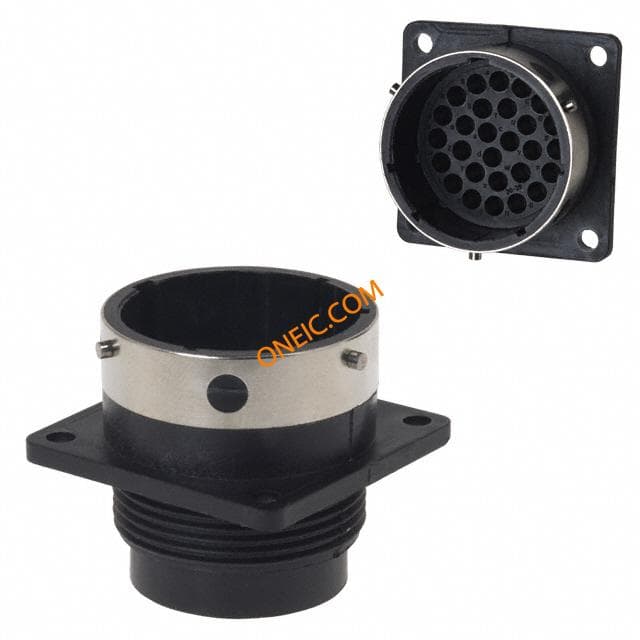

UTG020-28P
