点击放大查看

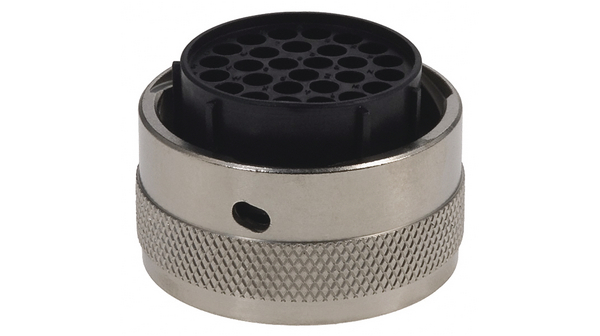

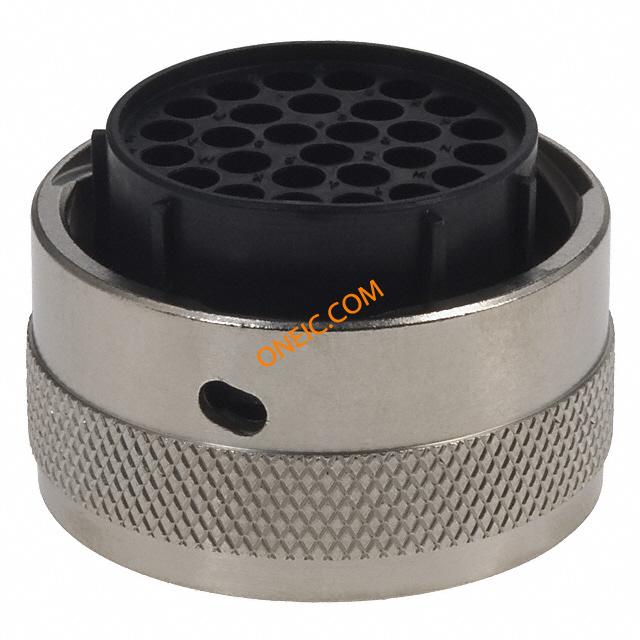

UTG620-28SN
| 制造商 | SOURIAU SAS |
| 描述 | Standard Circular Connector 28P Strt Socket Plug Shell Size 20 Conn Metalok Bantam SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CONN PLUG CABLE FEMALE 28POS connector;plastic circular;metal coupling ring;str plug;size 20;for 28 socket co connector,plasticcircular,metalcouplingring,strplug,size20,for28socketco Cable socket, Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG620-28SN, Souriau |
| 分类 |
商业参数
| 商标名 | Trim Trio | 产品类别 | Standard Circular Connector |
| 标准包装数量 | 25 | 工厂包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 2 kV | 极数 | 28 |
| 最大额定电流 | 13 A | ||
机械参数
| 直径 | 37.5 mm | 包装方式 | Bulk |
| 壳体颜色 | 24.9 | 外壳尺寸 | 20 |
| 方向 | Keyed | 端接方式 | Crimp |
| 触点形式 | 28Signal | 触点尺寸 | 16 |
| 触头类型 | 28Signal | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Bayonet Lock |
| 安装样式 | Wire | 外壳材料（壳体） | Thermoplastic |
| 连接器样式 | straight | 插入角度 | 20-28 |
| 锁定特性 | Bayonet locking | 触头材料 | CuNi+Au |
| 壳体材料 | Metal | 总长度 | 24.9 mm |
| 端接样式 | Crimp Connection | 第一触头极性 | SKT |
| 外径 | 27.1 | 触点数 | 28 |
| 位数 | 28 | 外壳尺寸-插件 | 20-28 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Thermoplastic, Glass Filled |
| 外壳尺寸-插入件（转换至） | 20-28 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Metalok Bantam |
| 连接器性别 | PL | 系列 | UTG |
| 产品子类型 | Cable Plugs | 放大器类型 | 37.5 |
| 射频系列/标准 | UTG | ||
环境参数
| 工作温度 | -55C to 125C | ||
