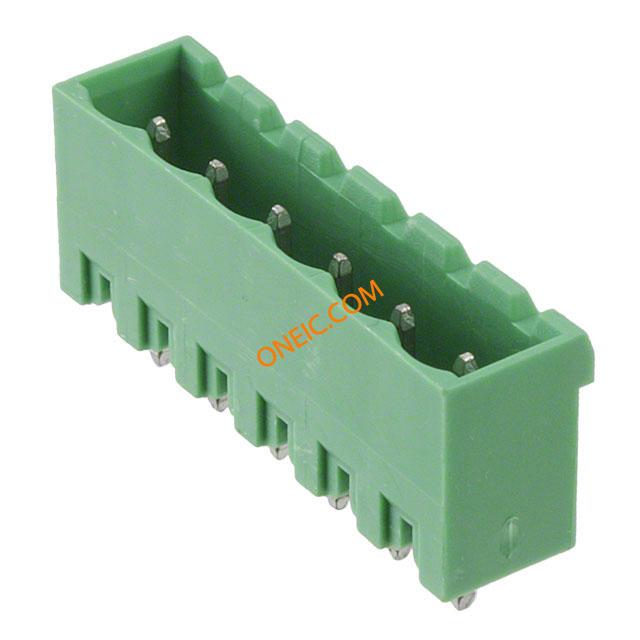

1859551
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 6P 5.08mm 180 DEG Conn Shrouded Header HDR 6 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 6-G-5,08 EMSTBVA25/6-G-508 Phoenix Contact COMBICON EMSTBVA 系列 5.08mm节距 6路 印刷电路板接线端子块, 按式端接, 12A |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 200 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Gray | 深度 | 8.6 |
| 间距 | 5.08 mm | 高度 | 12 |
| 重量 | 5.326368 oz | 包装方式 | Bulk |
| 引脚样式 | 180 Deg | 端接方式 | Press Fit |
| 外壳颜色 | Green | 安装类型 | 180 Deg |
| 接触镀层 | Tin | 安装样式 | Press In / Press Fit |
| 排数 | 1 | 触头材料 | 锡 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 32.48 |
| 端接排数 | 按式 | 排针方向 | Vertical |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | EMSTBVA | 层数 | 1 |
| 每层位数 | 6 | ||
