1786446

点击放大查看

1786446

制造商
Phoenix Contact GmbH & Co. KG
描述Pluggable Terminal Blocks IC 2.5/ 6-G-5.08 Conn Socket Strip SKT 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Phoenix Contact 5.08mm 6 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact 6路 直角 5.08mm节距 通孔 印刷电路板插座, 插座板
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Headers - Inverted商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
标准UL,cULRecognized认证机构UL,CUL,CSA,CB,GOST,VDE-PZI
材料阻燃等级UL 94 V-0

电气参数

电流10A电压300V
额定电压320 V极数6Poles
输出电流12A标称电压320V
最大额定电流12A最小输入电压320V
最小供电电压320V

机械参数

颜色Green深度19 mm
间距0.200" (5.08mm)高度10.2 mm
重量5.784930 oz包装方式Bulk
方向直角端接方式Solder
外壳颜色Green安装类型Right Angle
接触镀层Tin安装样式Through Hole
排数1壳体材料Polyamide
总长度32.48 mm主要材料PCB
端接排数焊接插针孔直径5.08mm
端接样式Through Hole排针方向90°, Right Angle
触点数6位数6
接线端子类型Header, Female Sockets

产品信息

类型Socket Strip级别SingleLevel
连接器性别SKT系列IC
产品特性Retention LatchesCAD图纸3D CAD Model
制造商全称COMBICON层数1
基础产品编号IC2.5/6-G-5.08每层位数6

文档与媒体

PDF 文档
1786446

相关型号

1859551

1859551

Phoenix Contact

Pluggable Terminal Blocks 6P 5.08mm 180 DEG Conn Shrouded Header HDR 6 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 6-G-5,08 EMSTBVA25/6-G-508 Phoenix Contact COMBICON EMSTBVA 系列 5.08mm节距 6路 印刷电路板接线端子块, 按式端接, 12A

¥15.0280
详情
暂无图片

0707921

Phoenix Contact

Pluggable Terminal Blocks DFK-MSTB 2.5/ 6-G-5,08 WW(1X1) TERM BLOCK

¥26.4520
详情
暂无图片

1748248

Phoenix Contact

Pluggable Terminal Blocks MSTBA 2.5/ 6-G-5.08 AU Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM MSTBA25/6-G-508AU

¥11.9680
详情
1735840

1735840

Phoenix Contact

プラグ着脱可能ターミナルブロック 6P 5.08mm Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 6-G-5,08 Pluggable Terminal Blocks 6P 5.08mm MSTBW25/6-G-508

¥11.0004
详情
1758050

1758050

Phoenix Contact

プラグ着脱可能ターミナルブロック 5.08 6P HEADER 180DG Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/ 6-G-5,08 Pluggable Terminal Blocks 5.08 6P HEADER 180DG Conn;TermBlk;PCB;Header;SnglLvl;Sldr;6Pole;5.08mmPitch;COMBICON

¥7.1400
详情
1759059

1759059

Phoenix Contact

Pluggable Terminal Blocks 5.08 6P HEADER 90DEG Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MSTB 2,5/ 6-G-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON

¥4.3775
详情
1757284

1757284

Phoenix Contact

Pluggable Terminal Blocks 5.08 6P HEADER 90DEG Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 6WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 6路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A

¥3.1209
详情
1786213

1786213

Phoenix Contact

Pluggable Terminal Blocks IC 2 5/ 6-ST-5 08 5.08mm 6P HEADER Conn Terminal Block M 6 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 6POS STR 5.08MM Non-Fused Terminal Block Cable Mount 6 Way, Screw Down, 250V Conn;TermBlk;PCB;Plug;Screw;6;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact 6 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 320 V

¥36.3120
详情
1767410

1767410

Phoenix Contact

Pluggable Terminal Blocks 6P 5.08MM Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 6POS 45DEG 5.08MM Header for PCB plug connector SMSTBA 2,5/ 6-G-5,08 SMSTBA25/6-G-508 Phoenix Contact COMBICON SMSTBA 系列 6路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A

¥9.0440
详情
0707280

0707280

Phoenix Contact

Pluggable Terminal Blocks DFK-MSTB 2 5/ 6-G-5 Conn Wire to Wire HDR 6 POS 5.08mm Solder Lug ST Wall Mount TERM BLK HEADER FEED-THRU 5.08MM Non-Fused Terminal Block Panel Mount 6 Way, Solder, 320V Phoenix Contact 6 路 无熔丝端子块, 面板安装, 焊接端接, 320 V

¥27.0640
详情
1755778

1755778

Phoenix Contact

Pluggable Terminal Blocks 5.08 6P HEADER 180DG Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBVA 系列 5.08mm节距 6路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A

¥5.0573
详情
1762415

1762415

Phoenix Contact

Pluggable Terminal Blocks 6P 5.08mm Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 12POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 6-G1-5,08 MDSTB25/6-G1-508 Phoenix Contact COMBICON MDSTB 系列 6路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A

¥31.6880
详情

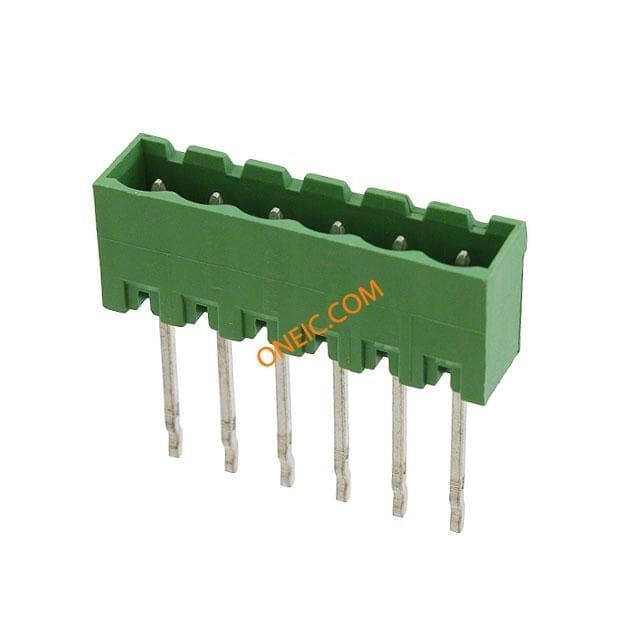

1872509

1872509

Phoenix Contact

Pluggable Terminal Blocks A-MSTBVA 2.5/ 6-G -5.08 Conn Shrouded Header HDR 6 POS 5.08mm ST HEADER TERM BLOCK 6 POS 5.08MM Header for PCB plug connector A-MSTBVA 2,5/ 6-G-5,08 A-MSTBVA25/6-G-508

¥21.0800
详情

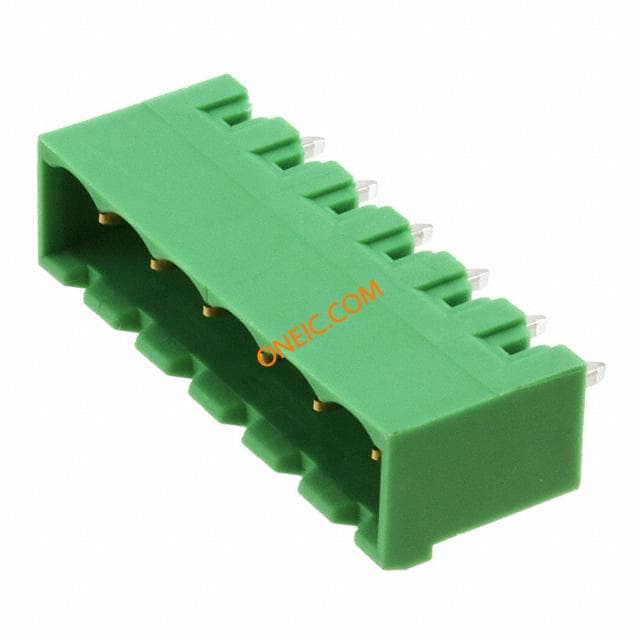

1746075
