点击放大查看
0707280
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks DFK-MSTB 2 5/ 6-G-5 Conn Wire to Wire HDR 6 POS 5.08mm Solder Lug ST Wall Mount TERM BLK HEADER FEED-THRU 5.08MM Non-Fused Terminal Block Panel Mount 6 Way, Solder, 320V Phoenix Contact 6 路 无熔丝端子块, 面板安装, 焊接端接, 320 V |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 12 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 - UL | 10A | UL电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 29.5 |
| 间距 | 0.200" (5.08mm) | 宽度 | 2.000" (50.80mm) |
| 高度 | 17.5 | 重量 | 0.245154 oz |
| 材料（通用） | Nylon | 端接方式 | Solder Lug |
| 外壳颜色 | Green | 安装类型 | Straight |
| 接触镀层 | Tin | 安装样式 | Panel / Box - Feed Through |
| 排数 | 1 | 面板厚度 | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| 壳体材料 | Polyamide | 总长度 | 50.8 |
| 面板安装类型 | Screw Mount - Front Flange | 端接排数 | 焊接 |
| 触点数 | 6 | 后面板接线方式 | Quick Connect - 0.110" (2.80mm), Solder Eyelet |
| 前面板接线方式 | Header, Male Pins | 每排/每行位置数 | 6 |
产品信息
| 类型 | Wire to Wire | 连接器性别 | HDR |
| 系列 | DFK-MSTB | 产品特性 | Lock Opening |
| CAD图纸 | 3D CAD Model | 线路数量 | 6 |
| 行业别名 | DFK-MSTB 2, 5/ 6-G-5, 08 | 层数 | 1 |
| 每层位数 | 6 | ||
文档与媒体
相关型号
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

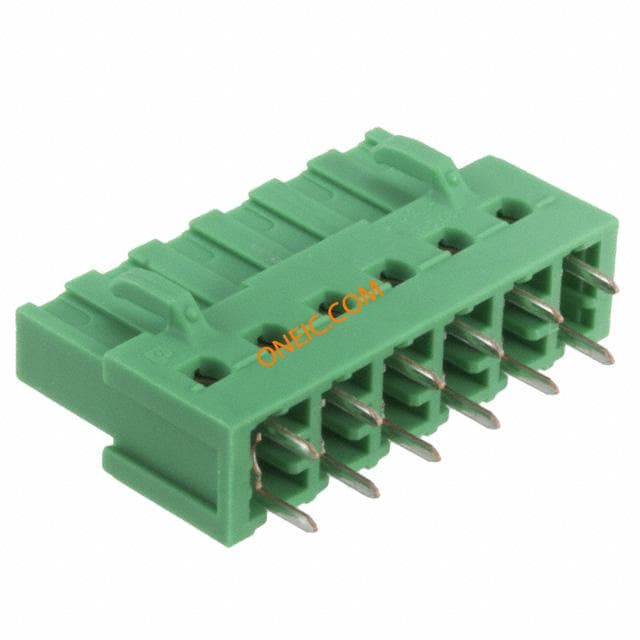

1785984
Phoenix Contact
Pluggable Terminal Blocks 6P 5.08MM VERTICAL Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,6way ICV25/6-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 6路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔

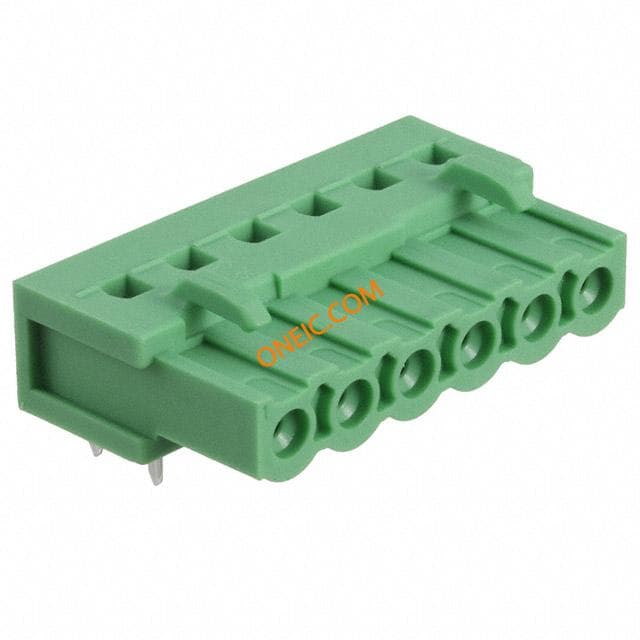

1786446
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 6-G-5.08 Conn Socket Strip SKT 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Phoenix Contact 5.08mm 6 Way 1 Row Right Angle PCB Socket Through Hole Socket Strip Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact 6路 直角 5.08mm节距 通孔 印刷电路板插座, 插座板
1734401
Phoenix Contact
Terminal Block Tools & Accessories CODING ELEMENT PRICED PER CLIP Connector Accessories Coding Element Inserted Into The Recess In The Header Or The Inverted Plug Red TERM BLOCK HEADER CODING ELEMENT CR-MSTB CODINGSECTION,REDINSULATINGMATERIAL
0708263
Phoenix Contact
Terminal Block Tools & Accessories HDR HDWR FOR 5.08mm ORDER QTY 2 PER HDR Connector Accessories Screw Set HDWR SET 3X10 SCREW/WASHER/NUT
5030172
Phoenix Contact
Terminal Block Tools & Accessories LOCKING LATCH Connector Accessories Locking Latch Red LOCKING LATCH RED MSTB PCB terminal stop notches DFK-MSTB-R

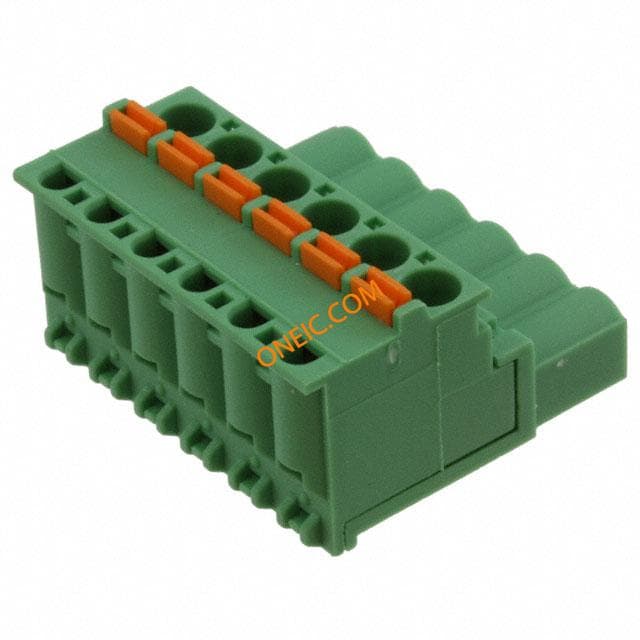

1873692
