1757284
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 6P HEADER 90DEG Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 6WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 6路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A |
| 分类 |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 零件号别名 | 2.5/ 6-G-5.08 MSTBA | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 100 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | EN-VDE |
| 海关税号 | 85369010 | 认证机构 | UL,CUL,CSA |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 量程（°/s） | :PHOENIX - MSTBA Series | 额定电压 | 250 V |
| 极数 | 6Poles | 输出电流 | 12A |
| 标称电压 | 250V | 工作电压 | :320V |
| 最大额定电流 | 12 A | 最小输入电压 | 250V@IEC|300V@UL |
| 保护电压（VP）（2416） | 4kV | ||
机械参数
| 颜色 | Green | 深度 | 12 |
| 间距 | 0.200" (5.08mm) | 高度 | 8.6 |
| 重量 | 5.396916 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 引脚间距 | :5.08mm |
| 孔径 | 1.4mm | 外壳颜色 | Green |
| 安装类型 | Right Angle | 接触镀层 | Tin |
| 安装样式 | SolderMount | 排数 | 1 |
| 材料表面处理 | :- | 触头材料 | :- |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 32.48 |
| 主要材料 | PCB | 尺寸/外形 | 25.4mm |
| 插针孔直径 | 5.08mm | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 6 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 6 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 绝缘材料 - 材质 | PBT |
| 安装孔直径 | :1.4mm | 法兰下方引脚尺寸 | 1x1mm |
产品信息
| 类型 | Shrouded Header | 级别 | SingleLevel |
| 连接器性别 | HDR | 系列 | MSTBA |
| 产品特性 | 90Deg | 制造商全称 | COMBICON |
| 行业别名 | MSTBA 2, 5/ 6-G-5, 08 | 层数 | 1 |
| 基础产品编号 | MSTBA2,5/6-G-5,08 | 每层位数 | 6 |
文档与媒体
相关型号
1758380
Phoenix Contact
Pluggable Terminal Blocks 5.08mm PRE-PRINTED 6P 1-6 LEFT TO RIGHT Conn Terminal Block F 6 POS 5.08mm 12A TERM BLOCK PLUG 6POS STR 5.08MM Printed-circuit board connector MSTB 2,5/ 6-ST-5,08 BD:1-6 Conn;TermBlk;Plug;Screw;6;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 6 路 母 绿色 插头, 插入式, 螺钉端接
1836626
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/ 6-ST-5 0 TERM BLOCK PLUG 6POS STR 5.08MM Conn Terminal Block F 6 POS 5.08mm Screw 12A MVSTBR25/6-ST-508BKAU
1776184
Phoenix Contact
Pluggable Terminal Blocks MSTB 2,5/ 6- STZ-5,08 BK Conn Terminal Block 6 POS 5.08mm 12A TERM BLOCK PLUG 6POS STR 5.08MM MSTB25/6-STZ-508BK
1777329
Phoenix Contact
プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 6-ST Conn Terminal Block F 6 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 6POS STR 5.08MM Non-Fused Terminal Block Cable Mount 6 Way, Screw Down, 250V Pluggable Terminal Blocks FRONT-MSTB 2 5/ 6-ST Conn Terminal Blocks F 6 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/6-ST-508
1826322
Phoenix Contact
Pluggable Terminal Blocks 5.08 6P PLUG 45DEG Conn Terminal Block F 6 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 6POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 6-ST-5,08 Conn Terminal Blocks F 6 POS 5.08mm Screw Cable Mount 12A Conn;TermBlk;Plug;Screw;6;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON SMSTB 系列 5.08mm 节距 6 路 母 绿色 直 插头, 插入式, 螺钉端接
1873090
Phoenix Contact

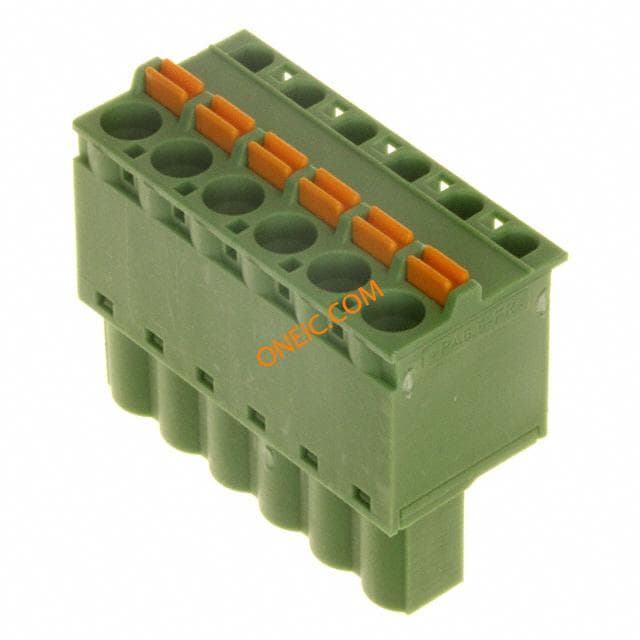

Pluggable Terminal Blocks FKC 2 5/ 6-ST-5 08 Conn Spring Cage F 6 POS 5.08mm ST 12A TERM BLOCK PLUG 6POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 6-ST-5,08 Conn;TermBlk;PCB;Plug;Springcage;6;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 6 路 母 绿色 直 插头, 电缆安装, 推入式端接
1785984
Phoenix Contact
Pluggable Terminal Blocks 6P 5.08MM VERTICAL Conn Wire to Board HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,6way ICV25/6-G-508 Phoenix Contact COMBICON ICV 系列 5.08mm节距 6路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔
1776126
Phoenix Contact

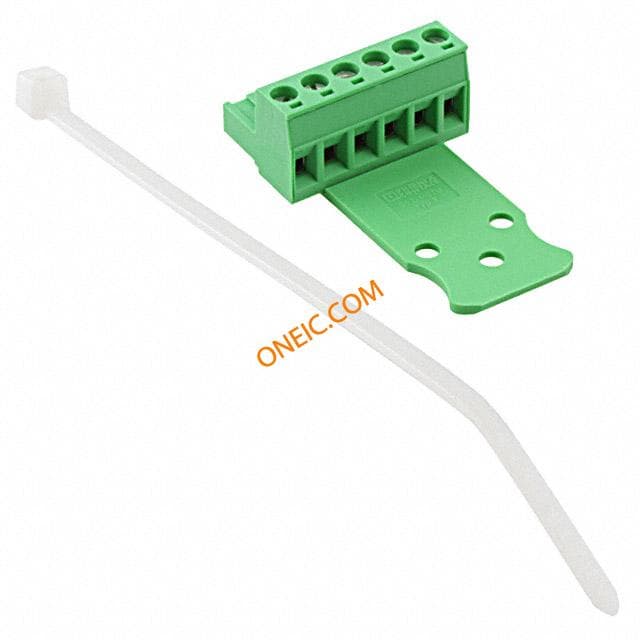

Pluggable Terminal Blocks MSTB 2 5/ 6-STZ-5 08 Conn Terminal Block F 6 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 6POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/ 6-STZ-5,08 MSTB25/6-STZ-508 Phoenix Contact MSTB 系列 6路 5.08mm节距 母 印刷电路板接线端子块, 印刷电路板连接器
