1883297
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 6P PLUG IDC Conn Terminal Block F 6 POS 5.08mm IDT RA Cable Mount 10A TERM BLOCK PLUG 6POS STR 5.08MM Printed-circuit board connector QC 1/ 6-ST-5,08 QC1/6-ST-508 Phoenix Contact COMBICON QC 系列 5.08mm 节距 6 路 母 绿色 插头, IDC端接 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 标准包装规格 | 50 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 500 V | 最大额定电流 | 10 A |
| 最小输入电压 | 630V | ||
机械参数
| 颜色 | Green | 深度 | 28.2 |
| 间距 | 0.200" (5.08mm) | 高度 | 15 |
| 重量 | 0.372493 oz | 材料（通用） | 聚酰胺，镀锡 |
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 端接方式 | IDT | 安装类型 | Cable Mount |
| 连接器类型 | 母座 | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 总长度 | 31.3 |
| 端接排数 | IDC | 端接样式 | IDC / IDT |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 20-18 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | QC | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 6 |
文档与媒体
相关型号
1859551
Phoenix Contact
Pluggable Terminal Blocks 6P 5.08mm 180 DEG Conn Shrouded Header HDR 6 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 6-G-5,08 EMSTBVA25/6-G-508 Phoenix Contact COMBICON EMSTBVA 系列 5.08mm节距 6路 印刷电路板接线端子块, 按式端接, 12A
1748248
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2.5/ 6-G-5.08 AU Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM MSTBA25/6-G-508AU
1735840
Phoenix Contact
プラグ着脱可能ターミナルブロック 6P 5.08mm Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 6-G-5,08 Pluggable Terminal Blocks 6P 5.08mm MSTBW25/6-G-508
1757284
Phoenix Contact
Pluggable Terminal Blocks 5.08 6P HEADER 90DEG Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 6WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 6路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A

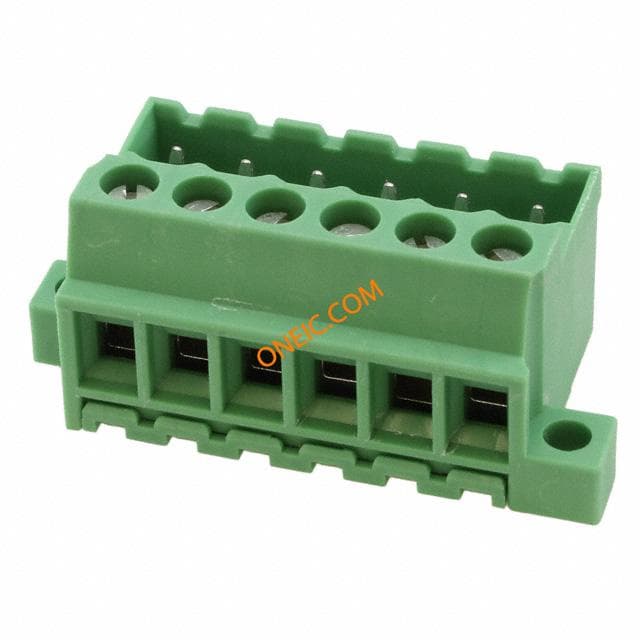

1788570
Phoenix Contact
Pluggable Terminal Blocks MVSTBU 2 5/ 6-GB-5 0 Conn Terminal Block HDR 6 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK RCPT 6POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 6-GB-5,08 MVSTBU2,5/6-GB-5,08

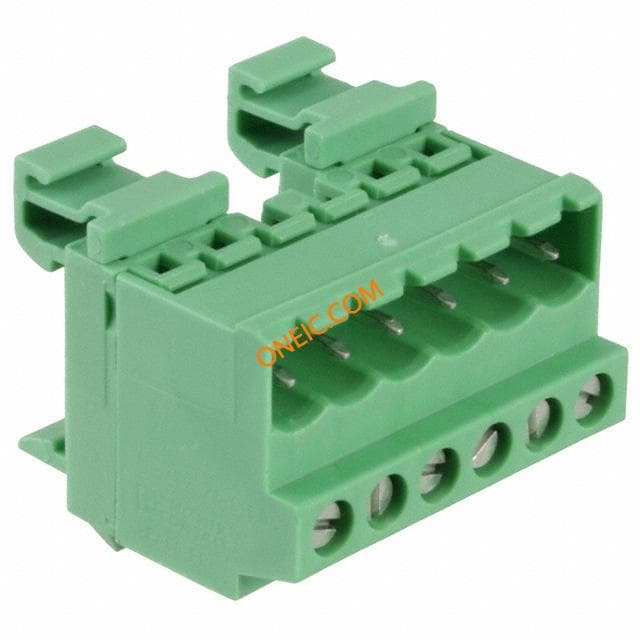

1788761
