点击放大查看

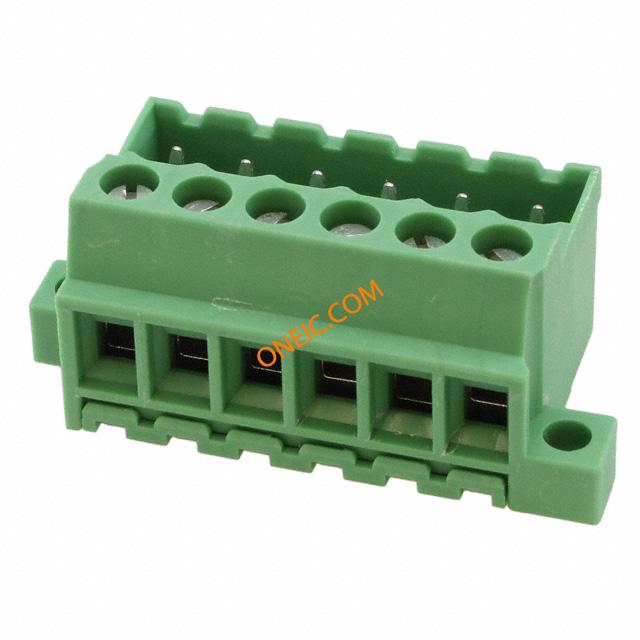

1788570
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks MVSTBU 2 5/ 6-GB-5 0 Conn Terminal Block HDR 6 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK RCPT 6POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 6-GB-5,08 MVSTBU2,5/6-GB-5,08 |
| 分类 |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-2 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 20.4 |
| 间距 | 0.200" (5.08mm) | 高度 | 17.3 |
| 长度 | 7 mm | 重量 | 7.301710 oz |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 端接方式 | Screw | 安装类型 | Panel Mount |
| 接触镀层 | Tin | 安装样式 | Panel / Box |
| 排数 | 1 | 壳体材料 | Polyamide |
| 总长度 | 41.8 | 触点数 | 6 |
| 位数 | 6 | 接线端子类型 | Receptacle, Male Pins |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | HDR |
| 系列 | MVSTBU | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 6 |
