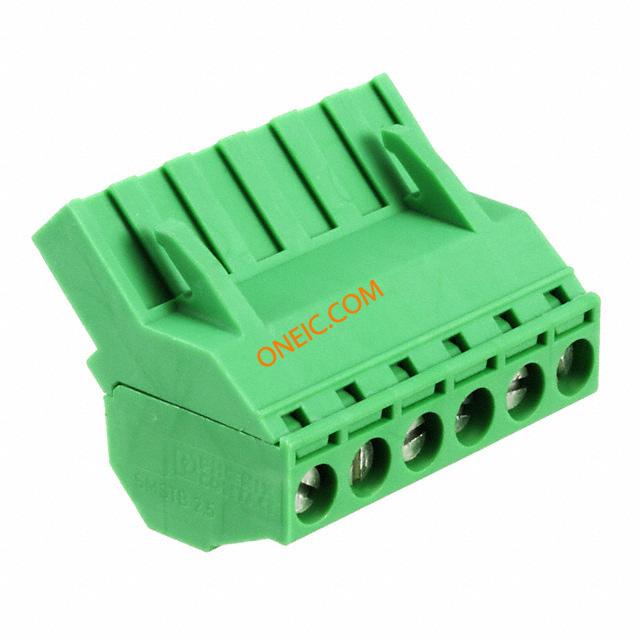

1826322
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08 6P PLUG 45DEG Conn Terminal Block F 6 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 6POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 6-ST-5,08 Conn Terminal Blocks F 6 POS 5.08mm Screw Cable Mount 12A Conn;TermBlk;Plug;Screw;6;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact COMBICON SMSTB 系列 5.08mm 节距 6 路 母 绿色 直 插头, 插入式, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Plugs | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | 最小供电电压 | 250V |
机械参数
| 颜色 | Green | 深度 | 25.5 mm |
| 间距 | 0.200" (5.08mm) | 宽度 | 25.6mm |
| 高度 | 15.5 mm | 长度 | 30.48mm |
| 重量 | 4.620889 oz | 材料（通用） | 聚酰胺 |
| 包装方式 | Bulk | 导线线规 | 12-30 AWG |
| 方向 | 直 | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | 母座 |
| 接触镀层 | Tin | 安装样式 | Cable |
| 排数 | 1 | 插头进线方向 | 225° |
| 壳体材料 | Polyamide | 总长度 | 30.48 mm |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 24-12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | SMSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 行业别名 | SMSTB 2, 5/ 6-ST-5, 08 | 层数 | 1 |
| 每层位数 | 6 | ||
文档与媒体
相关型号
1859551
Phoenix Contact
Pluggable Terminal Blocks 6P 5.08mm 180 DEG Conn Shrouded Header HDR 6 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 6-G-5,08 EMSTBVA25/6-G-508 Phoenix Contact COMBICON EMSTBVA 系列 5.08mm节距 6路 印刷电路板接线端子块, 按式端接, 12A
1748248
Phoenix Contact
Pluggable Terminal Blocks MSTBA 2.5/ 6-G-5.08 AU Conn Shrouded Header HDR 6 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM MSTBA25/6-G-508AU
1735840
Phoenix Contact
プラグ着脱可能ターミナルブロック 6P 5.08mm Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 6-G-5,08 Pluggable Terminal Blocks 6P 5.08mm MSTBW25/6-G-508
1757284
Phoenix Contact
Pluggable Terminal Blocks 5.08 6P HEADER 90DEG Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM HEADER, RIGHT ANGLE, 5.08MM, 6WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;6Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 6路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1788570
Phoenix Contact
Pluggable Terminal Blocks MVSTBU 2 5/ 6-GB-5 0 Conn Terminal Block HDR 6 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK RCPT 6POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 6-GB-5,08 MVSTBU2,5/6-GB-5,08

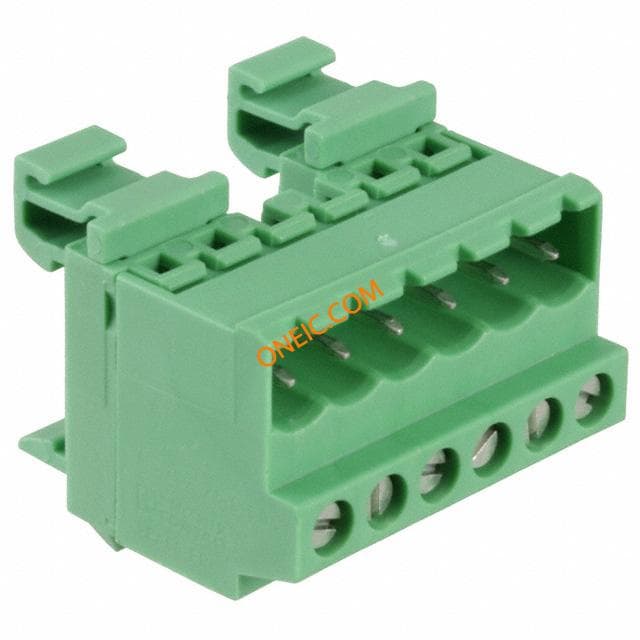

1788761
