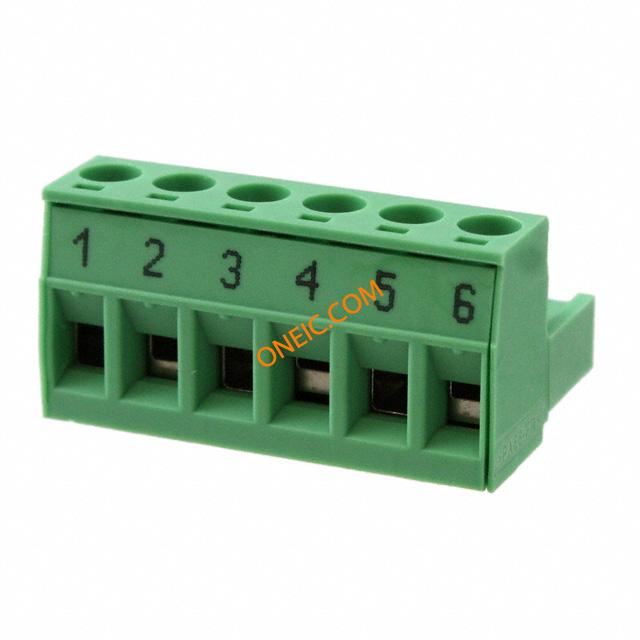

点击放大查看
1758380
| 制造商 | Phoenix Contact GmbH & Co. KG |
| 描述 | Pluggable Terminal Blocks 5.08mm PRE-PRINTED 6P 1-6 LEFT TO RIGHT Conn Terminal Block F 6 POS 5.08mm 12A TERM BLOCK PLUG 6POS STR 5.08MM Printed-circuit board connector MSTB 2,5/ 6-ST-5,08 BD:1-6 Conn;TermBlk;Plug;Screw;6;5.08mm;Green;12A;250V;Pre-Printed Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 6 路 母 绿色 插头, 插入式, 螺钉端接 |
| 分类 |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 宽度 | 25.4mm | 重量 | 0.367907 oz |
| 材料（通用） | 聚酰胺 | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | 母座 |
| 接触镀层 | Tin | 插头进线方向 | 180° |
| 壳体材料 | Polyamide | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 6 |
| 位数 | 6 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Wire to Wire | 连接器性别 | F |
| 系列 | MSTB | 产品特性 | Positions Stamped, Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 6 |
