点击放大查看

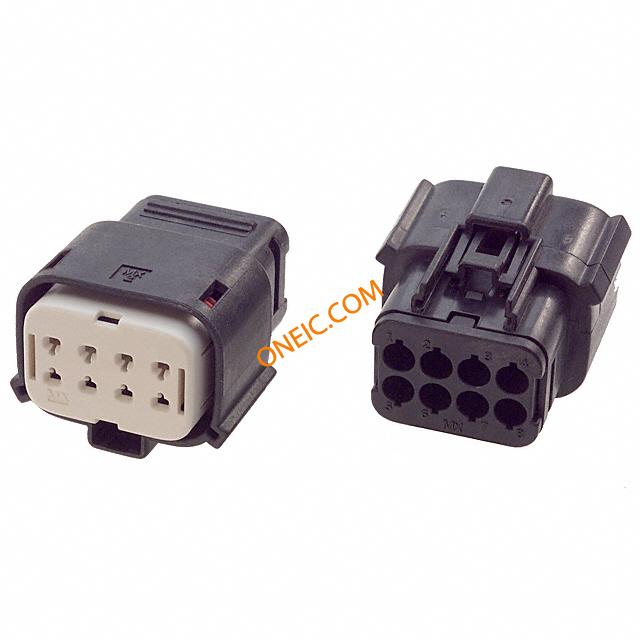

19418-0023
| 制造商 | |
| 描述 | Automotive Connectors RECPT 8P 16-14 AWG dual row CONN RECEPT 8POS 14-16AWG DUAL |
| 分类 |
商业参数
| 产品 | Housings | 商标名 | MX150L |
| 零件号别名 | 0194180023 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 192 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 最大额定电流 | 18 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.230" (5.84mm) |
| 包装方式 | Bulk | 排间距 | 0.236" (6.00mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 紧固类型 | Latch Holder | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Polystyrene (PS) |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 位数 | 8 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 19418 | 产品特性 | IP67 |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
