点击放大查看
19419-0002
| 制造商 | |
| 描述 | Automotive Connectors PLUG 8P 16-14 AWG dual row CONN PLUG 8POS 14-16AWG DUAL 8 way 14-16AWG IP67 plug connector 8WAYPLUGASSY16-14MX150L Molex MX150L 系列 2 行 5.84mm 节距 8 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 产品 | Housings | 商标名 | MX150L |
| 零件号别名 | 0194190002 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 192 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 最大额定电流 | 18 A | ||
机械参数

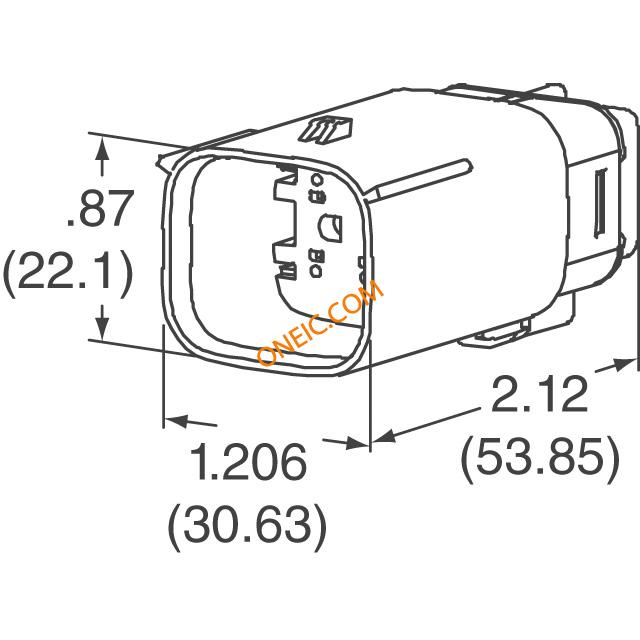

| 深度 | 53.95mm | 间距 | 0.230" (5.84mm) |
| 长度 | 30.62mm | 包装方式 | Bulk |
| 方向 | 直 | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Crimp | 触点数 | 8 |
| 接触件端接 | Crimp | 位数 | 8 |
| 线规或范围 - AWG | 16-14 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | 19419 | 产品特性 | IP67 |
| CAD图纸 | 3D CAD Model | 基础产品编号 | 19419 |
| 适用产品/相关产品 | MX150L 8 Circuit Plug | ||
环境参数
| 工作温度 | - 40 C to + 125 C | ||
