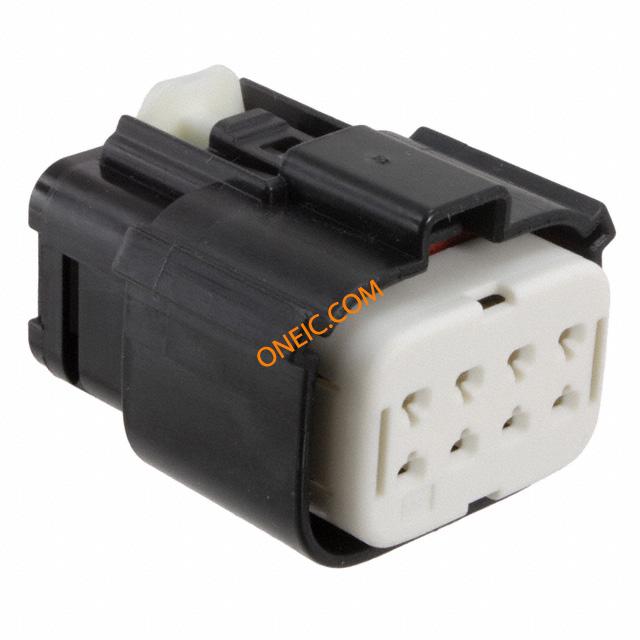

0194180001
| 制造商 | |
| 描述 | Conn Housing RCP 8 POS 5.84mm Crimp ST Bag CONN RCPT 8POS 18-22AWG Connector: rectangular; MX150L; plug; female; PIN:8; w/o terminals |
商业参数
| 标准包装数量 | 192 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 600V | 最大额定电流 | 18/Contact |
| 最小输入电压 | 600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | red | 间距 | 0.230" (5.84mm) |
| 高度 | 28.86 | 重量 | 0.02 kg |
| 包装方式 | Bag | 导线线规 | 18...22AWG |
| 排间距 | 0.236" (6.00mm) | 触头类型 | Female Socket |
| 柱间距 | 5.84mm | 基体材料 | fibreglass reinforced SPS |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Holder |
| 安装样式 | for cable | 排数 | 2 |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 33.83 |
| 包装数量 | 10 | 连接器 - 电缆 | plug |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | ||
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Connector Position Assurance (CPA), IP67 | 适配器系列 | MX150L |
| 单元数量 | 1 | ||
环境参数
| 防护等级 | IP67 | 工作温度 | -40...125°C |
文档与媒体
相关型号
0194200002
Molex, LLC
. 0194200002 - Socket Contact Tin 18-22 AWG Crimp from Molex. from now!
0194290011
Molex, LLC
. 0194290011 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350811
Molex, LLC
. 0194350811 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350812
Molex, LLC
. 0194350812 - 8 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194350813
molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bag Conn Housing PL 8 POS 5.84mm Crimp ST Panel Mount Bag 8POS PLUG PNL MNT 14-16 NO GSKT
19420-0010
Molex
Automotive Connectors SOCKET 22-18 AWG CONN TERM FEMALE 18-22AWG TIN 18-22AWG female terminal FEM TERMINAL TIN PLTD 22-18 L.P. MX150L Crimp contact Female 22...18 AWG, 19420-0010, Molex Molex MX150L 系列 母 压接接线端子, 压接, 镀锡镀镍触点
19419-0002
Molex
Automotive Connectors PLUG 8P 16-14 AWG dual row CONN PLUG 8POS 14-16AWG DUAL 8 way 14-16AWG IP67 plug connector 8WAYPLUGASSY16-14MX150L Molex MX150L 系列 2 行 5.84mm 节距 8 路 直 公 压接连接器外壳
0194170119
Molex, LLC
. 0194170119 - Connector Polarizing Device (Key, Plug, Post) For MX150L Series from Molex. from now!
0194350819
Molex, LLC
. 0194350819 - 8 Position Rectangular Housing Connector Plug Gray 0.230" (5.84mm) from Molex. from now!
0194290045
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk 8-WAY PLUG T/H PANEL MT W/SEAL Connector: rectangular; MX150L; socket; male; PIN:8; w/o terminals
0194190001
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk CONN PLUG 8POS 18-22AWG DUAL Connector: rectangular; MX150L; plug; male; PIN:8; w/o terminals
0194200004
Molex
Contact SKT Crimp ST Cable Mount Reel TERM FEMALE 22-18AWG GOLD
0194290029
Molex
Conn Housing PL 8 POS 5.84mm Crimp ST Bulk 8-WAY PLUG T/H PANEL MNT

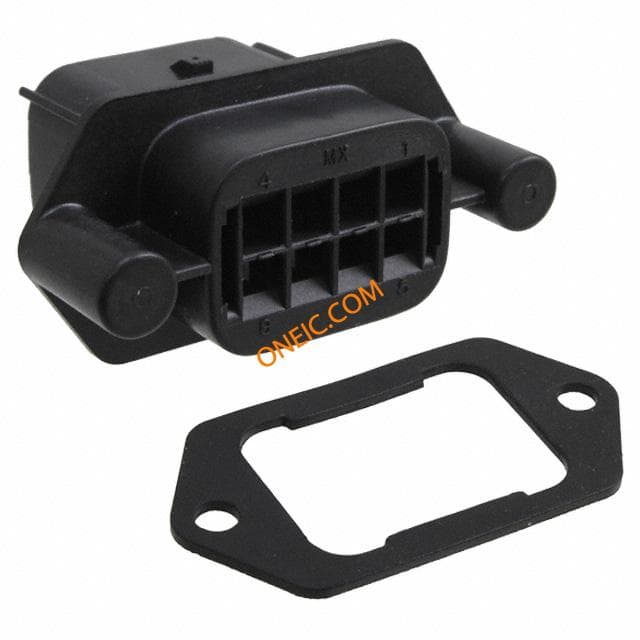

0194290037
