点击放大查看

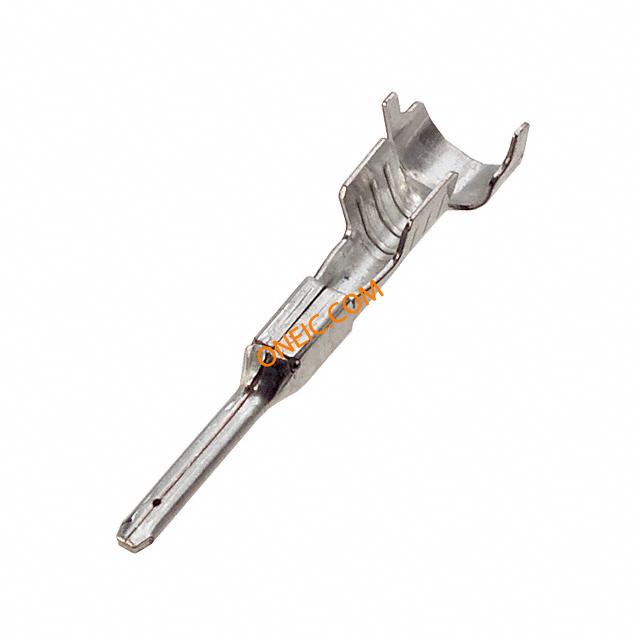

19417-0047
| 制造商 | |
| 描述 | Automotive Connectors PIN 16-14 AWG CONN TERM MALE 14-16AWG TIN 14-16AWG male terminal 19417-0047 MX150L MALE TERM 16-14 AWG Crimp contact Male 16...14 AWG, 19417-0047, Molex Molex MX150L 系列 公 压接接线端子, 压接, 镀锡镀镍触点 |
| 分类 |
商业参数
| 产品 | Terminals | 商标名 | MX150L |
| 零件号别名 | 0194170047 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 8000 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 600 V | 极数 | 1 |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 安装类型 | Crimp |
| 插针或插孔 | Pin | 连接器类型 | 公插 |
| 接触镀层 | Tin | 安装样式 | Wire |
| 触头材料 | Copper Alloy | 端接排数 | 压接 |
| 端接样式 | Crimp | 线规 - 端部 | 16 |
| 接触件端接 | Crimp | 第一连接器极性 | Male |
| 接触镀层厚度 | 74.8µin (1.90µm) | 线规或范围 - AWG | 14-16 |
产品信息
| 连接器性别 | Male | 系列 | 19417 |
| 基础产品编号 | 19417 | ||
