点击放大查看

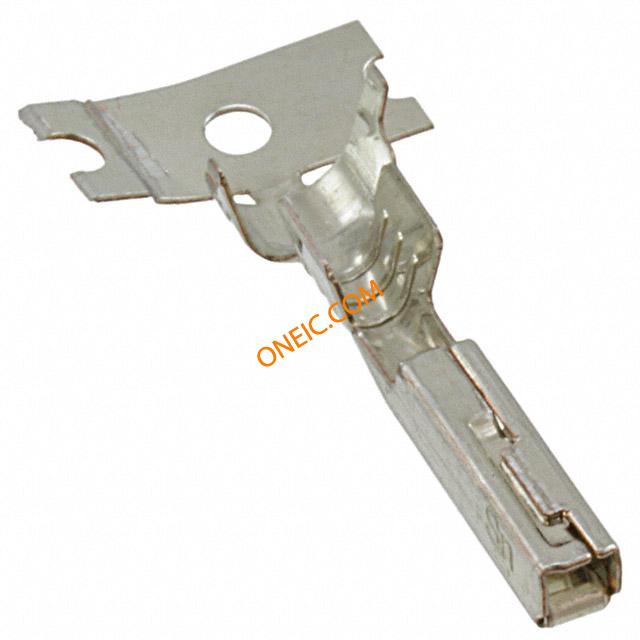

0194200001
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN SOCKET TERM 14-16AWG TIN Contact; female; 14÷16AWG; MX150L; tinned; crimped; for cable; 18A |
| 分类 |
商业参数
| 其他名称 | WM7029CT | 标准包装数量 | 4,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18A | ||
机械参数
| 深度 | 5.97 mm | 间距 | Not Required mm |
| 高度 | 4.62 mm | 重量 | 0.63 g |
| 包装方式 | Reel | 导线线规 | 14-16 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Power | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Recepta... | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 触头材料 | High Performance Alloy |
| 壳体材料 | Not Required | 总长度 | 20.27 mm |
| 包装数量 | 100 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 74.8µin (1.90µm) | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 100 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | MX150L |
| 单元数量 | 1 | ||
