0194180030
| 制造商 | |

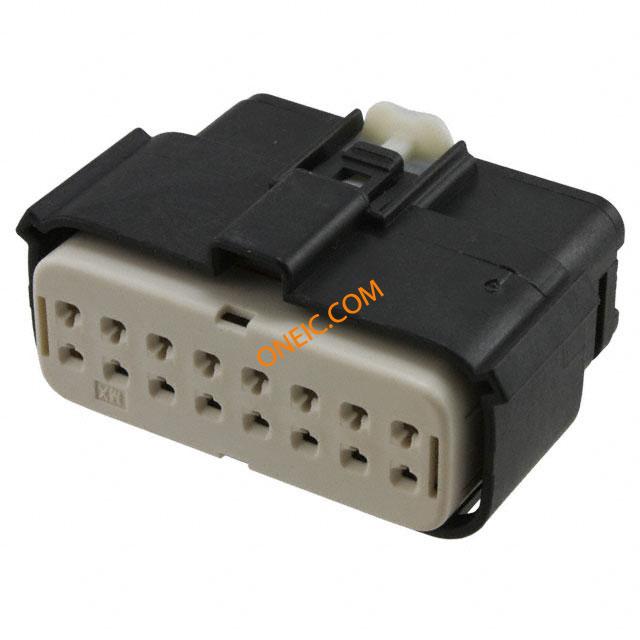

| 描述 | . 0194180030 - 16 Position Rectangular Housing Connector Receptacle 0.230" (5.84mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18/Contact | 最小输入电压 | 600VAC |
机械参数
| 间距 | 0.230" (5.84mm) | 高度 | 28.86 |
| 包装方式 | Bag | 导线线规 | 14-16 |
| 排间距 | 0.236" (6.00mm) | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Holder | 排数 | 2 |
| 总长度 | 57.19 | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Connector Position Assurance (CPA), IP67 |
