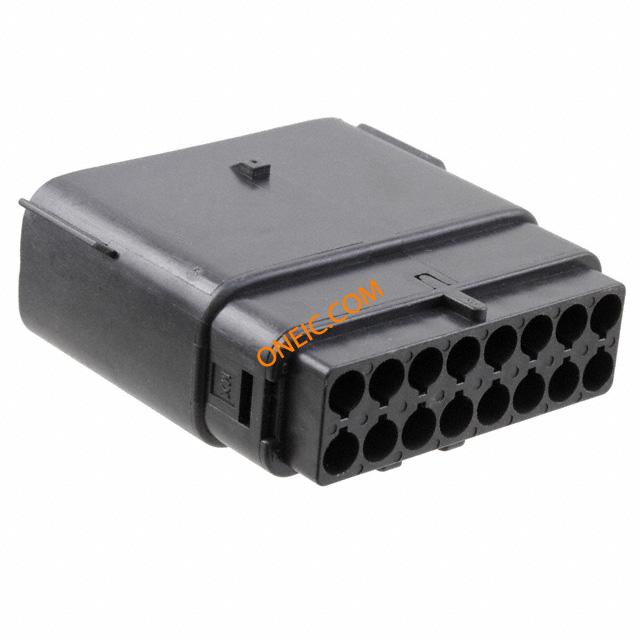

0194190020
| 制造商 | |
| 描述 | . 0194190020 - 16 Position Rectangular Housing Connector Plug 0.230" (5.84mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | 120 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 18/Contact | 最小输入电压 | 600VAC |
机械参数
| 深度 | 53.95 | 间距 | 0.230" (5.84mm) |
| 包装方式 | Bag | 导线线规 | 18-22 |
| 排间距 | 0.236" (6.00mm) | 触头类型 | Male Pin |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 总长度 | 53.99 | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | IP67 |
环境参数
| 工作温度 | -40°C ~ 120°C | ||
