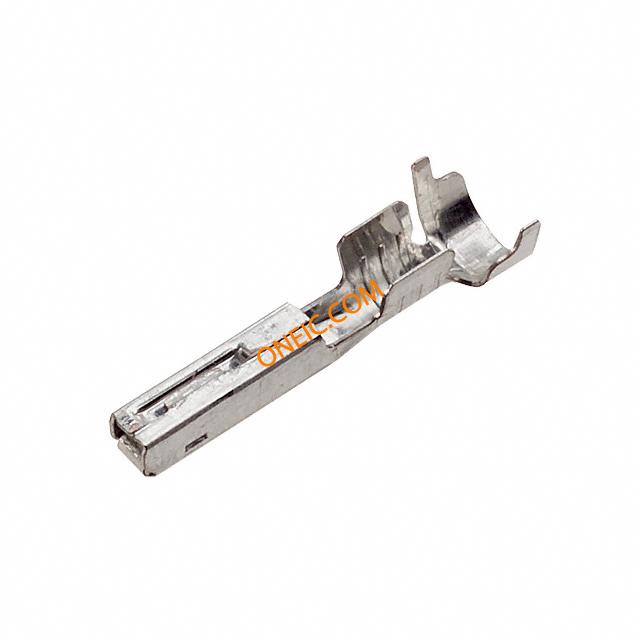

0194200009
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 14-16AWG TIN |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 5.97 mm | 间距 | Not Required mm |
| 高度 | 4.62 mm | 包装方式 | Bag |
| 导线线规 | 14-16 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Power |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 触头材料 | Copper Alloy | 壳体材料 | Not Required |
| 总长度 | 20.27 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 74.8µin (1.90µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 已删除 | Compliant | ||
文档与媒体
相关型号
0640160035
molex
PACKAGE HAND TOOL FOR MX150L TOOL HAND CRIMP PROTO 14-22AWG
0638131500
molex
Connector Accessories Manual Extraction Tool Manual Extraction Tool TOOL EXTRACTION
0194180007
molex
Conn Housing RCP 2 POS 5.84mm Crimp ST Bulk CONN 2 WAY RCPT 16-14AWG MX150L
19418-0017
Molex
Automotive Connectors RECPT 2P 16-14 AWG single row CONN RECEPT 2POS 14-16AWG SINGLE
19418-0019
Molex
Automotive Connectors RECPT 4P 16-14 AWG dual row CONN RECEPT 4POS 14-16AWG DUAL

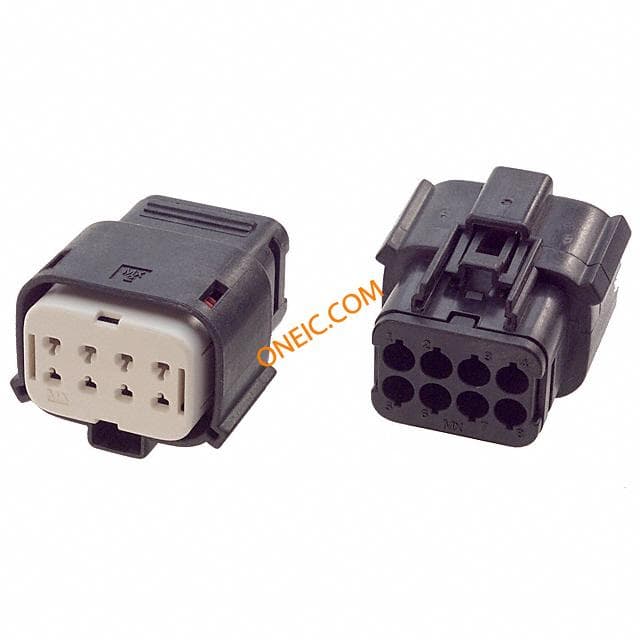

19418-0023
Molex
Automotive Connectors RECPT 8P 16-14 AWG dual row CONN RECEPT 8POS 14-16AWG DUAL
19418-0021
Molex
Automotive Connectors RECPT 6P 16-14 AWG dual row CONN RECEPT 6POS 14-16AWG DUAL
19418-0025
Molex
Automotive Connectors RECPT 10P 16-14 AWG dual row CONN RECEPT 10POS 14-16AWG DUAL
76650-0152
Molex
Automotive Connectors MX150L PANEL MNT KIT KIT CONN MX150L PANEL MNT MX150L CONNECTOR KIT DUAL ROW PANEL MNTSEALED PLUG & RECEPT, IP-67

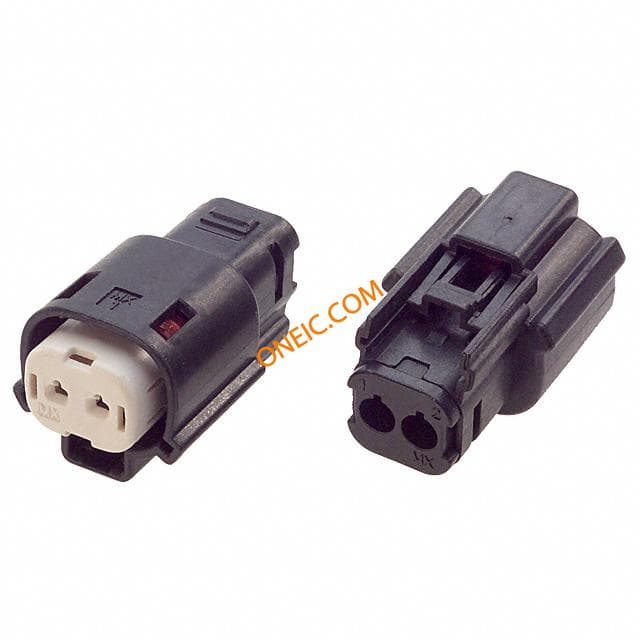

0194180017
Molex
Conn Housing RCP 2 POS 5.84mm Crimp ST Bulk CONN RECEPT 2POS 14-16AWG SINGLE

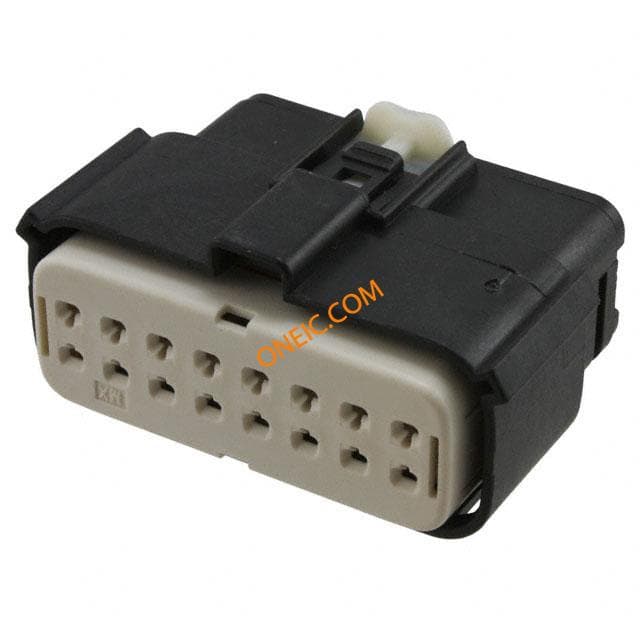

0194180030
