0500588100
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk |
| 分类 |
商业参数
| 交货时间 | 55 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 1 A |
| 最小供电电压 | 125V | ||
机械参数
| 深度 | 1.35 mm | 间距 | Not Required mm |
| 高度 | 1.62 mm | 重量 | 0.02 g |
| 包装方式 | Bag | 导线线规 | 28-32 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 1.25mm |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 封装形式 | in bulk | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 3.3 mm |
| 包装数量 | 1000 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 横截面形状 | 0.03...0.08mm2 | 接触镀层厚度 | 35µin (0.90µm) |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 1000 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | PicoBlade |
| 单元数量 | 1 | 行业别名 | 50058-8100, 500588100 |
| 工具类型/特性 | MX-63819-0300, MX-63819-0400 | 适用产品/相关产品 | 0500588000 |
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
相关型号
0510210400
Molex, LLC
. 0510210400 - 4 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
0639103700
molex
T2 TERMINATOR ASSEMBLY T2 Terminator Tooling Die
0510211500
molex
Conn Housing RCP 15 POS 1.25mm Crimp ST Bag CONN HOUSING 15POS 1.25MM Plug; wire-board; female; PIN:15; w/o terminals; 1.25mm; for cable
0510211100
Molex, LLC
. 0510211100 - 11 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
0510210200
molex
Conn Housing RCP 2 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 1.25MM NATURAL Plug; wire-board; female; PIN:2; w/o terminals; 1.25mm; for cable
0510210700
molex
Conn Housing RCP 7 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 7 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 7POS 1.25MM NATURAL Plug; wire-board; female; PIN:7; w/o terminals; 1.25mm; for cable
0510211300
molex
Conn Housing RCP 13 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 13 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 13POS 1.25MM
0510210500
molex
Conn Housing RCP 5 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 5 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 5POS 1.25MM NATURAL Plug; wire-board; female; PIN:5; w/o terminals; 1.25mm; for cable
0510210800
molex
Conn Housing RCP 8 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 8 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 8POS 1.25MM NATURAL Plug; wire-board; female; PIN:8; w/o terminals; 1.25mm; for cable
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0510210600
molex
Conn Housing RCP 6 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 6 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 1.25MM NATURAL Plug; wire-board; female; PIN:6; w/o terminals; 1.25mm; for cable
0510211000
Molex, LLC
. 0510211000 - 10 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
0639003700
molex
FINE ADJUST APPLICATOR FineAdjust 1.25mm Pitch Crimp Terminal, 28-32 AWG TOOL CRIMPER 28-32AWG 1.25MM
0510211200
Molex, LLC
. 0510211200 - 12 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now!
0510211400
molex
Conn Housing RCP 14 POS 1.25mm Crimp ST Bag CONN HOUSING 14POS 1.25MM Plug; wire-board; female; PIN:14; w/o terminals; 1.25mm; for cable
57072-6000
Molex
Hand Tools EXTRACTION TOOL TOOL CONTACT EXTRACTION 1.25MM

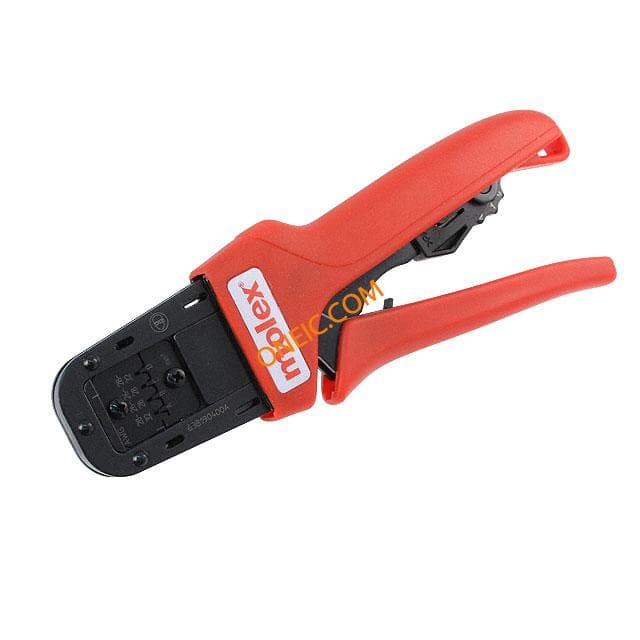

0638190400
