点击放大查看

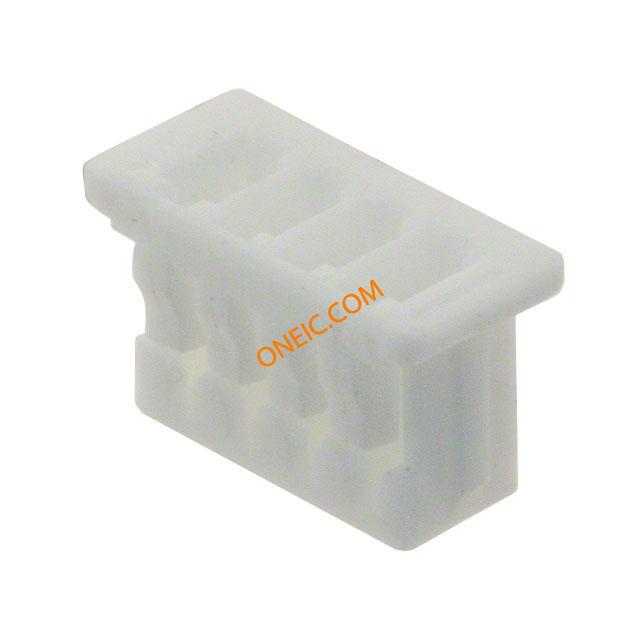

0510210400
| 制造商 | Molex, LLC |
| 描述 | . 0510210400 - 4 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 58 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压值 | 125V | 最大额定电流 | 1/Contact A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 3.95 mm |
| 间距 | 1.25 mm | 高度 | 3.2 mm |
| 重量 | 0.04 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 1.25mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing, Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 6.75 mm | 包装数量 | 2000 |
| 连接器 - 电缆 | plug | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 外壳与棱镜材料 | polyamide | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 2000 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | PicoBlade | 单元数量 | 1 |
| 行业别名 | 51021-0400, 510210400 | ||
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
相关型号
0530480410
molex
Conn Shrouded Header HDR 4 POS 1.25mm Solder RA Thru-Hole Tray CONN HEADER 4POS 1.25MM R/A TIN WIRE-BOARD CONNECTOR HEADER 4POS, 1.25MM Socket; wire-board; male; PIN:4; 1.25mm; THT; PicoBlade; 1A; tinned
0530470410
molex
Conn Wire to Board HDR 4 POS 1.25mm Solder ST Thru-Hole Tray CONN HEADER 4POS 1.25MM VERT TIN Socket; wire-board; male; PIN:4; 1.25mm; THT; PicoBlade; 1A; tinned
0500588100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk
0510470400
molex
Conn Housing PL 4 POS 1.25mm Crimp ST Bag Conn Housing M 4 POS 1.25mm Crimp ST Cable Mount Bag 1.25 W/W CONN PLUG HSG 4CKT Conn Housing PL 4 POS 1.25mm ST Bag
0500798100
Molex, LLC
. 0500798100 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now!
0500588000
Molex, LLC
. 0500588000 - Socket Contact Tin 28-32 AWG Crimp from Molex. from now!

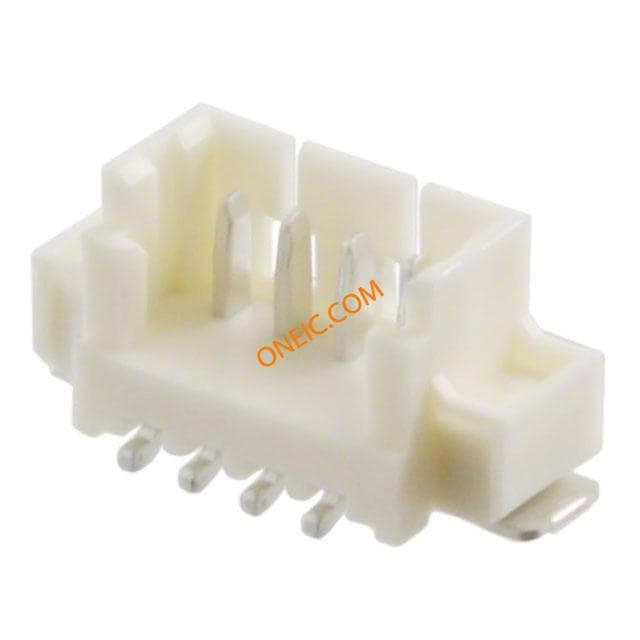

0533980471
molex
Conn Wire to Board HDR 4 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 4POS 1.25MM VERT SMD

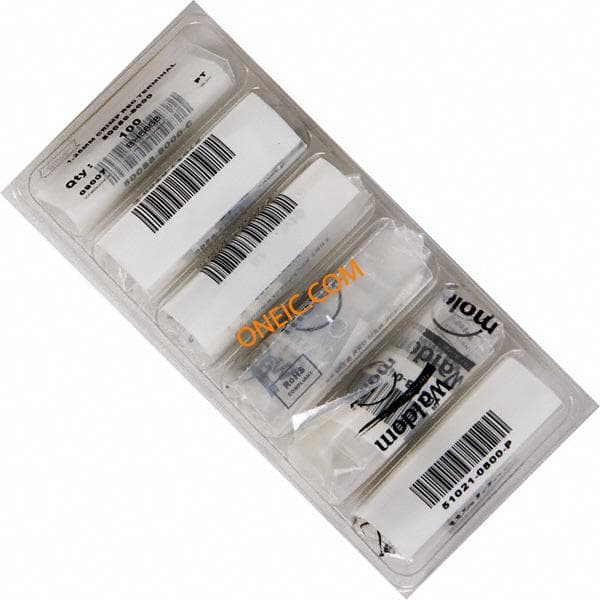

76650-0126
molex
COMPONENT KITS, WIRE TO BOARD KIT 2,3,4,6,8POS 1A SURFACE MOUNT RECEPTACLE, VERTICAL HEADER 1.25MM PITCH 125V 32-28 WIRE SIZE KIT PICOBLADE 1.25MM VERT HDR Kit Description:SMT Friction Lock Vertical Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:200 PICOBLADE CONNECTOR KIT SMT FRICTION LOCK VERT HEADER & RECEPT

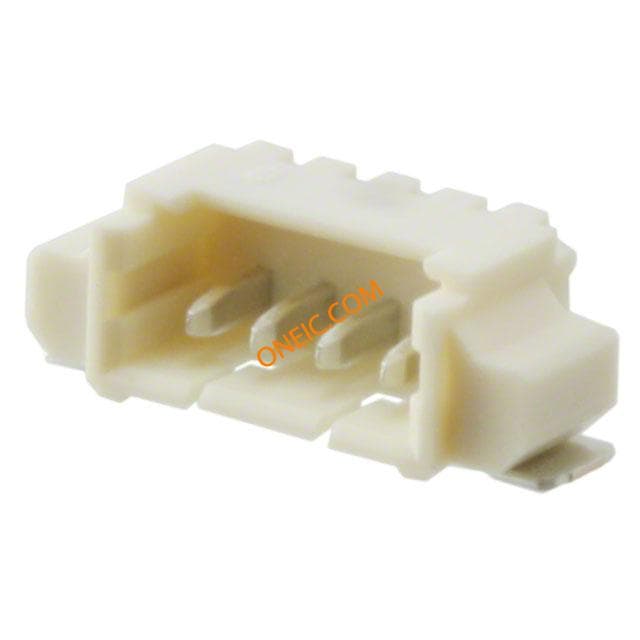

0532610471
