点击放大查看

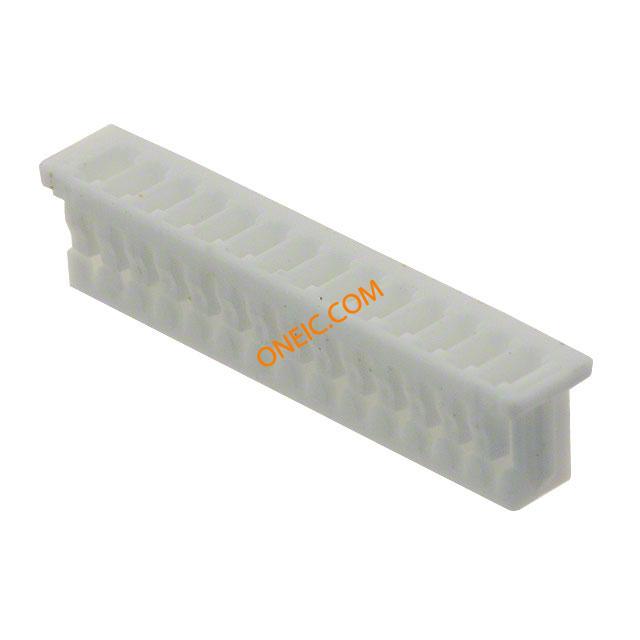

0510211400
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 14 POS 1.25mm Crimp ST Bag CONN HOUSING 14POS 1.25MM Plug; wire-board; female; PIN:14; w/o terminals; 1.25mm; for cable |
| 分类 |
商业参数
| 交货时间 | 56 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压值 | 125V | 最大额定电流 | 1/Contact |
| 最小输入电压 | 125V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Natural | 深度 | 3.95 |
| 间距 | 1.25 mm | 高度 | 3.2 |
| 重量 | 0.14 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 1.25mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing, Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 19.25 | 包装数量 | 5 |
| 连接器 - 电缆 | plug | 触点数 | 14 |
| 接触件端接 | Crimp | 位数 | 14 |
| 外壳与棱镜材料 | polyamide | 第一连接器安装特征 | 1x14 |
产品信息
| SPG | 5 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | PicoBlade | 单元数量 | 1 |
| 行业别名 | 51021-1400, 510211400 | ||
环境参数
| 工作温度 | -40...85°C | ||
文档与媒体
相关型号
0500588100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk
0533981471
Molex, LLC
. 0533981471 - Connector Header Surface Mount 14 position 0.049" (1.25mm) from Molex. from now!

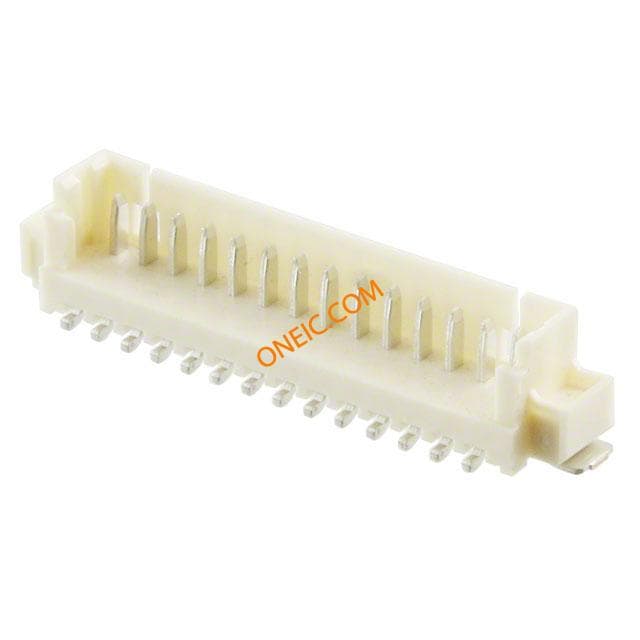

0532611471
Molex, LLC
. 0532611471 - Connector Header Surface Mount, Right Angle 14 position 0.049" (1.25mm) from Molex. from now!
0500798100
Molex, LLC
. 0500798100 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now!
0500588000
Molex, LLC
. 0500588000 - Socket Contact Tin 28-32 AWG Crimp from Molex. from now!
0530481410
Molex, LLC
. 0530481410 - Connector Header Through Hole, Right Angle 14 position 0.049" (1.25mm) from Molex. from now!
0500798000
Molex, LLC
. 0500798000 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now!
0500588300
Molex, LLC
. 0500588300 - Socket Contact Tin 26-30 AWG Crimp from Molex. from now!

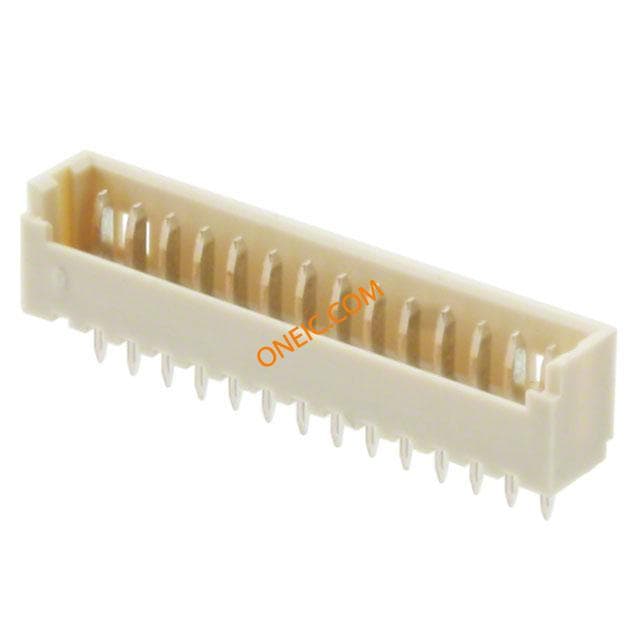

53047-1410
