首页产品分类连接器解决方案矩形连接器FPC/FFC矩形连接器0510210600

点击放大查看

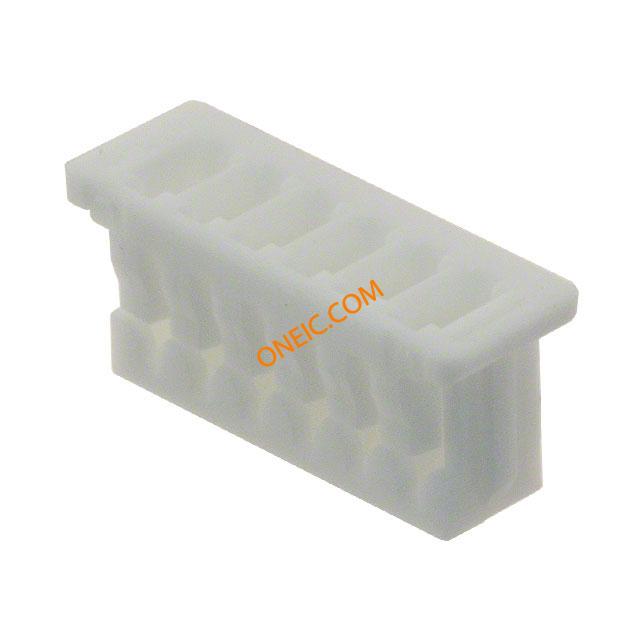

0510210600

制造商	Molex, LLC
描述	Conn Housing RCP 6 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 6 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 1.25MM NATURAL Plug; wire-board; female; PIN:6; w/o terminals; 1.25mm; for cable
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	57 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

额定电压值	125V	最大额定电流	1/Contact
最小输入电压	125V	连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Natural	深度	3.95
间距	1.25 mm	高度	3.2
重量	0.06 g	包装方式	Bag
触头类型	Female Socket	柱间距	1.25mm
外壳颜色	Natural	安装类型	Straight
连接器类型	Housing, Receptacle	安装样式	for cable
排数	1	壳体材料	Polybutylene Terephthalate
总长度	9.25	包装数量	2000
连接器 - 电缆	plug	触点数	6
接触件端接	Crimp	位数	6
外壳与棱镜材料	polyamide	第一连接器安装特征	1x6

产品信息

SPG	2000	备注	Contacts Not Provided
类型	Housing	连接器性别	RCP
适配器系列	PicoBlade	单元数量	1
行业别名	51021-0600, 510210600

环境参数

工作温度

-40...85°C

文档与媒体

PDF 文档

0510210600_CRIMP_HOUSINGS.pdf

PDF 文档

51021-xx0x, 51021-xx00

相关型号

0530470610

molex

Conn Wire to Board HDR 6 POS 1.25mm Solder ST Thru-Hole Tray CONN HEADER 6POS 1.25MM VERT TIN Socket; wire-board; male; PIN:6; 1.25mm; THT; PicoBlade; 1A; tinned

¥1.8945

详情

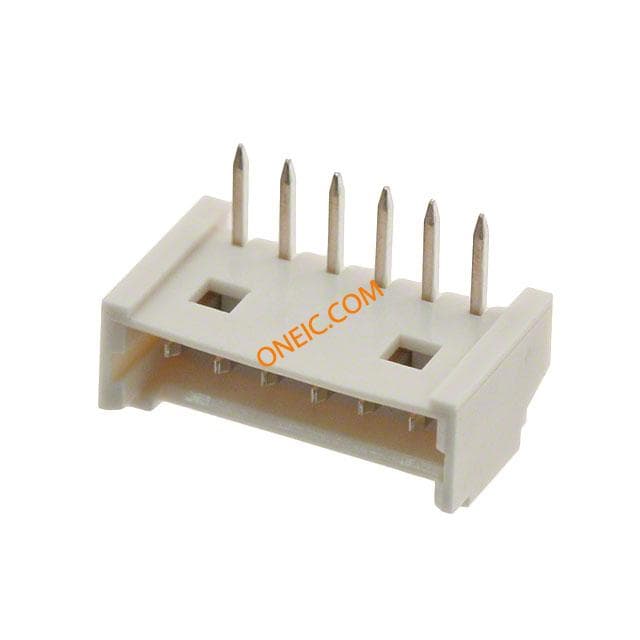

0530480610

molex

Conn Shrouded Header HDR 6 POS 1.25mm Solder RA Thru-Hole Tray CONN HEADER 6POS 1.25MM R/A TIN Socket; wire-board; male; PIN:6; 1.25mm; THT; PicoBlade; 1A; tinned

¥2.5289

详情

0500588100

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk

¥0.9133

详情

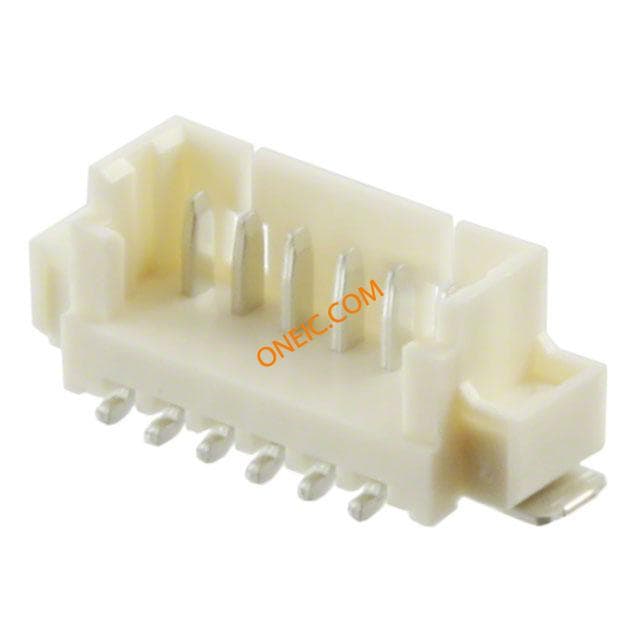

0533980671
