点击放大查看

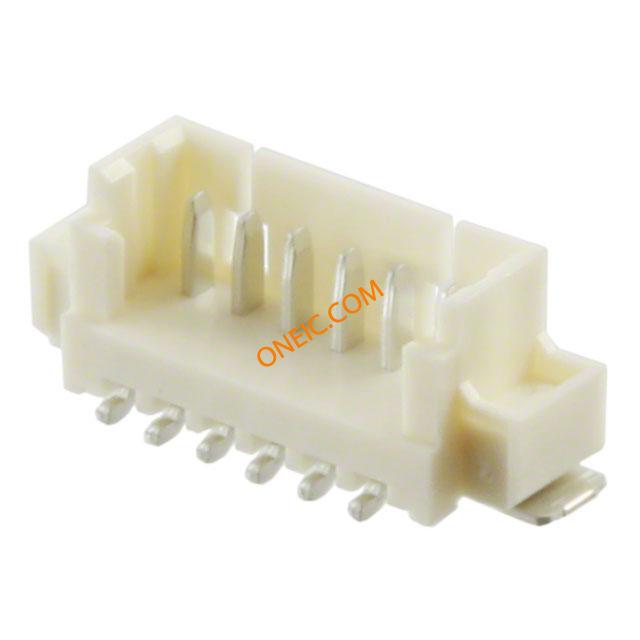

0533980671
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 6 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 6POS 1.25MM VERT SMD |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | WM7610CT | 标准包装数量 | Cut Tape |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 1/Contact A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
机械参数
| 颜色 | Natural | 深度 | 3.7 mm |
| 间距 | 0.049" (1.25mm) | 高度 | 4.7 mm |
| 包装方式 | Embossed Tape and Reel | 端接方式 | Solder |
| 触头类型 | Blade Pin | 外壳颜色 | Natural |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 安装样式 | Surface Mount |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 4/6 | 总长度 | 12.65 mm |
| 触点数 | 6 | 位数 | 6 |
| 接触镀层厚度 | 39µin (1.00µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Solder Retention | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
PDF 文档
PDF 文档
相关型号
0510210600
molex
Conn Housing RCP 6 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 6 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 6POS 1.25MM NATURAL Plug; wire-board; female; PIN:6; w/o terminals; 1.25mm; for cable
¥2.3876
详情

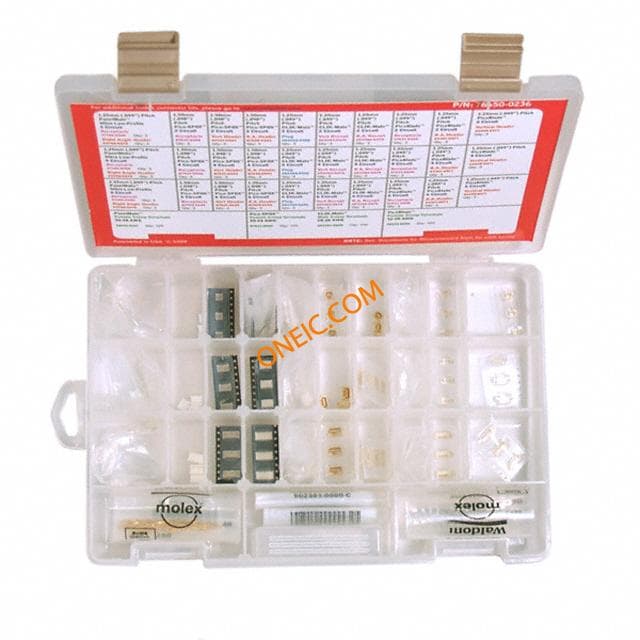

76650-0236
