点击放大查看

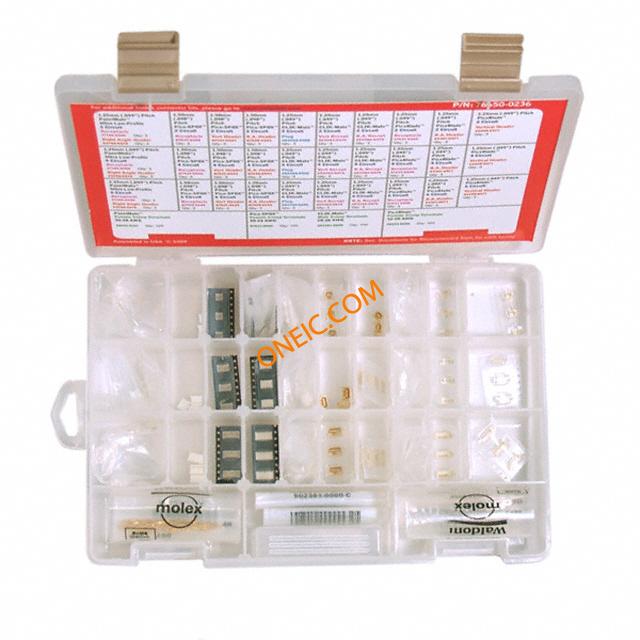

76650-0236
| 制造商 | Molex, LLC |
| 描述 | COMPONENT KITS, WIRE TO BOARD KIT 2,4,6POS 1.5-3A,1A THROUGH HOLE, SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 1.25MM PITCH 125V,30V,50V 22-26,22-30,24-30,30-28,32-30 WIRE SIZE KIT CONN MULTI WIRE-BOARD 499PC Headers & Wire Housings Off the Board Kit SMT Solution COMPONENT KITS, WIRE TO BOARD KIT 2,4,6POS 1.5-3A,1A THROUGH HOLE, SURFACE MOUNT PLUGS,RECEPTACLE,RIGHT ANGLE HEADER, VERTICAL HEADER 1.25MM PITCH 125V,30V,50V ... |
| 分类 |
商业参数
| 商标名 | CLIK-Mate, PanelMate, PicoBlade, Pico-SPOX | 标准包装规格 | 1 |
| 零件号别名 | 0766500236 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V, 30 V, 50 V | 最大额定电流 | 1.5 A to 3 A, 1 A |
机械参数
| 包装方式 | Plastic Box with Bin Guide | 端接样式 | SMD |
产品信息
| 系列 | 76650 | 值 | 499 pcs - Assorted 2 ~ 4, 6 Header, Housing, 24 ~ 32 AWG Contacts |
| 套件类型 | Rectangular - Contact, Header, Housing | 产品子类型 | Connector Kits |
文档与媒体
