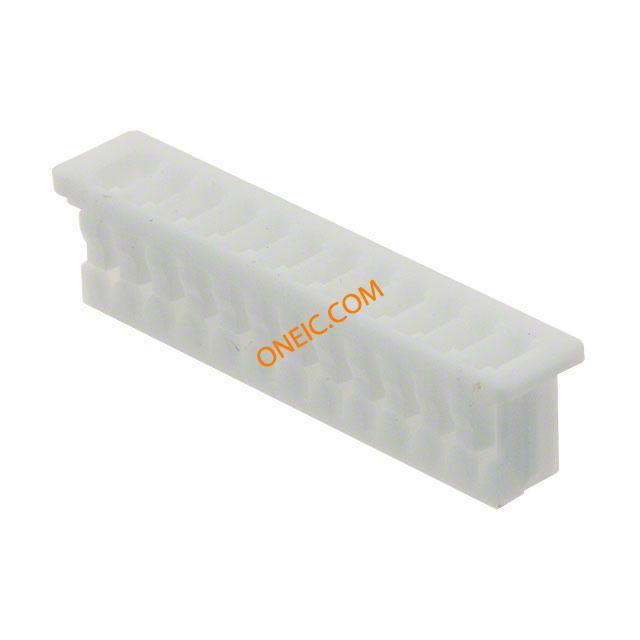

0510211200
| 制造商 | Molex, LLC |
| 描述 | . 0510211200 - 12 Position Rectangular Housing Connector Receptacle Natural 0.049" (1.25mm) from Molex. from now! |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压值 | 125V | 最大额定电流 | 1/Contact A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Natural | 深度 | 3.95 mm |
| 间距 | 1.25 mm | 高度 | 3.2 mm |
| 重量 | 0.11 g | 包装方式 | Bag |
| 触头类型 | Female Socket | 柱间距 | 1.25mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing, Receptacle | 安装样式 | for cable |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 16.75 mm | 包装数量 | 500 |
| 连接器 - 电缆 | plug | 触点数 | 12 |
| 接触件端接 | Crimp | 位数 | 12 |
| 外壳与棱镜材料 | polyamide | 第一连接器安装特征 | 1x12 |
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | PicoBlade | 单元数量 | 1 |
环境参数
| 工作温度 | -40C to 85C | ||
文档与媒体
相关型号
0500588100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 28-32AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.03÷0.08mm2; PicoBlade; tinned; crimped; in bulk
0532611271
Molex, LLC
. 0532611271 - Connector Header Surface Mount, Right Angle 12 position 0.049" (1.25mm) from Molex. from now!

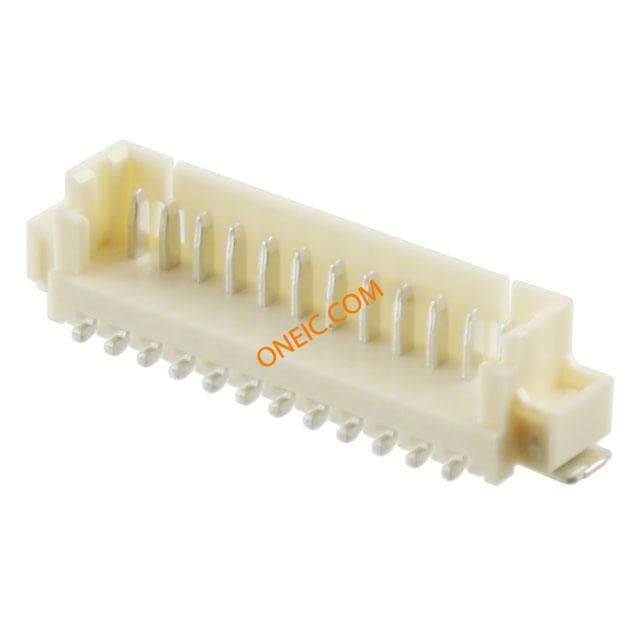

0533981271
molex
Conn Wire to Board HDR 12 POS 1.25mm Solder ST SMD Embossed T/R CONN HEADER 12POS 1.25MM VRT SMD Socket; wire-board; male; PIN:12; 1.25mm; SMT; PicoBlade; 1A; tinned

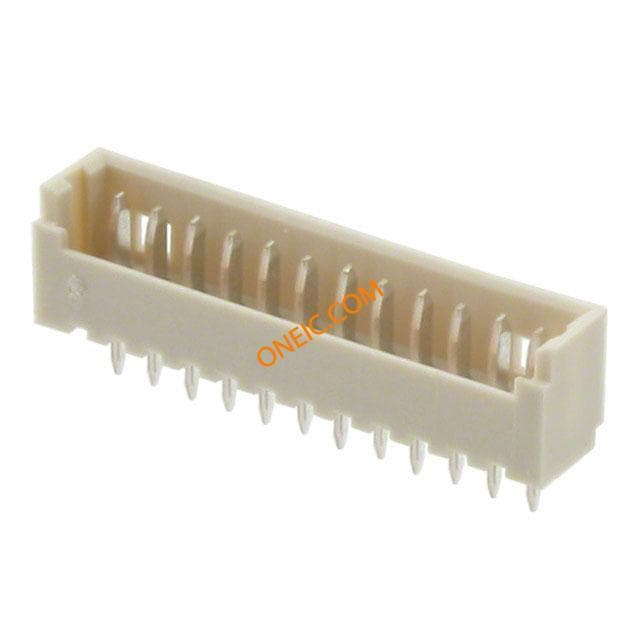

0530471210
molex
Conn Shrouded Header HDR 12 POS 1.25mm Solder ST Thru-Hole Tray CONN HEADER 12POS 1.25MM STR TIN Socket; wire-board; male; PIN:12; 1.25mm; THT; PicoBlade; 1A; tinned
0500798100
Molex, LLC
. 0500798100 - Socket Contact Tin 26-28 AWG Crimp from Molex. from now!
0500588000
Molex, LLC
. 0500588000 - Socket Contact Tin 28-32 AWG Crimp from Molex. from now!

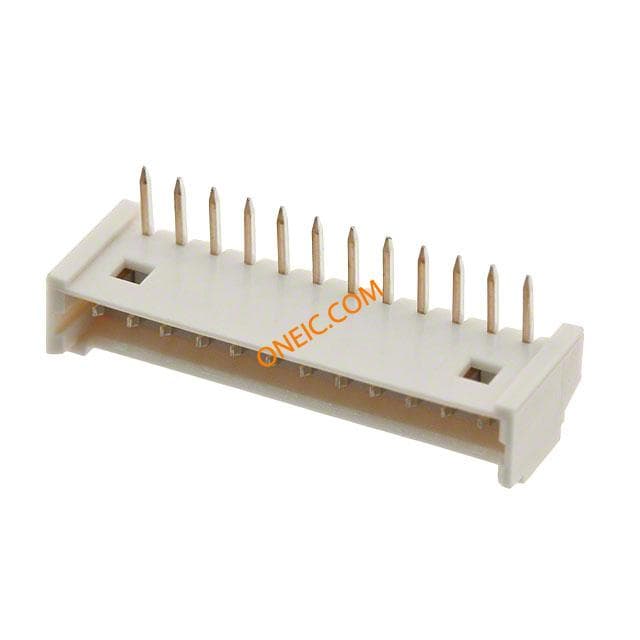

53048-1210
