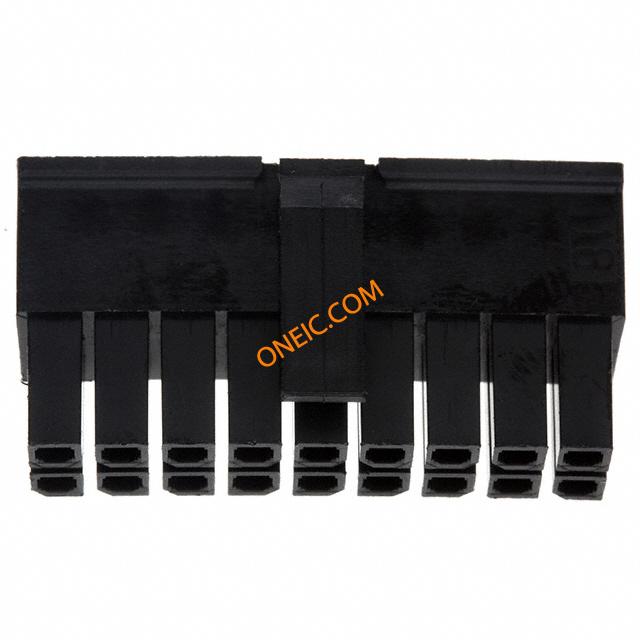

0430251800
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 18 POS 3mm Crimp ST Bag Conn Housing F 18 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 18POS 3MM DUAL ROW Plug; wire-board; female; 3mm; PIN:18; w/o terminals; 5A; UL94V-0 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 5A |
| 最小输入电压 | 600VDC|600VAC | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 14 |
| 间距 | 3 mm | 高度 | 11.56 |
| 重量 | 1.92 g | 材料（通用） | polyester |
| 钻孔直径 | 24mm | 包装方式 | Bag |
| 排间距 | 0.118" (3.00mm) | 触头类型 | Female Socket |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 2 | 锁定特性 | lock |
| 壳体材料 | Nylon | 总长度 | 27.85 |
| 包装数量 | 117 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
| 第一连接器安装特征 | 2x9 | ||
产品信息
| SPG | 117 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 适配器系列 | Micro-Fit 3.0 | 单元数量 | 1 |
环境参数
| 工作温度 | -40...105°C | ||
文档与媒体
相关型号
0430300003
Molex, LLC
. 0430300003 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430451810
molex
Conn Wire to Board HDR 18 POS 3mm Solder RA SMD T/R Conn Wire to Board HDR 18 POS 3mm Solder RA SMD Embossed T/R MICROFIT 3.0 RA SMT/NAIL DR 15AU
0430300001
Molex, LLC
. 0430300001 - Socket Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430300002
Molex, LLC
. 0430300002 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430300006
molex
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP
0430300008
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD
0430300009
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430300010
molex
Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

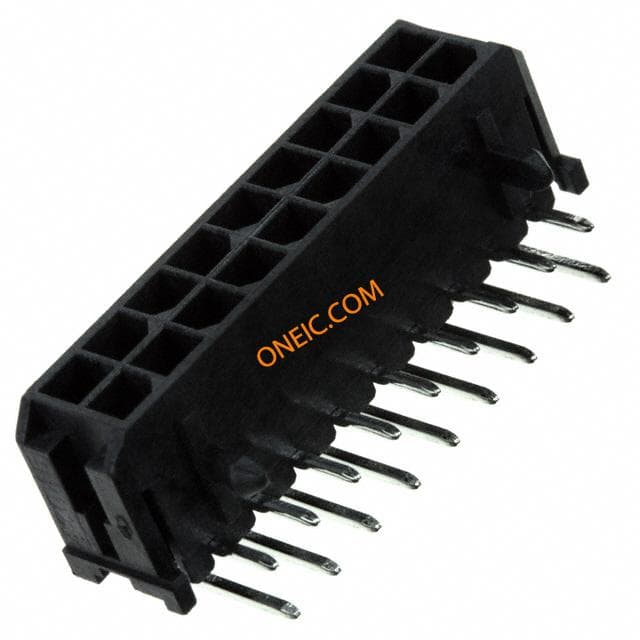

0430451800
molex
Conn Wire to Board HDR 18 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 18POS 3MM R/A TIN Socket; wire-board; male; 3mm; PIN:18; tinned; 5A; UL94V-0; 250V; THT

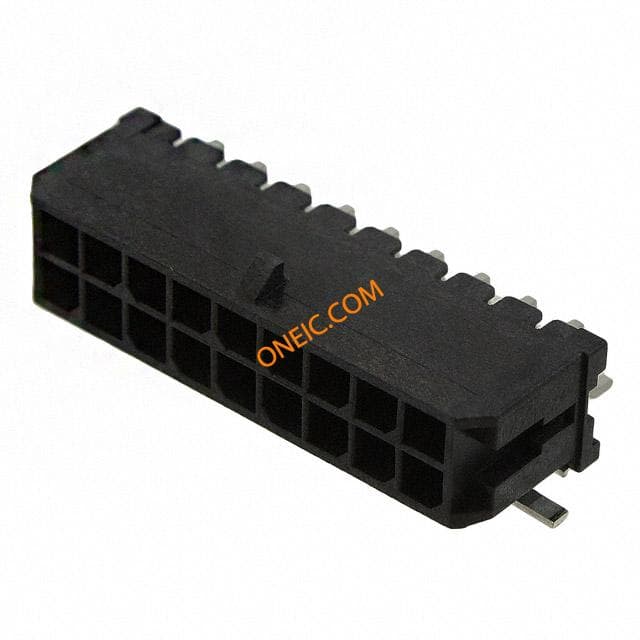

0430451811
Molex
Conn Wire to Board HDR 18 POS 3mm Solder RA SMD Embossed T/R CONN HEADER 18POS R/A GOLD SMD
0430451812
Molex
Conn Power HDR 18 POS 3mm Solder ST Thru-Hole 18 Terminal 1 Port Tray CONN HEADER 18POS 3MM VERT TIN Conn Wire to Board HDR 18 POS 3mm Solder ST Thru-Hole Tray

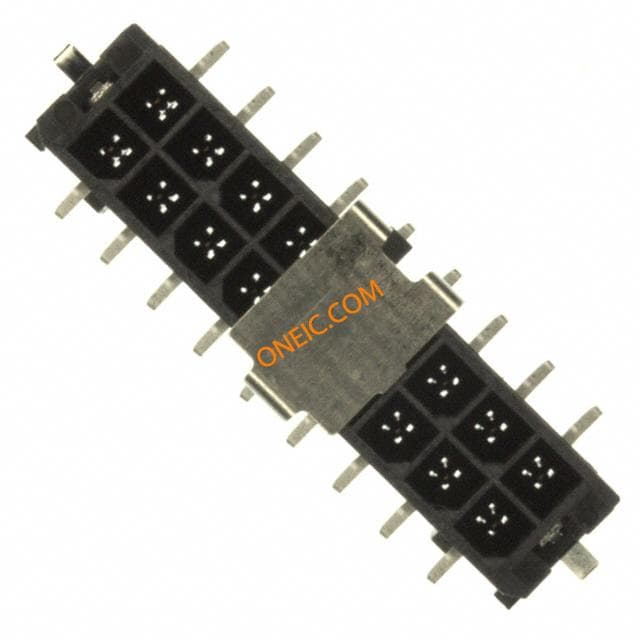

0430451819
Molex
Conn Wire to Board HDR 18 POS 3mm Solder ST SMD Embossed T/R CONN HEADER 18POS 3MM STR SMD AU

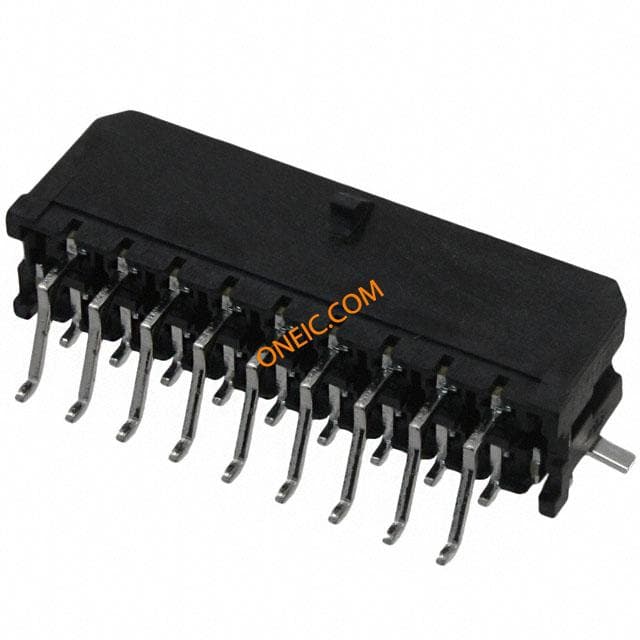

0430451809
Molex
Conn Wire to Board HDR 18 POS 3mm Solder RA SMD Embossed T/R CONN HEADER R/A SMD TIN 18CKT Socket; wire-board; male; 3mm; PIN:18; tinned; 5A; Pin layout:2x9

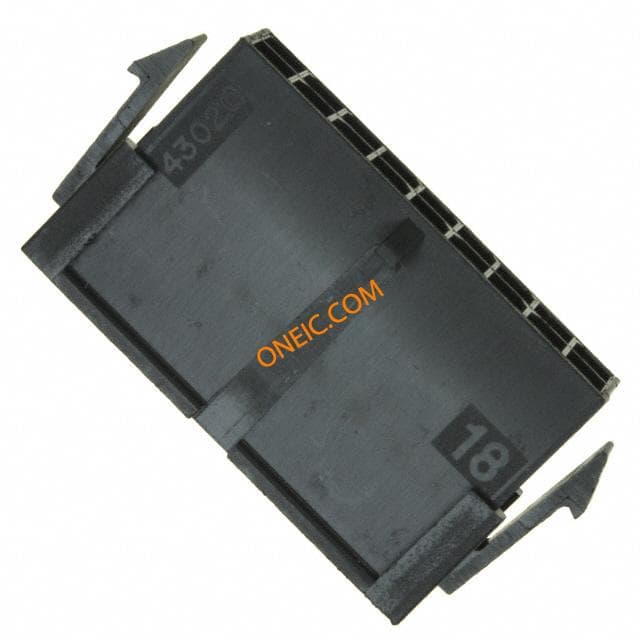

43020-1800
molex
Conn Housing PL 18 POS 3mm Crimp ST Bag CONN PLUG 18POS 3MM DUAL ROW 2 x 9 way panel mount plug Micro-Fit Headers & Wire Housings 3MM MICRO-FIT 18 CKT Dual Row 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, with Panel Mount Ears, 18 Circuits PLUG, PANEL MOUNT, 18WAY Male contact housing dual row Pitch3 mm Poles 2 x 9 Micro-Fit, 43020-1800, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 18 路 直 公 面板安装 压接连接器外壳
0430451813
Molex, LLC
. 0430451813 - Connector Header Through Hole 18 position 0.118" (3.00mm) from Molex. from now!

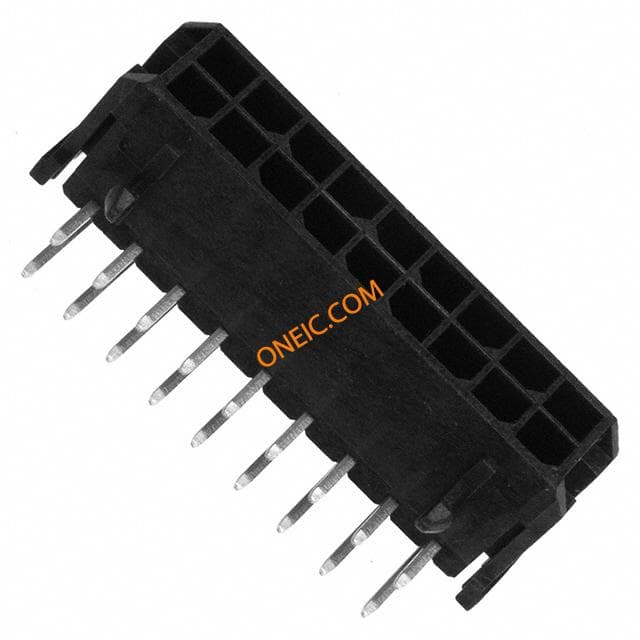

0430451802
Molex, LLC
. 0430451802 - Connector Header Through Hole, Right Angle 18 position 0.118" (3.00mm) from Molex. from now!
0430451814
Molex
Conn Power HDR 18 POS 3mm Solder ST Thru-Hole 18 Terminal 1 Port Tray CONN HEADER 18POS 3MM VERT GOLD

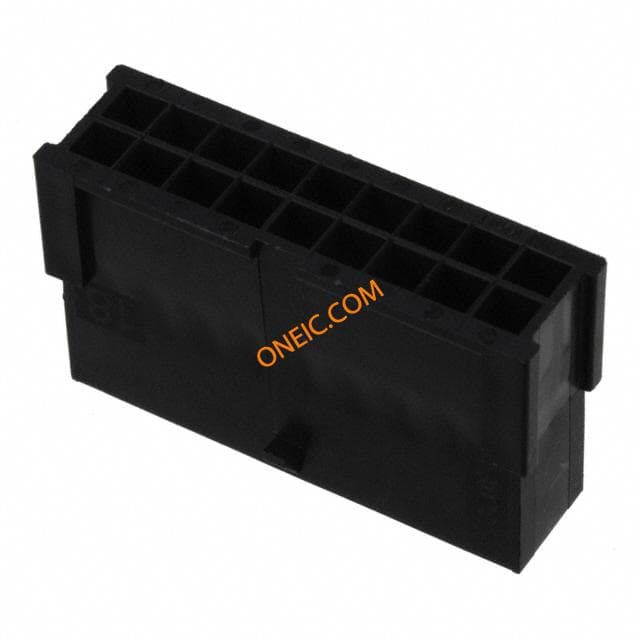

43020-1801
Molex Connector Corporation
CONN PLUG 18POS 3MM VERT DUAL Headers & Wire Housings 18CKT PLUG HSG FREE HANGING DR 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount Ears, 18 Circuits

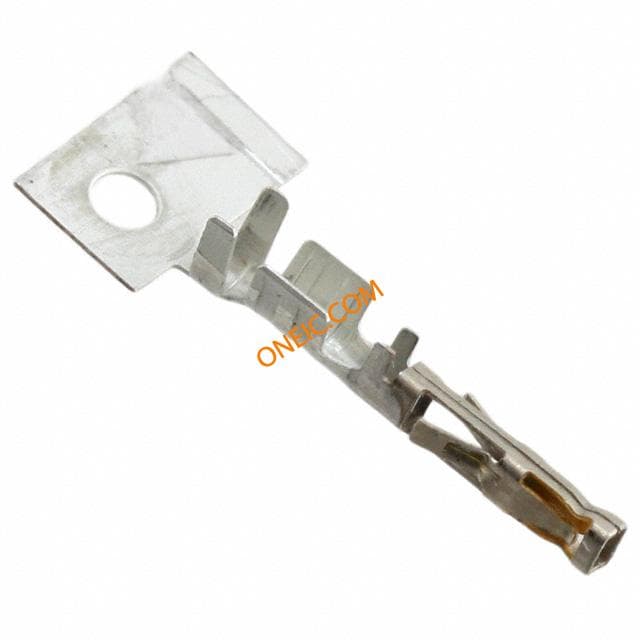

0462355002
