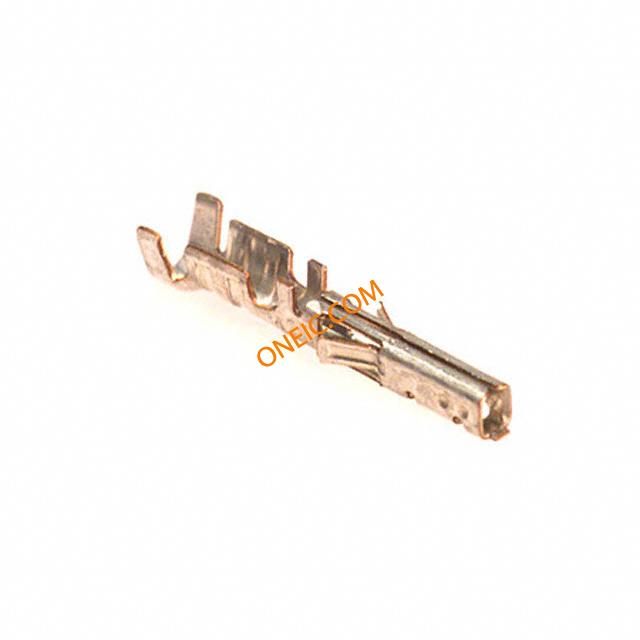

0430300010
| 制造商 | Molex, LLC |
| 描述 | Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250V | ||
机械参数
| 深度 | 2.1 mm | 间距 | Not Required mm |
| 高度 | 1.91 mm | 重量 | 0.1 g |
| 包装方式 | Bag | 导线线规 | 26-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 外壳颜色 | Not Required |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 封装形式 | in bulk |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 11 mm | 包装数量 | 1500 |
| 连接器 - 电缆 | contact | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 40µin (1.02µm) |
| 线规或范围 - mm² | 0.05...0.128mm2 | 触点材料 - 镀层 | tinned |
产品信息
| SPG | 1500 | 类型 | Power |
| 连接器性别 | F | 适配器系列 | Micro-Fit 3.0 |
| 单元数量 | 1 | 工具类型/特性 | MX-63812-0800, MX-63819-0000 |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0430250200
molex
Conn Housing RCP 2 POS Crimp ST Bag CONN RECEPT 2POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:2; w/o terminals; 5A; UL94V-0
0430250600
Molex, LLC
. 0430250600 - 6 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450200
Molex, LLC
. 0436450200 - 2 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!

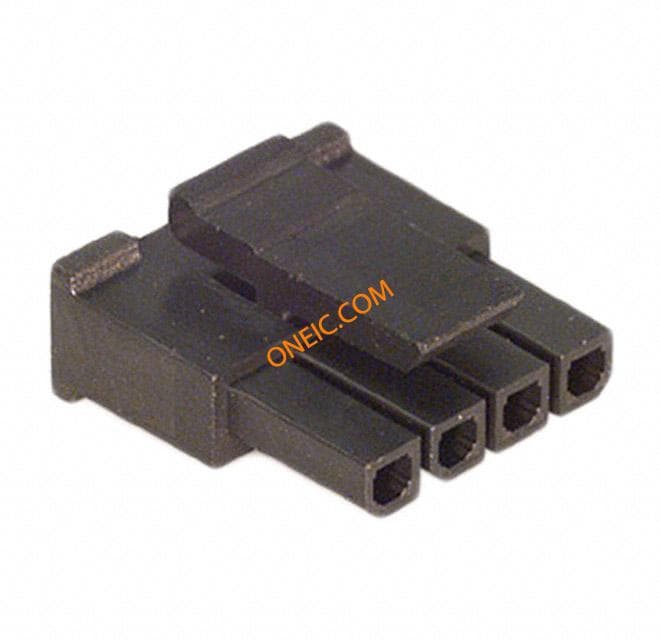

0436450400
molex
Conn Housing RCP 4 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 4POS 3MM SINGLE ROW Plug; wire-board; female; 3mm; PIN:4; w/o terminals; 5A; UL94V-0
0430251200
molex
Conn Housing RCP 12 POS 3mm Crimp ST Cable Mount Bag Conn Housing F 12 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 12POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:12; w/o terminals; 5A; UL94V-0

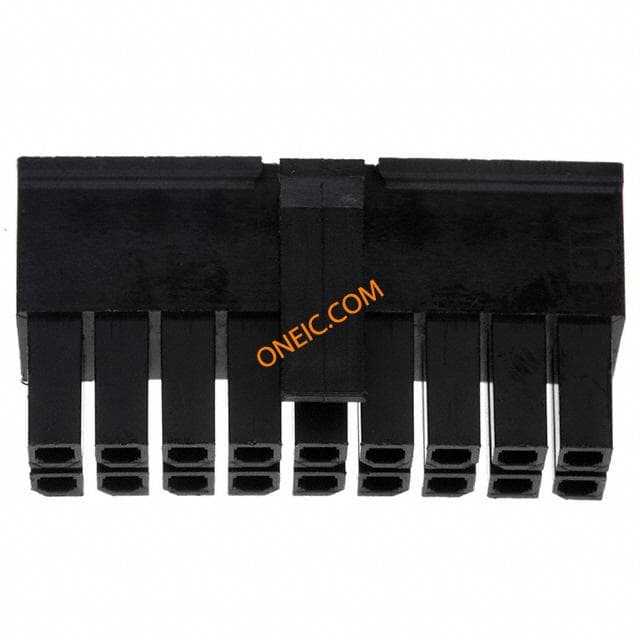

0430251800
molex
Conn Housing RCP 18 POS 3mm Crimp ST Bag Conn Housing F 18 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 18POS 3MM DUAL ROW Plug; wire-board; female; 3mm; PIN:18; w/o terminals; 5A; UL94V-0
0430251600
molex
Conn Housing RCP 16 POS 3mm Crimp ST Cable Mount Bag CONN RECEPT 16POS 3MM DUAL ROW Conn Housing F 16 POS 3mm Crimp ST Cable Mount Bag Plug; wire-board; female; 3mm; PIN:16; w/o terminals; 5A; UL94V-0 Connector
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0430252400
Molex, LLC
. 0430252400 - 24 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0638120800
molex
INSERTION TOOL Insertion Tool For Micro-Fit 3.0 Crimp Terminal INSERTION TOOL 20-30 AWG CRIMP
0638190000
Molex
Hand Crimp Tool TOOL CRIMP 20-30AWG MICROFIT 3.0 Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,05÷0,12mm2,0,2÷0,5mm2

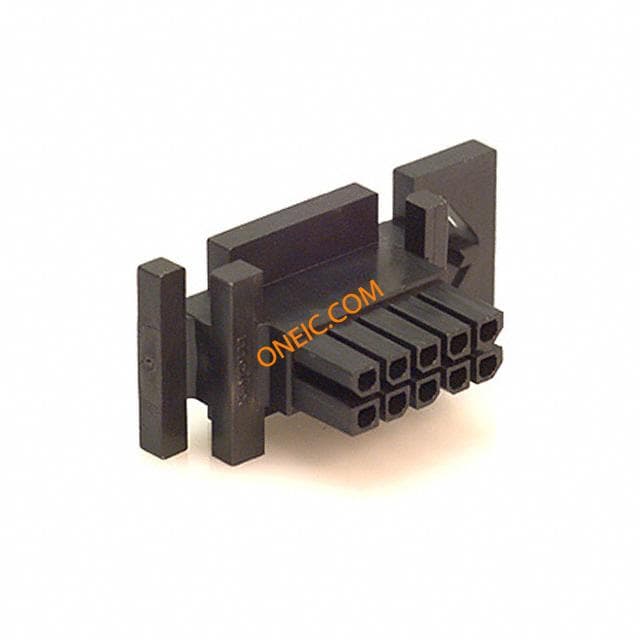

0441331000
Molex
Conn Housing RCP 10 POS 3mm Crimp ST Tray CONN RECEPT 10POS 3MM DUAL ROW
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0430250800
Molex
Conn Housing RCP 8 POS 3mm Crimp ST Bag CONN RECEPT 8POS 3MM VERT DUAL Plug; wire-board; female; 3mm; PIN:8; w/o terminals; 5A; UL94V-0

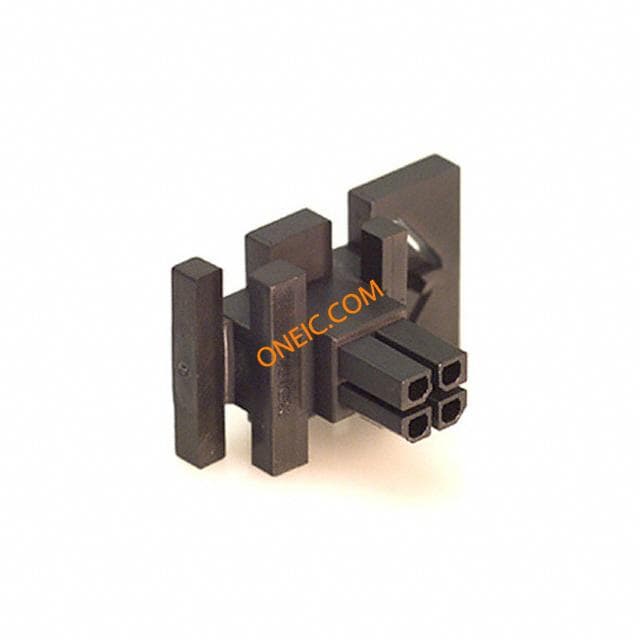

0441330400
Molex
Conn Housing RCP 4 POS 3mm Crimp ST Tray CONN RECEPT 4POS 3MM DUAL ROW

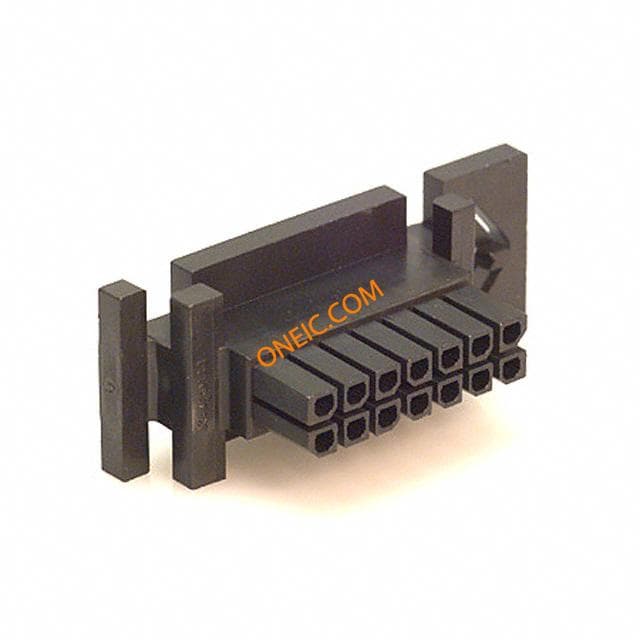

0441331400
Molex, LLC
. 0441331400 - 14 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0436450800
Molex Inc
CONN RECEPT 8POS 3MM SINGLE ROW

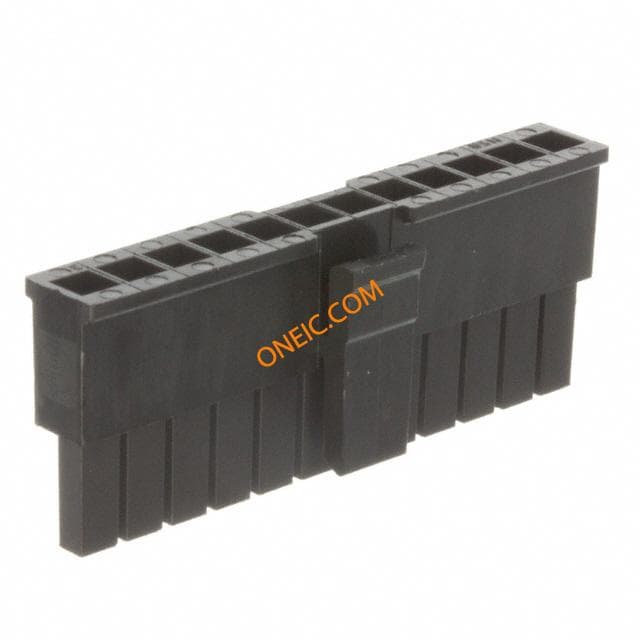

43645-1200
Molex Connector Corporation
CONN RECEPT 12POS 3MM SINGLE ROW Headers & Wire Housings RECEPTACLE SINGLE 12 Conn Housing RCP 12 POS 3mm Crimp ST Bag PLUG & SOCKET CONNECTOR, RCPT, 12POS, 3MM MICROFIT3.0RECEPTACLESGLROW12CKT Female contact housing single row Pitch3 mm Poles 1 x 12 Micro-Fit, 43645-1200, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 12 路 直 母 电缆安装 压接连接器外壳

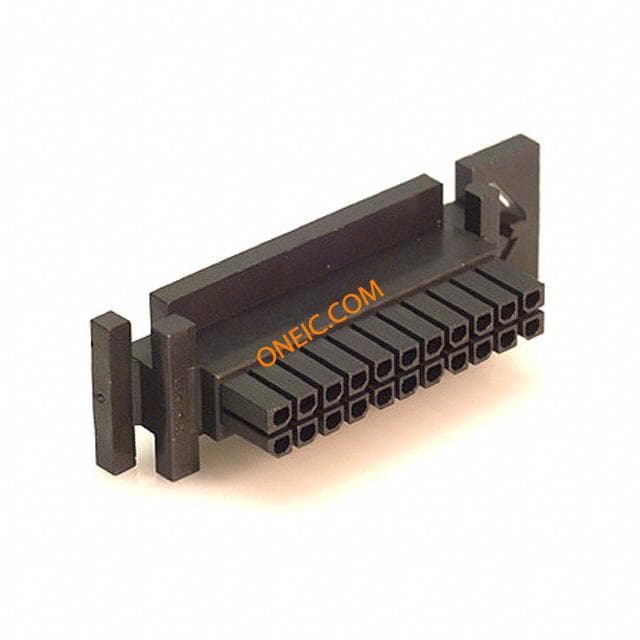

44133-2200
Molex Connector Corporation
CONN RECEPT 22POS 3MM DUAL ROW Headers & Wire Housings 3MM MICRO-FIT Recept. 22 CKT 3.00mm Micro-Fit 3.0 BMI™ Receptacle Housing, Dual Row, Panel Mount, 22 Circuits, PBT Polyester, UL 94V-0

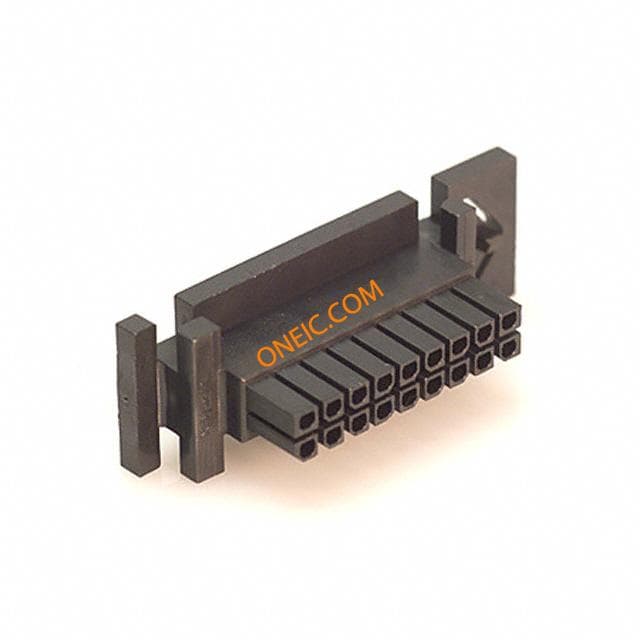

0441331800
