点击放大查看

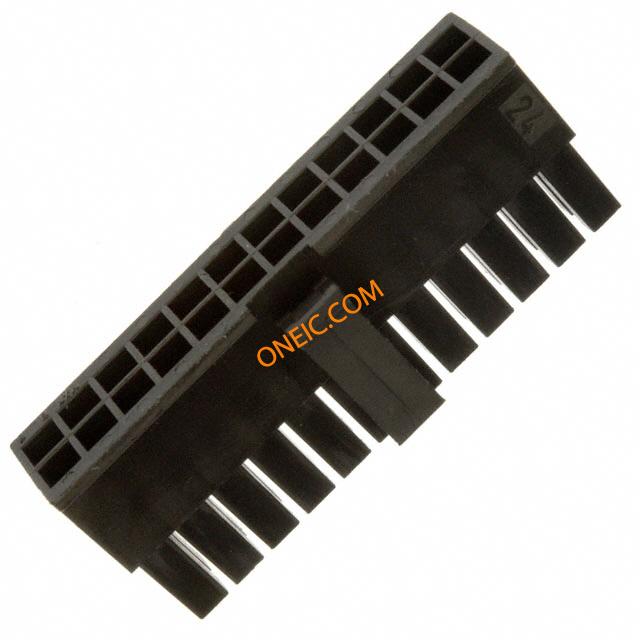

0430252400

制造商	Molex, LLC
描述	. 0430252400 - 24 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	36 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94V-0

电气参数

额定电压	250V	最大额定电流	5/Contact A
最小输入电压	600VDC\|600VAC	最小供电电压	600VDC/600VAC
连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Black	深度	14 mm
间距	0.118" (3.00mm)	高度	11.56 mm
重量	2.5 g	材料（通用）	polyester
钻孔直径	33mm	包装方式	Bag
排间距	0.118" (3.00mm)	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.118" (3.00mm)
柱间距	3mm	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Latch Lock	安装样式	for cable
排数	2	锁定特性	lock
壳体材料	Polyester	总长度	36.85 mm
包装数量	18	尺寸/外形	see
连接器 - 电缆	plug	触点数	24
接触件端接	Crimp	位数	24
第一连接器安装特征	2x12

产品信息

SPG	18	备注	Contacts Not Provided
类型	Housing	连接器性别	F
系列	Micro-Fit 3.0™ 43025	适配器系列	Micro-Fit 3.0
单元数量	1	行业别名	43025-2400, 430252400
输出配置	Free Hanging (In-Line)

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

Micro-Fit Test Summary 12/Aug/2010

PDF 文档

Micro-Fit Resin 20/Aug/2010

PDF 文档

0430252400_CRIMP_HOUSINGS.pdf

PDF 文档

43025-2400

相关型号

0430300003

Molex, LLC

. 0430300003 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!

¥0.4379

详情

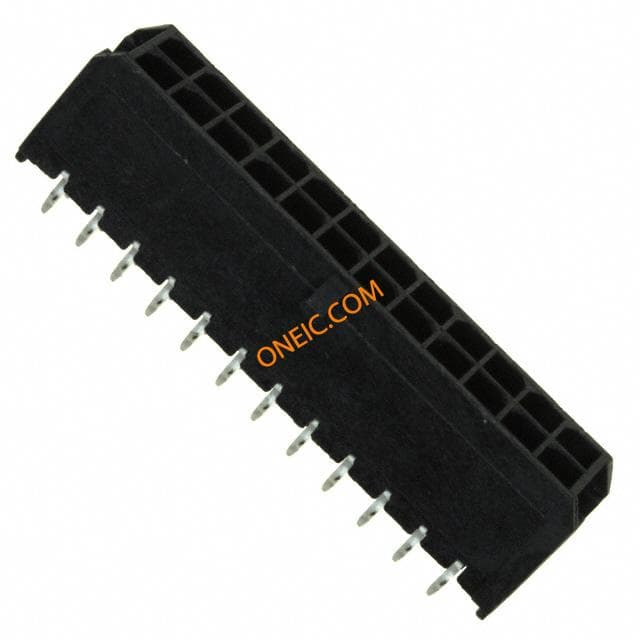

0430452414

Molex, LLC

. 0430452414 - Connector Header Through Hole 24 position 0.118" (3.00mm) from Molex. from now!

¥23.1525

详情

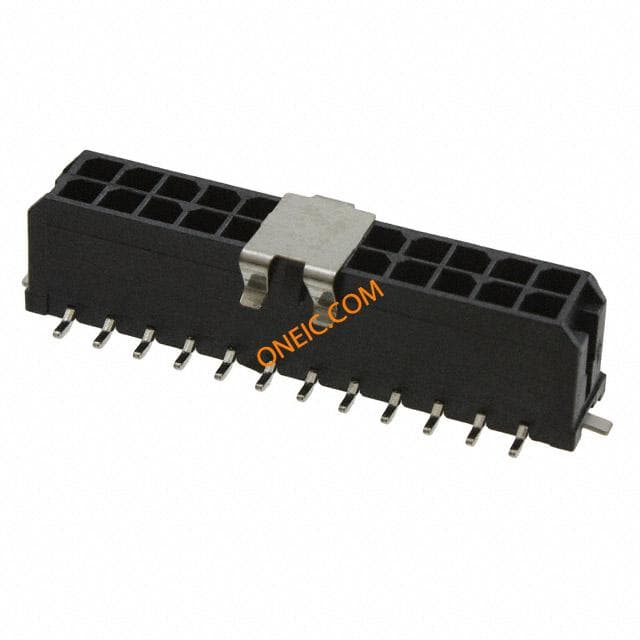

0430452418

molex

Conn Wire to Board HDR 24 POS 3mm Solder ST SMD T/R Conn Wire to Board HDR 24 POS 3mm Solder ST SMD Embossed T/R CONN HEADER 24POS VERT TIN SMD

¥35.6646

详情

0430300001

Molex, LLC

. 0430300001 - Socket Contact Tin 20-24 AWG Crimp Power from Molex. from now!

¥0.2230

详情

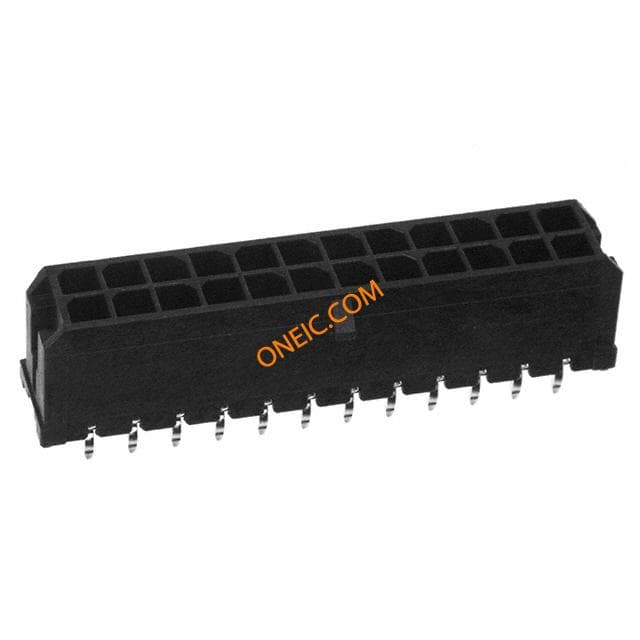

0430452412

molex

Conn Wire to Board HDR 24 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 24POS 3MM VERT TIN

¥16.4648

详情

0430300002

Molex, LLC

. 0430300002 - Socket Contact Gold 20-24 AWG Crimp Power from Molex. from now!

¥0.3536

详情

0430300006

molex

Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 26-30AWG GOLD CRIMP

¥0.3808

详情

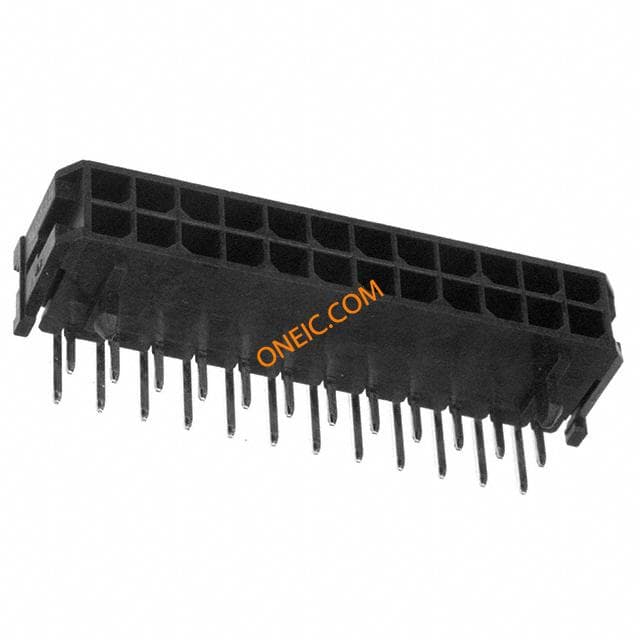

0430452400

molex

Conn Wire to Board HDR 24 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 24POS 3MM R/A TIN Socket; wire-board; male; 3mm; PIN:24; tinned; 5A; UL94V-0; 250V; THT

¥20.8767

详情

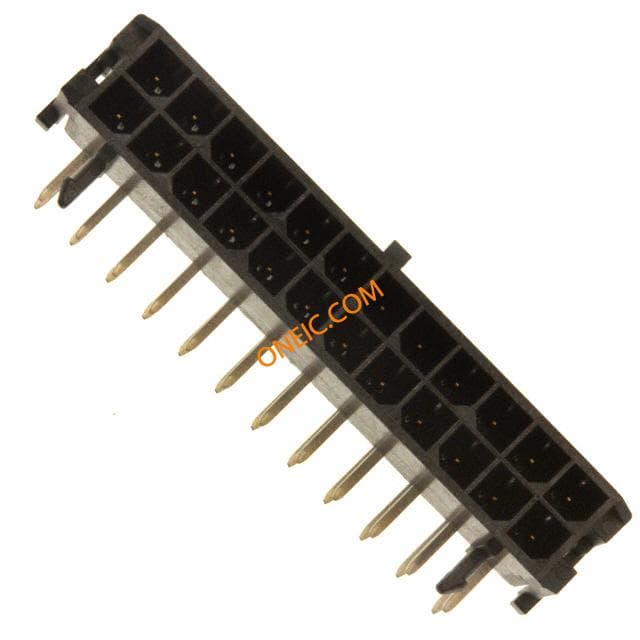

0430452402

molex

Conn Wire to Board HDR 24 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 24POS 3MM R/A GOLD

¥32.8902

详情

0430300008

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG 15GOLD

¥0.6820

详情

0430300009

molex

Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 20-24AWG GOLD Conn Contact F 1 POS Crimp ST Cable Mount Bag Contact; female; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped

¥0.7596

详情

0430300010

molex

Contact F Crimp ST Cable Mount Bag Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 26-30AWG TIN Contact; female; 0.05÷0.128mm2; 26÷30AWG; Micro-Fit 3.0; tinned

¥0.5141

详情

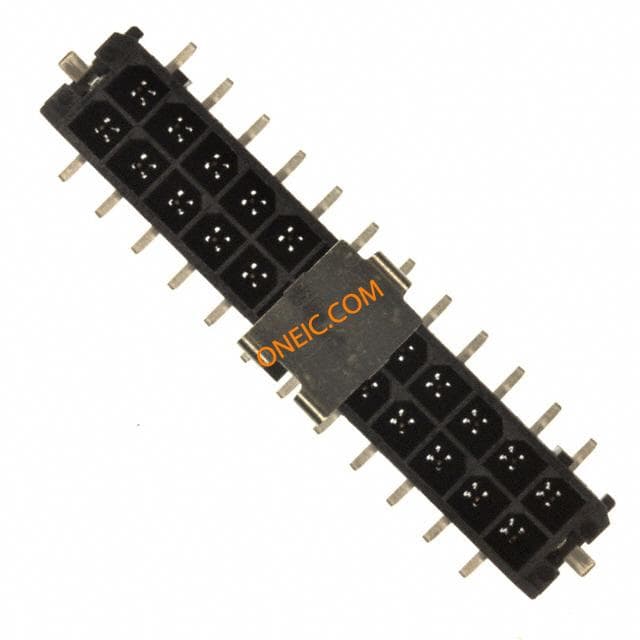

0430452419

Molex

Conn Wire to Board HDR 24 POS 3mm Solder ST SMD Embossed T/R CONN HEADER 24POS 3MM STR SMD AU

¥40.4206

详情

0430452413

Molex

Conn Wire to Board HDR 24 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 24POS 3MM VERT GOLD

¥20.5904

详情

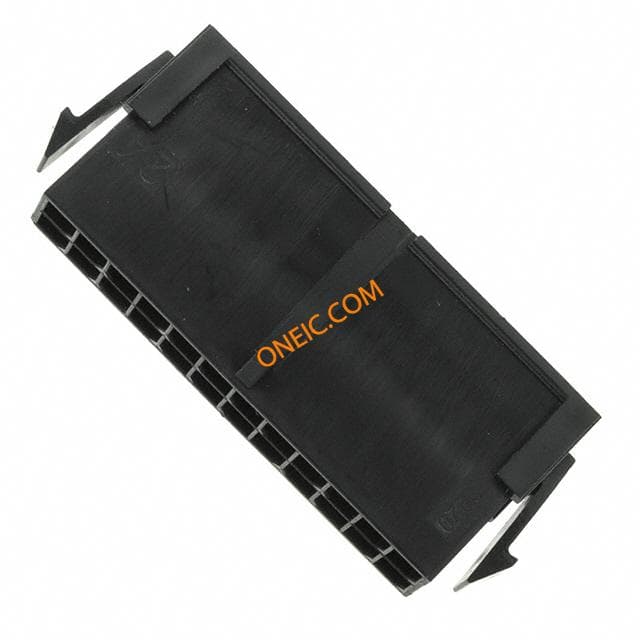

43020-2400
